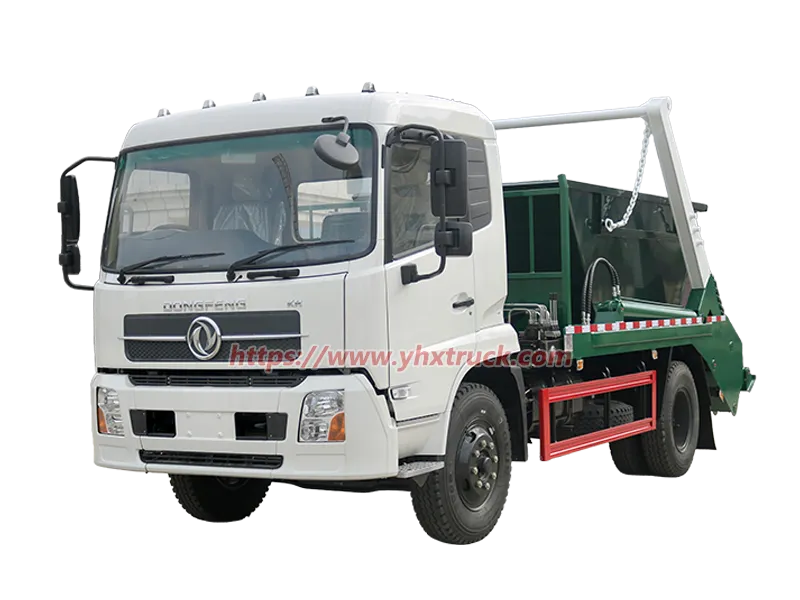

Dongfeng Kinland 12CBM Swing Arm Skip Loader Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

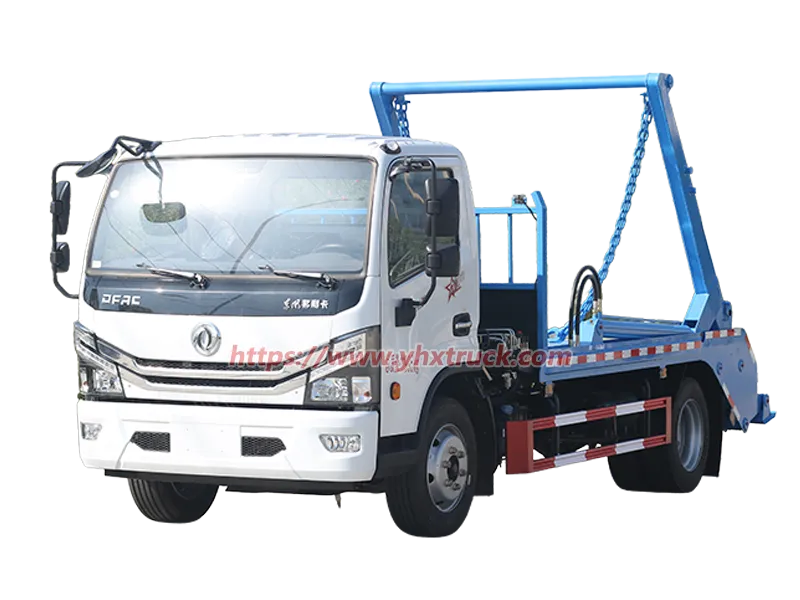

Dongfeng Swing Arm Garbage Truck
General	Chassis Brand	Dongfeng Captain (Duo Li Ka)
	Overall Dimension(L×W×H)	Approx 5995×2200×2800mm
	GVW / Kerb Weight	4495kg / approx 2800kg
	Loading Capacity	3-5m³ / 3-5 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Single-row Standard Cab
	Cab Capacity	2 seats (1 driver + 1 passenger)
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel / Gasoline optional
	Engine Brand	Dongfeng Cummins (Diesel) / Dongan (Gasoline)
	Rated Power	115-130HP/85-96kW
	Displacement	1.6-2.0L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	5-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300mm / 2 axles
	Tyre Specification	7.00R16LT radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	100km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	3-5m³ / 3-5 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-18MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥5 tons, max lifting height ≥3m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 3-5m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

View Less

Introduction

Swing-arm garbage truck (also widely known as a skip loader or roll-off truck) is a specialized sanitation vehicle designed to collect and transport waste using a hydraulically powered hook arm mechanism. Its defining feature is the ability to automatically load, unload, and detach a separate waste container (skip/roll-off bin) from the truck chassis.

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Core Characteristics & Key Details

Detachable Container Design

The truck chassis and waste bin are completely independent. A single truck can serve multiple bins, enabling a continuous "truck moves, bins stay" workflow. This drastically improves collection efficiency, especially for scattered waste points or locations with variable waste volumes.

Hydraulic Hook Arm System

The core working component is the rear-mounted hook arm assembly. Powered by hydraulic cylinders, it performs the full cycle of grabbing, lifting, loading/unloading, and securing the waste bin in about 60 seconds. The system is fast, reliable, and operated from the cab.

Multi-Purpose Versatility

The waste containers can be customized (e.g., with sealed lids, self-dumping capability, corrosion-resistant coatings) to handle not only municipal solid waste but also construction debris, industrial scrap, and other bulk materials.

Typical Applications

It is widely used for waste collection in urban streets, residential communities, factories, and towns. It also serves as an efficient short-haul transport tool for construction and renovation waste, particularly ideal for shuttle operations between transfer stations and dispersed collection points.

Core Product Advantages

One truck can operate with multiple separate waste containers to raise collection efficiency.
Full hydraulic drive ensures quick loading and unloading with simple operation.
Auxiliary support legs keep stable lifting to avoid vehicle tilting.
Sealed bins prevent sewage leakage and secondary environmental pollution.
Compact mechanical structure brings low breakdown rate and economical maintenance.
Widely adaptable for residential quarters, factories, towns and municipal sanitation projects.

2. Working Principle

The whole working principle of Swing-arm garbage truck relies on chassis power transmission, rear hydraulic hook arm linkage, synchronous auxiliary support legs and fully separated waste bin structure. Powered by hydraulic driving force, it realizes automatic bin grabbing, loading, transportation, unloading and detachment.

After driving to waste collection sites, operators align the truck tail with empty waste bins, turn on hydraulic power take-off inside the cab and launch working mode. Bilateral auxiliary support legs extend synchronously to level the chassis, offset gravity deviation and prevent vehicle tilting during heavy-load lifting.

The rear hydraulic hook arm stretches out to lock bin hanging points firmly, then hydraulic cylinders drive the whole assembly to lift and place bins onto chassis bearing beams, and automatic locking buckles fasten bins to avoid sliding during transit. The full loading cycle takes about 60 seconds, with all operations controlled inside the cab.

After arriving at waste transfer stations or disposal yards, operators release bin locks via cab control. The hook arm reverses actions to unload and detach full-load bins. The truck can depart immediately to collect idle bins elsewhere, forming the efficient "truck moves, bins stay" cyclic workflow.

For customized bins equipped with sealed lids and self-dumping function, matched auxiliary hydraulic pipelines can trigger automatic discharging, cutting manual operation workload greatly.

3. Daily Application Scenarios

Consistent with official typical application positioning, Swing-arm garbage truck covers municipal sanitation and construction waste transportation scenarios:

It performs best for decentralized waste collection and variable-volume waste disposal, improving overall sanitation operation efficiency.

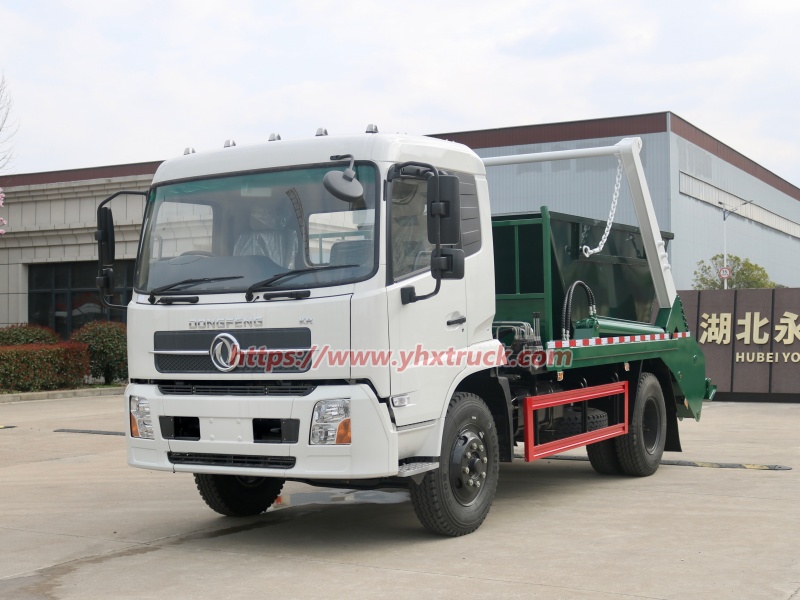

2025-03-15 162309.jpg

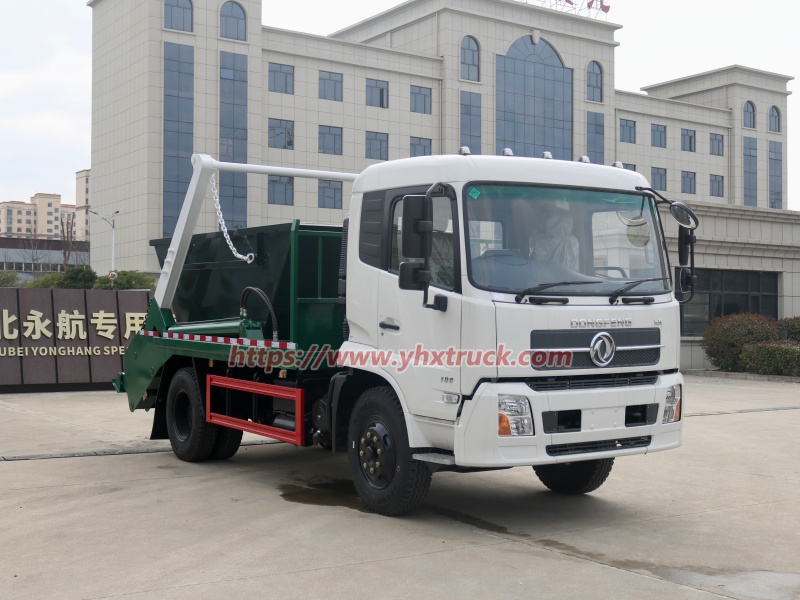

2025-03-15 162240.jpg

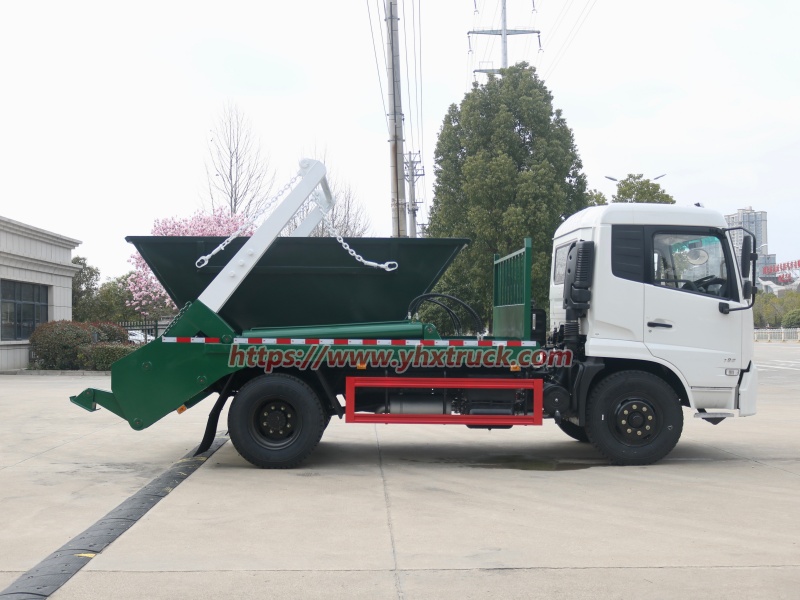

2025-03-15 162214.jpg

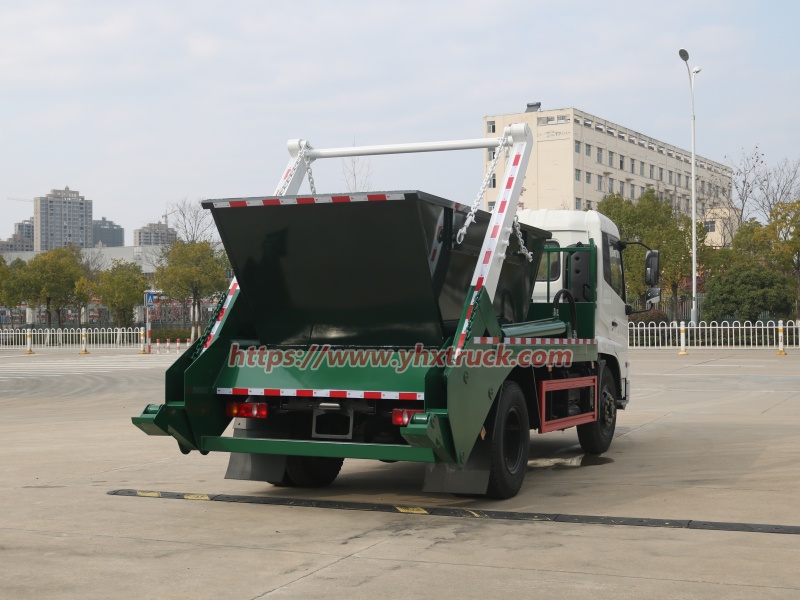

2025-03-15 162158.jpg

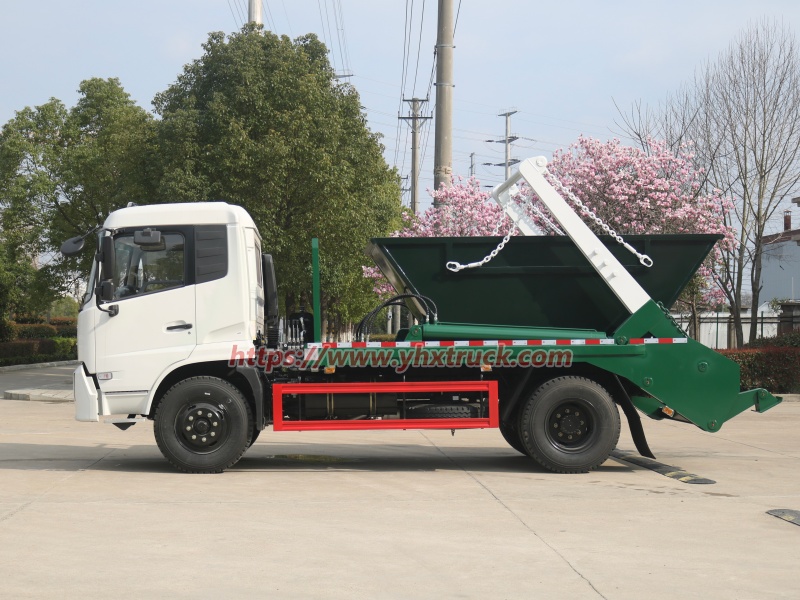

2025-03-15 162026.jpg

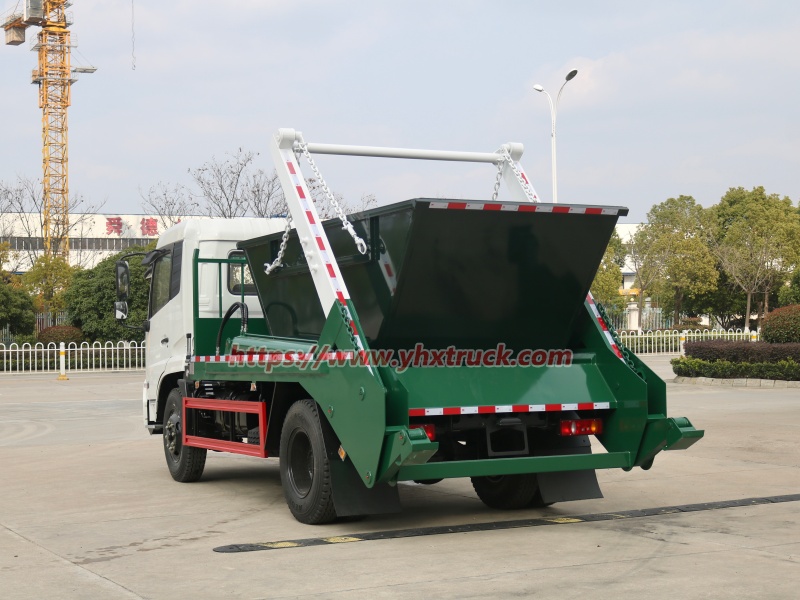

2025-03-15 161955.jpg

4. Comparison with Traditional Models

Urban Sanitation: Daily waste collection for urban streets, residential communities and municipal public areas
Industrial Waste Disposal: Factory production scraps and packaging waste short-distance transportation
Construction Waste Transport: Transfer of building rubble and renovation debris
Sanitation Transfer Operation: Shuttle work between garbage transfer stations and scattered collection points

Compared with integrated garbage trucks: Traditional integral garbage trucks combine carriage and chassis as a whole, requiring long idle waiting for waste loading and causing low efficiency. Swing-arm garbage truck adopts fully detachable bin design to realize non-stop cyclic operation.

Compared with manual hanging bin trucks: Ordinary hanging bin trucks need manual hooking and unloading, bringing high labor cost and hygiene risks. This swing-arm refuse truck realizes full hydraulic automatic operation inside the cab.

Compared with open-type roll-off trucks: Common open skip trucks lead to sewage leakage and odor pollution during driving. Customized sealed bins of swing-arm garbage truck comply with international environmental protection standards.

Compared with refitted Hook Lift Trucks: Modified sanitation vehicles lack calibrated hydraulic system and anti-tilt support legs, with poor safety performance. Standard swing-arm garbage truck equips original matched hydraulic assembly, owning complete export certification.

Dongfeng Swing Arm Garbage Truck
General	Chassis Brand	Dongfeng Captain (Duo Li Ka)
	Overall Dimension(L×W×H)	Approx 5995×2200×2800mm
	GVW / Kerb Weight	4495kg / approx 2800kg
	Loading Capacity	3-5m³ / 3-5 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Single-row Standard Cab
	Cab Capacity	2 seats (1 driver + 1 passenger)
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel / Gasoline optional
	Engine Brand	Dongfeng Cummins (Diesel) / Dongan (Gasoline)
	Rated Power	115-130HP/85-96kW
	Displacement	1.6-2.0L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	5-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300mm / 2 axles
	Tyre Specification	7.00R16LT radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	100km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	3-5m³ / 3-5 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-18MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥5 tons, max lifting height ≥3m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 3-5m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

5. Buying Guide

For overseas sanitation purchasers, select qualified swing-arm garbage trucks based on chassis stability, hydraulic reliability and customized bin configuration:

Reliable Sanitation Chassis：Adopt export-qualified commercial chassis to guarantee stable driving and heavy-load lifting performance.

Standard Hydraulic Hook Arm：Confirm 60s fast loading cycle, cab integrated control and synchronous anti-tilt support legs.

Customized Waste Containers：Select sealed, anti-corrosion or self-dumping bins according to actual waste types.

Complete Export Documents：Check full qualification certificates to smooth overseas customs clearance and vehicle registration.

6. Operation and Maintenance Tips

Standardized operation and daily maintenance can extend vehicle service life, reduce hydraulic faults and guarantee long-term stable operation:

Daily Operation Specifications

Regular Maintenance Advice

Check hydraulic oil level, hook arm lubrication and support leg flexibility before startup; never operate under insufficient hydraulic pressure
Fully extend auxiliary support legs before lifting bins; ban lifting on sloped, hollow and soft ground
Accurately align hook arm and bin hanging points, lock the buckle tightly to prevent bin falling during transportation
Clean sundries on hook arms and bin sealing grooves post-operation to avoid sewage leakage
Control driving speed under 60km/h with loaded bins, avoid sharp turns and emergency brakes

7. Frequently Asked Questions

Q1: What are the aliases of Swing-arm garbage truck?

A1: It is also widely known as a skip loader or roll-off truck, a specialized hydraulic sanitation vehicle.

Replace anti-corrosion hydraulic oil yearly, clean hydraulic filter monthly to prevent pipeline blockage
Add anti-rust lubricant to hook arm joints biweekly to avoid clamping stagnation
Inspect hydraulic sealing rings quarterly, replace aging parts to stop oil leakage
Spray anti-corrosion coating on waste bins every six months to prolong service life
Maintain chassis engine and braking system regularly for stable transit

Q2: What is the core advantage of its container structure?

A2: Chassis and waste bin are completely independent. One single truck can serve multiple bins, realizing efficient "truck moves, bins stay" operation.

Q3: How efficient is the hydraulic hook arm system?

A3: The rear hook arm assembly finishes full grabbing, lifting and locking cycle in around 60 seconds, fully operated inside the cab.

Q4: What kinds of waste can this truck transport?

A4: It transports municipal solid waste, construction debris, industrial scrap and bulk materials, with customizable waste bins.

Q5: What key safety and environmental configurations does it have?

A5: Auxiliary support legs guarantee lifting stability; sealed bins prevent sewage leakage and secondary pollution, with durable compact mechanical structure.

Conclusion

Swing-arm garbage truck is export-specialized sanitation vehicle, also named skip loader or roll-off truck. Equipped with hydraulically powered hook arm mechanism and split bin-chassis structure, it realizes automatic loading, unloading and bin detachment.

It owns three core strengths: detachable container design, high-response hydraulic hook arm system and multi-purpose bin customization. It solves low-efficiency and pollution defects of traditional sanitation trucks, matching six major operational advantages. Suitable for municipal streets, communities, factories and town sanitation projects, it supports short-haul shuttle transportation for construction waste.

With standardized industrial configuration and export qualification, Swing-arm garbage truck removes overseas customs clearance obstacles. It is cost-effective, durable sanitation equipment for global municipal and environmental protection clients.


Dongfeng Swing Arm Garbage Truck
General	Chassis Brand	Dongfeng Captain (Duo Li Ka)
	Overall Dimension(L×W×H)	Approx 5995×2200×2800mm
	GVW / Kerb Weight	4495kg / approx 2800kg
	Loading Capacity	3-5m³ / 3-5 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Single-row Standard Cab
	Cab Capacity	2 seats (1 driver + 1 passenger)
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel / Gasoline optional
	Engine Brand	Dongfeng Cummins (Diesel) / Dongan (Gasoline)
	Rated Power	115-130HP/85-96kW
	Displacement	1.6-2.0L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	5-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300mm / 2 axles
	Tyre Specification	7.00R16LT radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	100km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	3-5m³ / 3-5 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-18MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥5 tons, max lifting height ≥3m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 3-5m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

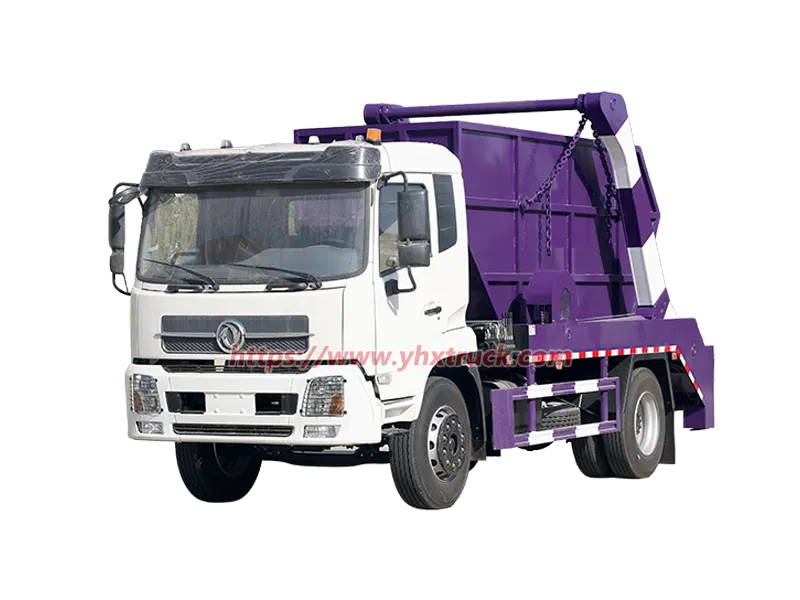

Previous page： Dongfeng 12CBM Swing Arm Skip Loader Garbage Truck
