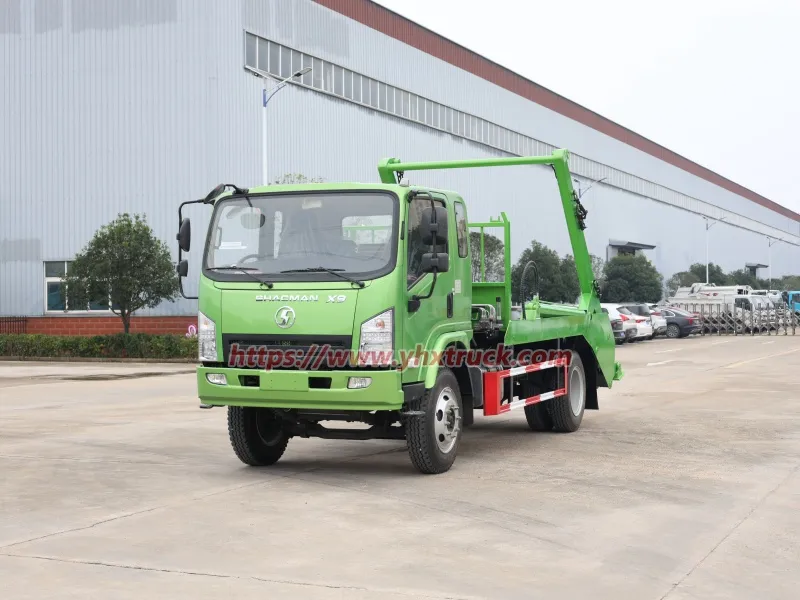

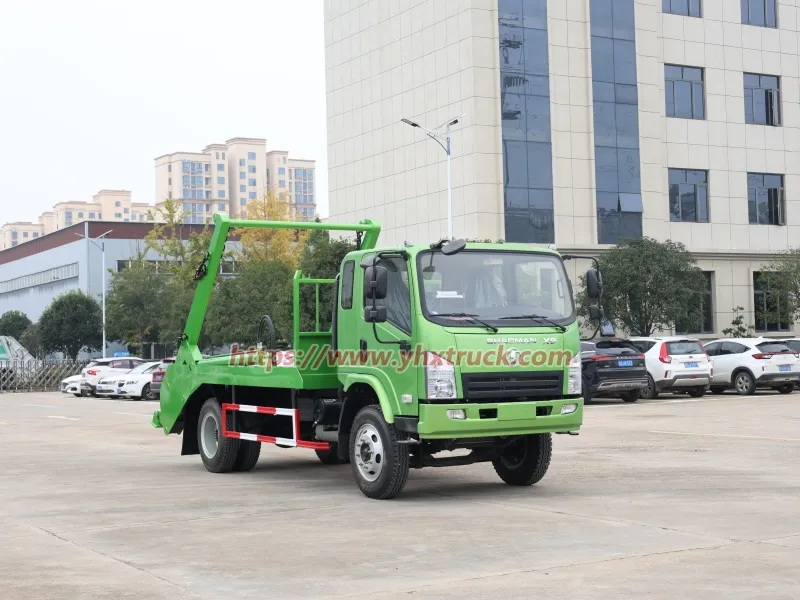

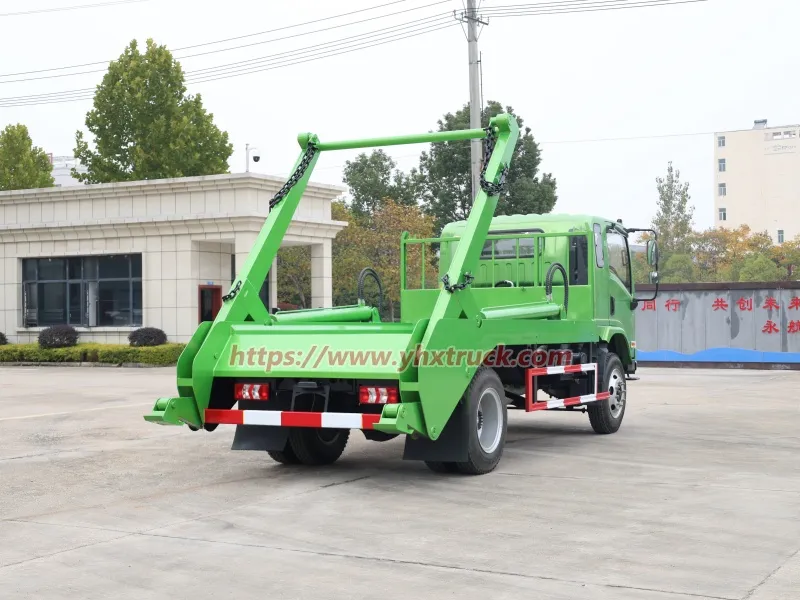

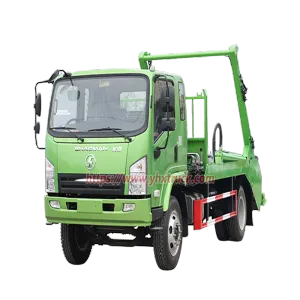

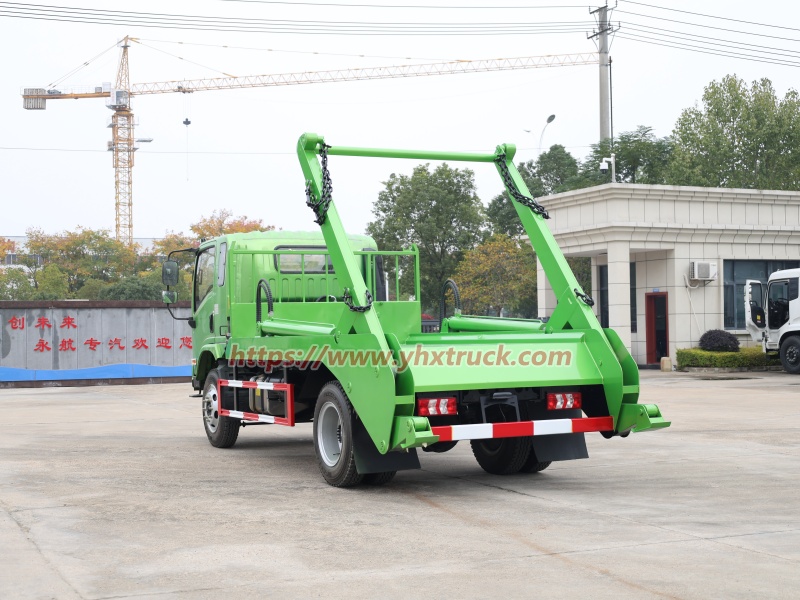

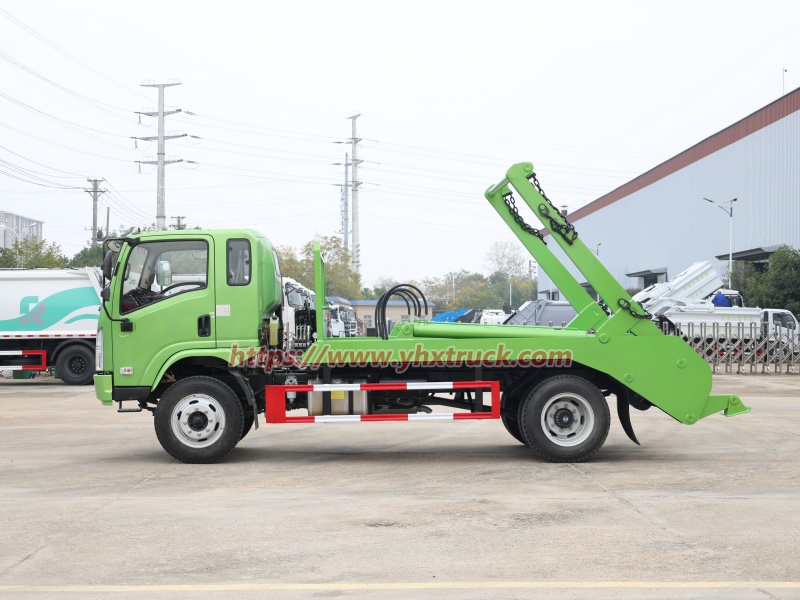

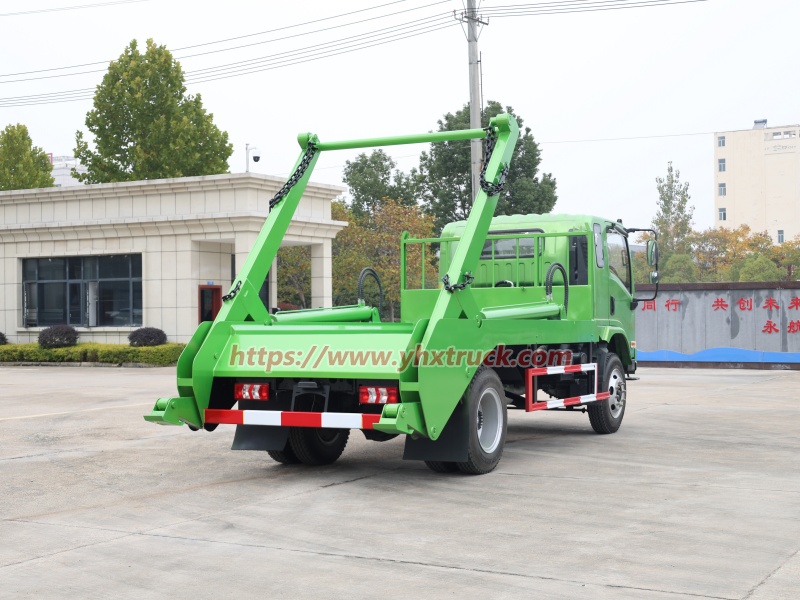

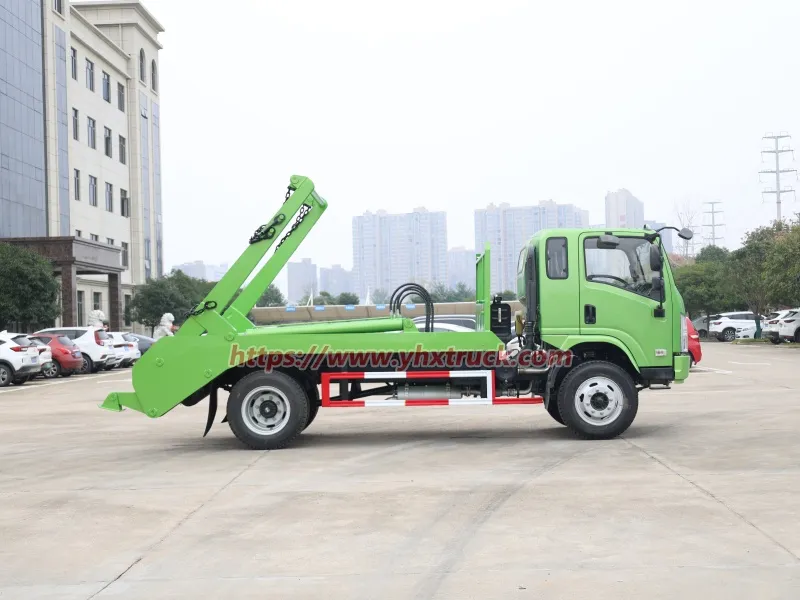

SHACMAN X9 12CBM Swing Arm Skip Loader Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Skip loader garbage truck (12cbm)
General	Chassis Brand	Sagmoto X9 /Shacman Series
	Overall Dimension(L×W×H)	Approx 6800×2400×3100mm
	GVW / Kerb Weight	18000kg / approx 7800kg
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Cummins alternative optional)
	Rated Power	220HP/162kW
	Displacement	6.7L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×2
	Transmission	Fast 8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3800mm / 2 axles
	Tyre Specification	10.00R20 / 11R22.5
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	12cbm (customizable: 10–14cbm)
	Waste Box Material	4–6mm carbon steel
	Rated Lifting Load	8Ton
	Working Cycle Time	≤60s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–20MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint

View Less

Introduction

Skip loader garbage truck also known as swing arm refuse truck, Swing Arm Garbage Truck,or container-type waste collection vehicle.

Definition:

Skip loader garbage is a specialized hydraulic-powered refuse collection vehicle (RCV) mounted on a heavy-duty truck chassis, equipped with a side-mounted hydraulically driven swing arm mechanism with a hook/grabber. It is designed to automatically pick up, lift, rotate, and empty standardized waste bins (skip containers) into the sealed truck body, enabling one truck to serve multiple bins for efficient municipal,residential,and industrial solid waste collection and transportation.

International Common Names:

Swing Arm Refuse Truck

Skip Loader Garbage Truck

Container-Type Waste Collection Vehicle

Hydraulic Swing Arm Waste Truck

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Core Advantages

1. High Collection Efficiency

Adopts full hydraulic automatic operation. It realizes fast bin lifting, dumping and resetting. One truck matches multiple containers for continuous waste collection.

2. Labor and Cost Effective

Supports single-person driving and operation. No manual garbage handling is required, greatly reducing labor and operational costs.

3. Strong Site Adaptability

Compact and flexible structure. It works stably in narrow streets, residential areas, schools and factory zones with high accessibility.

4. Environmental and Sanitary

Fully sealed body and containers prevent sewage leakage, dust and odor diffusion, avoiding secondary pollution.

5. High Operation Safety

Equipped with hydraulic stabilizing legs and hydraulic locking devices. Anti-tipping design ensures stable and safe dumping work.

6. Durable and Low Maintenance

Made of high-strength steel with standardized hydraulic components. It features stable performance, easy maintenance and long service life.

2. Working Principle

The whole working principle of Skip Loader Garbage Truck relies on heavy-duty chassis power output and side-mounted hydraulic swing arm mechanism. Driven by hydraulic power, the hook-equipped swing arm carries out automatic picking, lifting, rotating and dumping actions to load skip containers.

The operator controls all actions via in-cab lever or optional remote controller. Hydraulic stabilizing legs extend before lifting to balance vehicle gravity and prevent tipping. After aligning with waste bins, the swing arm locks bin hanging points firmly, then dumps waste into the sealed truck body.

After waste collection, the truck transports wastes to disposal sites. The whole hydraulic working cycle takes less than 60 seconds. It can leave empty skip containers on collection sites and replace full bins rapidly, forming efficient cyclic waste collection workflow.

3. Daily Application Scenarios

Municipal Sanitation: Daily waste collection on urban narrow roads, downtown streets and public zones
Residential Community Cleaning: Household waste collection in dense residential quarters and villa communities
Industrial Park Service: Production debris, packaging waste disposal for factories and industrial zones
Public Facilities Sanitation: Waste collection for schools, hospitals and scenic spots

4. Comparison with Traditional Models

Vs Integrated Garbage Trucks: Conventional integrated sanitation trucks adopt fixed carriage structure, requiring long downtime for waste loading. Skip loader garbage truck matches multiple independent containers to realize non-stop cyclic operation.

Vs Ordinary Hook Lift Trucks: Most hook lift trucks install rear-mounted hydraulic arms, occupying large space; side swing arm design of skip loader saves chassis space, boasts higher flexibility in narrow roads.

Vs Manual Waste Collection: Manual cleaning requires massive labor cost and faces hygiene risks. This hydraulic skip loader supports single-driver full operation, cutting labor input greatly.

Skip loader garbage truck (12cbm)
General	Chassis Brand	Sagmoto X9 /Shacman Series
	Overall Dimension(L×W×H)	Approx 6800×2400×3100mm
	GVW / Kerb Weight	18000kg / approx 7800kg
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Cummins alternative optional)
	Rated Power	220HP/162kW
	Displacement	6.7L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×2
	Transmission	Fast 8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3800mm / 2 axles
	Tyre Specification	10.00R20 / 11R22.5
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	12cbm (customizable: 10–14cbm)
	Waste Box Material	4–6mm carbon steel
	Rated Lifting Load	8Ton
	Working Cycle Time	≤60s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–20MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint

5. Buying Guide

For global sanitation purchasers, verify core configurations before purchasing qualified skip loader garbage trucks:

Heavy-Duty Chassis: Adopt certified heavy-duty commercial chassis to guarantee bearing capacity and road adaptability.

Side Hydraulic Swing Arm: Check original matched hydraulic swing arm with hook grabber, stable full-cycle automatic operation.

Sealed Containers: Choose anti-corrosion sealed skip bins to comply with international environmental protection requirements.

Safety Devices: Equip hydraulic stabilizing legs and anti-drop locking devices to eliminate dumping risks.

Complete Export Certificates: Provide full sets of export documents for overseas customs clearance and vehicle registration.

6. Operation and Maintenance Tips

Standard operation and routine maintenance can protect hydraulic components, extend vehicle lifespan and reduce operation failures:

Daily Operation Specifications

Inspect hydraulic oil pressure and swing arm lubrication before startup; forbid overload dumping
Extend hydraulic stabilizing legs fully before bin lifting to prevent vehicle tipping
Align swing arm hook with bin hanging points accurately to avoid bin falling off
Operate hydraulic system gently, prevent abrupt action to protect hydraulic cylinders
Clean bin sealing grooves after operation to guarantee sealing performance

Regular Maintenance Advice

Replace hydraulic oil every 12 months, clean hydraulic filter regularly
Lubricate swing arm rotation joints biweekly to avoid jamming
Check hydraulic sealing rings monthly to prevent oil leakage
Repaint anti-rust coating on bins and swing arms to resist corrosion
Calibrate hydraulic locking device quarterly to ensure operational safety

7. Frequently Asked Questions

Q1: What are official international names of this sanitation vehicle?

A1: Its universal names include Skip Loader Garbage Truck, Swing Arm Refuse Truck, Container-Type Waste Collection Vehicle and Hydraulic Swing Arm Waste Truck.

Q2: What is the biggest difference from ordinary garbage trucks?

A2: It adopts side-mounted hydraulic swing arm structure and detachable skip containers, realizing full-automatic hydraulic operation, with higher efficiency and site adaptability.

Q3: Does it support single-person operation?

A3: Yes. The whole picking, lifting and dumping process can be finished by one driver inside the cab, no extra labor required.

Q4: How to avoid secondary pollution during transportation?

A4: Equipped with fully sealed truck body and skip containers, it blocks sewage leakage, dust and odor diffusion to realize eco-friendly transportation.

Q5: What safety configurations are equipped?

A5: It is fitted with hydraulic stabilizing legs and hydraulic locking devices, plus anti-tipping hydraulic program to guarantee dumping safety.

Conclusion

Skip Loader Garbage Truck (also named Swing Arm Refuse Truck, container-type waste collection vehicle) is a professional hydraulic sanitation vehicle mounted on heavy-duty chassis. Featured with side hydraulic swing arm mechanism, it realizes automatic skip bin handling and waste transportation.

Integrated with high efficiency, labor cost saving, flexible accessibility, environmental protection and operational safety, this vehicle solves defects of low efficiency, labor-intensive work and pollution risks of traditional sanitation equipment. It fits municipal, residential, industrial and public sanitation scenarios perfectly.

With standardized hydraulic components and export-compliant configurations, it is reliable, easy-maintenance sanitation equipment for global environmental protection and municipal clients.


Skip loader garbage truck (12cbm)
General	Chassis Brand	Sagmoto X9 /Shacman Series
	Overall Dimension(L×W×H)	Approx 6800×2400×3100mm
	GVW / Kerb Weight	18000kg / approx 7800kg
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Cummins alternative optional)
	Rated Power	220HP/162kW
	Displacement	6.7L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×2
	Transmission	Fast 8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3800mm / 2 axles
	Tyre Specification	10.00R20 / 11R22.5
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	12cbm (customizable: 10–14cbm)
	Waste Box Material	4–6mm carbon steel
	Rated Lifting Load	8Ton
	Working Cycle Time	≤60s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–20MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint
