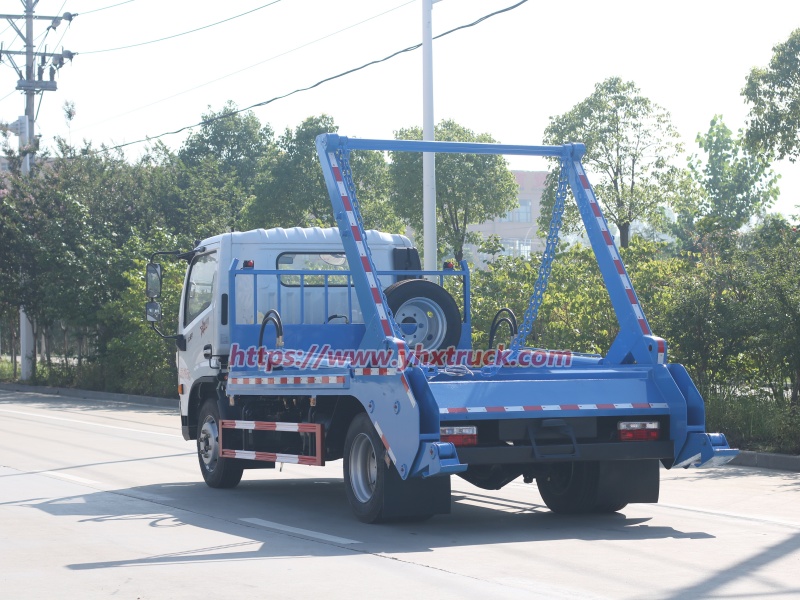

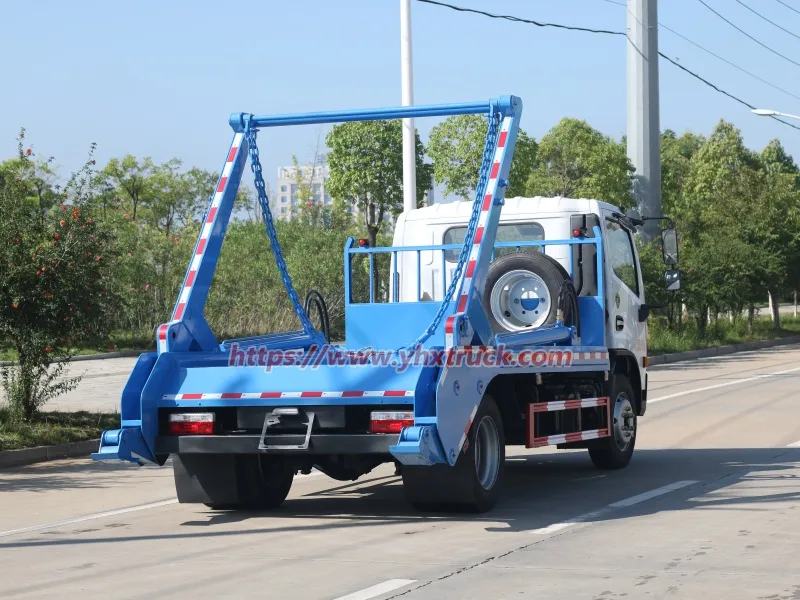

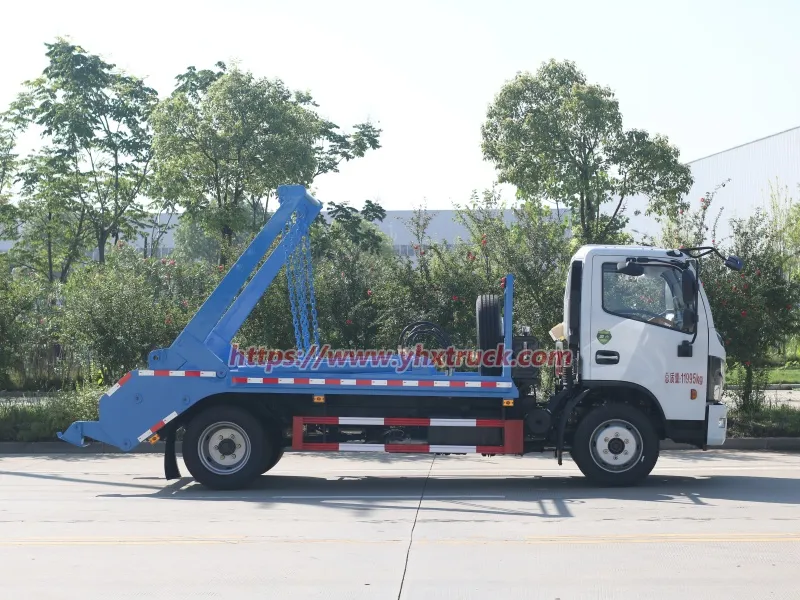

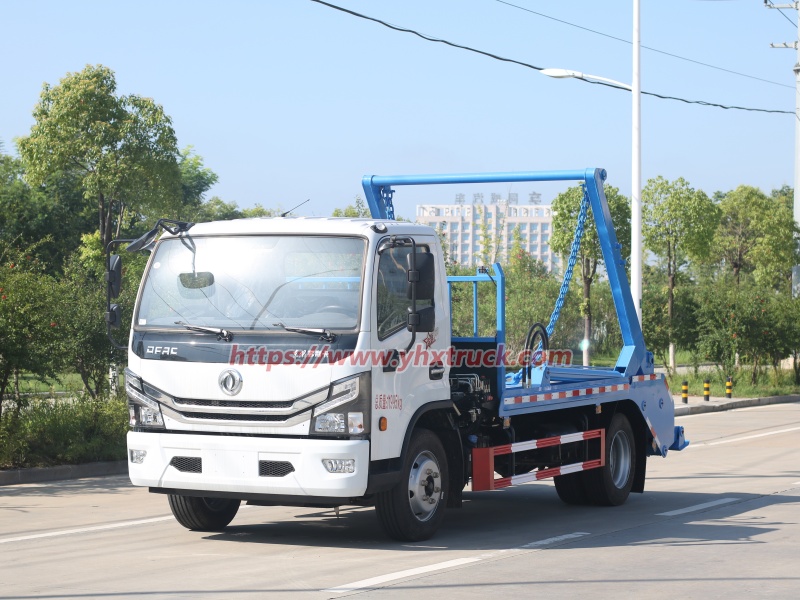

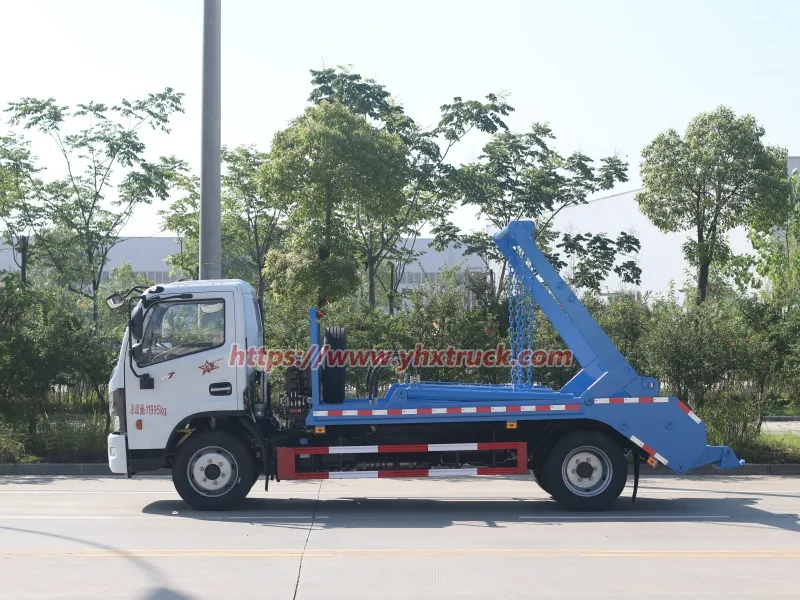

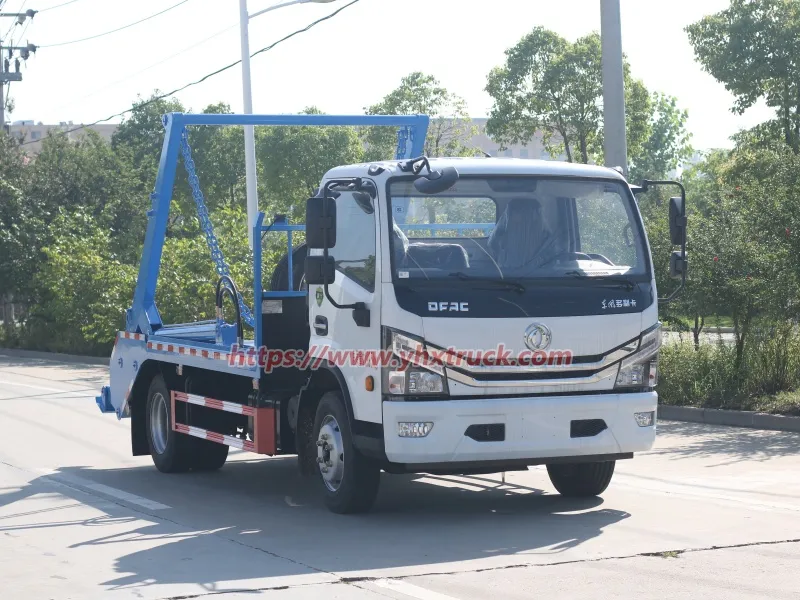

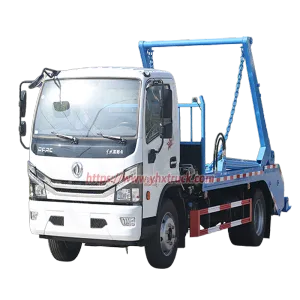

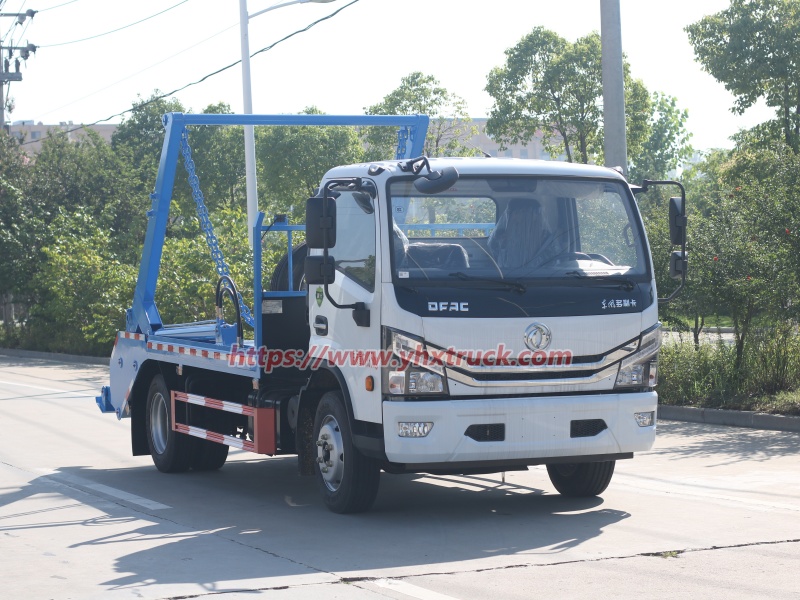

Dongfeng Dolica Swing Arm Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Dongfeng Swing Arm Garbage Truck
General	Chassis Brand	Dongfeng Captain (Duo Li Ka)
	Overall Dimension(L×W×H)	Approx 5995×2200×2800mm
	GVW / Kerb Weight	4495kg / approx 2800kg
	Loading Capacity	3-5m³ / 3-5 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Single-row Standard Cab
	Cab Capacity	2 seats (1 driver + 1 passenger)
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel / Gasoline optional
	Engine Brand	Dongfeng Cummins (Diesel) / Dongan (Gasoline)
	Rated Power	115-130HP/85-96kW
	Displacement	1.6-2.0L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	5-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300mm / 2 axles
	Tyre Specification	7.00R16LT radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	100km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	3-5m³ / 3-5 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-18MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥5 tons, max lifting height ≥3m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 3-5m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

View Less

Introduction

Dongfeng Swing Arm Garbage Truck (also widely known as a skip loader or roll-off truck) is a specialized sanitation vehicle designed to collect and transport waste using a hydraulically powered hook arm mechanism. Its defining feature is the ability to automatically load, unload, and detach a separate waste container (skip/roll-off bin) from the truck chassis. With standardized Dongfeng commercial chassis, mature hydraulic hook arm assembly and customizable waste bins, this export sanitation truck balances operating efficiency and driving stability. It is applicable for municipal cleaning, industrial waste clearance and construction residue transportation, compliant with international sanitation machinery export regulations.

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Dongfeng Swing arm garbage truck is an export-special container-type sanitation vehicle, commonly called skip loader or roll-off truck in global sanitation industry. It takes two major components: genuine Dongfeng chassis and detachable waste skip bin, forming an independent split-type structure, different from traditional integrated garbage trucks with fixed carriages. It concludes three core characteristics: detachable container design, reliable hydraulic hook arm system and multi-purpose operational versatility.

Detachable Container Design: The truck chassis and waste bin are completely independent. A single Dongfeng swing arm garbage truck can serve multiple separate bins, enabling a continuous "truck moves, bins stay" working workflow. This structural design drastically improves garbage collection efficiency, especially suitable for scattered waste points or working locations with variable waste volumes.

Hydraulic Hook Arm System: The core working component is the rear-mounted hook arm assembly. Powered by high-efficiency hydraulic cylinders, the whole mechanism finishes the full working cycle including grabbing, lifting, loading, unloading and locking the waste bin in about 60 seconds. The whole hydraulic system is stable and responsive, and all operations can be controlled directly inside the driving cab, requiring no external manual labor.

Multi-Purpose Versatility: The matched waste containers support diversified customized configurations, including sealed anti-leakage lids, hydraulic self-dumping capability and corrosion-resistant outer coatings. The modified bins can handle not only daily municipal solid waste, but also construction debris, industrial scrap and other bulk materials, realizing multi-scenario waste transportation with one vehicle.

Core Product Advantages

High Collection Efficiency：One truck can operate with multiple separate waste containers to realize cyclic transportation, greatly raise overall garbage collection efficiency
Simple Hydraulic Operation：Full hydraulic drive hook arm system ensures fast loading and unloading, integrated cab control with easy operation steps
Lifting Safety Protection：Equipped with hydraulic auxiliary support legs, keep stable lifting posture and effectively avoid vehicle tilting risks
Environmental Protection Performance：Customized sealed waste bins completely prevent sewage leakage and secondary environmental pollution
Low Operating Cost：Compact mechanical structure brings low breakdown rate, spare parts are universal with economical daily maintenance
Wide Applicability：Highly adaptable for residential quarters, industrial factories, rural towns and municipal sanitation engineering projects

The whole working logic of Dongfeng Swing arm garbage truck relies on Dongfeng chassis power output, rear hydraulic hook arm linkage system, synchronous auxiliary support legs and split-type waste bin structure. Based on independent bin design and full hydraulic driving principle, it realizes automatic bin hooking, loading, transportation, unloading and separation.

2. Working Principle

The automatic waste collection and transportation workflow of Hydraulic Swing Arm Waste Truck relies on chassis power output, rear hydraulic telescopic swing arm assembly, synchronous support leg mechanism, bin locking device and detachable waste bin structure. Centered on three core keypoints: arm roll / hook lift, separate waste bin and hydraulic lifting system, it realizes automated bin hooking, hoisting, loading, transportation and unloading via closed-loop hydraulic control.

After driving to the waste collection site, the operator aligns the truck rear end with the placed empty waste bin, switches on the hydraulic power take-off inside the cab and activates arm roll working mode. The hydraulic system drives bilateral auxiliary support legs to extend vertically and land stably, calibrating chassis horizontal posture to offset gravity deviation caused by heavy bin loading.

Subsequently, the hydraulic hook arm stretches out and locks the reserved hanging point of the waste bin mechanically. After finishing safety locking confirmation, the hydraulic cylinder pushes the hook arm to lift and flip the waste bin backward steadily, placing the whole bin on the chassis bearing beam and activating the automatic locking buckle to fix the bin firmly to prevent sliding during road transportation. The whole grabbing and loading process is finished within 60 seconds.

After transporting waste to disposal stations or transfer stations, the operator releases the bin locking mechanism via cab control. The hydraulic hook arm reverses the lifting action to put down the full-load waste bin and detach the hook structure. The truck can drive away immediately to collect empty bins at other sites, realizing the efficient "truck moves, bins stay" cyclic operation mode. For sealed and self-dumping bins, the auxiliary hydraulic pipeline can trigger bin opening and dumping actions to finish automatic waste discharging.

3. Daily Application Scenarios

According to official product positioning, this Dongfeng skip loader has clear and practical application scenarios. It is widely purchased by overseas municipal sanitation departments, property management companies, manufacturing factories and construction contractors:

Urban Daily Sanitation: Regular waste collection for urban streets, residential communities, urban parks and public service areas
Residential Community Cleaning: Decentralized household waste recycling, old community renovation garbage clearance, regular domestic garbage transfer of residential quarters
Industrial Waste Transport: Production scraps, packaging waste and workshop bulk residue collection for manufacturing factories
Construction Waste Haulage: Short-haul transportation of building rubble, decoration debris and renovation waste
Sanitation Transfer Station Operation: Shuttle transportation between garbage transfer stations and dispersed waste collection points

Different from traditional integrated garbage trucks that must wait for on-site loading, this arm roll truck separates transportation and waste loading work. Sanitation staff can pre-place empty bins at scattered waste points, and the truck shuttles back and forth for replacement and transportation, greatly cutting idle waiting time and improving overall sanitation operating efficiency.

4. Comparison with Traditional Models

Compared with integrated garbage trucks: Traditional integral garbage trucks integrate carriage and chassis as a whole, the vehicle has to stop and wait for waste filling, resulting in low working efficiency. Dongfeng Swing arm garbage truck adopts fully detachable bin design to launch continuous cyclic operation.

Compared with manual hanging bin sanitation trucks: Basic hanging bin trucks require workers to hook and unload bins manually, with high labor intensity and sanitation exposure risks. This hydraulic arm roll truck realizes full-cab automatic operation, reducing manpower cost and improving working safety.

Compared with ordinary non-sealed roll-off trucks: Early arm roll trucks adopt open bins, causing sewage dripping, odor leakage and road secondary pollution during driving. This export model supports fully sealed customized bins to meet international environmental protection emission requirements.

Compared with ordinary low-power Hook Lift Trucks: Low-grade sanitation vehicles adopt unstable hydraulic circuits without synchronous support legs, easy to tilt during heavy-load lifting. Dongfeng original chassis matches calibrated hydraulic hook arm system, with higher operation stability and export qualification.

Dongfeng Swing arm garbage truck
General	Chassis Brand	Dongfeng Captain (Duo Li Ka)
	Overall Dimension(L×W×H)	Approx 5995×2200×2800mm
	GVW / Kerb Weight	4495kg / approx 2800kg
	Loading Capacity	3-5m³ / 3-5 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Single-row Standard Cab
	Cab Capacity	2 seats (1 driver + 1 passenger)
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel / Gasoline optional
	Engine Brand	Dongfeng Cummins (Diesel) / Dongan (Gasoline)
	Rated Power	115-130HP/85-96kW
	Displacement	1.6-2.0L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	5-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300mm / 2 axles
	Tyre Specification	7.00R16LT radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	100km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	3-5m³ / 3-5 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-18MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥5 tons, max lifting height ≥3m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 3-5m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

5. Buying Guide

For overseas sanitation departments, environmental protection companies and construction teams purchasing roll-off garbage trucks, prioritize chassis reliability, hydraulic safety performance and bin expandable configurations:

Adopt Genuine Dongfeng Chassis：Select original Dongfeng sanitation chassis, guarantee stable transit performance and heavy-load lifting bearing capacity.

Verify Standard Hydraulic Hook Arm：Confirm 60s full loading cycle, cab integrated operation and synchronous auxiliary support leg configuration.

Match Customized Waste Containers：Choose sealed bins for municipal domestic waste; select thickened anti-wear bins for construction debris; equip self-dumping structure for large-volume waste disposal.

Check Environmental Protection Configuration：Prioritize anti-leakage sealing and anti-corrosion coating to avoid cross-region environmental inspection risks.

Complete Export Certification：Verify full sets of vehicle qualification and environmental protection documents to ensure barrier-free overseas registration and customs clearance.

6. Operation and Maintenance Tips

This Hydraulic Swing Arm Waste Truck adopts standardized hydraulic telescopic arm and mature chassis structure, with strong environmental adaptability and long service life. Standardized daily operation and maintenance can cut hydraulic faults, reduce overseas operating costs and retain export validity:

Daily Operation Specifications

Check hydraulic oil level, hook arm lubrication status and support leg flexibility before daily startup; prohibit operation with insufficient hydraulic pressure
Extend bilateral auxiliary support legs completely before lifting waste bins; forbid bin loading on hollow, sloped and soft ground to prevent tipping
Align hook arm and bin hanging points accurately, confirm mechanical locking buckle is fastened before transportation to avoid bin falling during driving
Clean bin sealing grooves and hook arm sundries after each operation to prevent hard debris from scratching sealing parts and causing sewage leakage
Control driving speed below 60km/h with full-load waste bins, avoid sharp turning and emergency braking to guarantee transportation stability

Regular Maintenance Advice

Replace dedicated anti-corrosion hydraulic oil every 12 months, clean hydraulic oil filter monthly to block dust and sewage impurities from blocking pipelines
Add anti-rust lubricant to hook arm rotating joints and locking parts biweekly to prevent jamming caused by sewage corrosion
Inspect support leg hydraulic sealing rings quarterly, replace aging accessories to prevent oil leakage and unbalanced lifting
Clean waste bins and conduct anti-corrosion spraying every six months, extend service life of customized sanitation containers
Maintain Dongfeng chassis braking and power system regularly to ensure long-distance stable shuttle transportation

Scientific daily maintenance can cut hydraulic system failure risks, reduce overseas after-sales cost, and keep vehicle sanitation emission and export certification valid permanently.

7. Frequently Asked Questions

Q1: What are the other names of Dongfeng Swing arm garbage truck?

A1: It is also widely known as a skip loader or roll-off truck, a specialized hydraulic sanitation vehicle for waste collection and transportation.

Q2: What is the core advantage of its container structure?

A2: The truck chassis and waste bin are completely independent. A single truck can serve multiple bins, enabling continuous "truck moves, bins stay" workflow to boost collection efficiency.

Q3: How efficient is the hydraulic hook arm system?

A3: The rear-mounted hydraulic hook arm assembly completes the whole grabbing, lifting, loading and locking cycle in about 60 seconds, operated totally from the cab with stable performance.

Q4: What kinds of waste can this truck transport?

A4: It transports municipal solid waste, construction debris, industrial scrap and other bulk materials. Waste bins can be customized with sealed lids, self-dumping function and corrosion-resistant coatings.

Q5: What key safety and environmental configurations does it have?

A5: It is equipped with auxiliary support legs to prevent vehicle tilting during lifting; matched with sealed waste bins to avoid sewage leakage and secondary pollution, with low-failure compact mechanical structure.

Conclusion

Dongfeng Swing arm garbage truck is export-grade specialized sanitation vehicle, also named skip loader or roll-off truck, designed for global waste collection and transportation work. Powered by hydraulically driven hook arm mechanism, it adopts fully detachable bin-chassis split structure, realizing automatic loading, unloading and bin separation. Relying on three core strengths: independent container design, high-efficiency hydraulic hook arm system and multi-purpose customization versatility, it solves low-efficiency and polluting defects of traditional sanitation vehicles.

It realizes high-efficiency cyclic operation via one-truck-multi-bins mode, adopts full hydraulic control to simplify loading and unloading steps, and equips safety supporting legs to eliminate lifting tilting risks. The detachable sealed waste bins effectively block sewage leakage and secondary pollution, while streamlined mechanical structure lowers failure rate and daily maintenance expenditure. Flexible for urban communities, industrial factories and rural sanitation collection, this container-type waste truck owns multiple internationally recognized names, facilitating global trade and local vehicle registration.

With complete export qualification and universal sanitation configuration, Hydraulic Swing Arm Waste Truck removes overseas customs clearance and road registration obstacles. Balancing operational efficiency, working safety and environmental protection performance, it is cost-effective sanitation equipment for global municipal and environmental protection clients, delivering stable, eco-friendly waste transfer solutions.


Dongfeng Swing Arm Garbage Truck
General	Chassis Brand	Dongfeng Captain (Duo Li Ka)
	Overall Dimension(L×W×H)	Approx 5995×2200×2800mm
	GVW / Kerb Weight	4495kg / approx 2800kg
	Loading Capacity	3-5m³ / 3-5 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Single-row Standard Cab
	Cab Capacity	2 seats (1 driver + 1 passenger)
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel / Gasoline optional
	Engine Brand	Dongfeng Cummins (Diesel) / Dongan (Gasoline)
	Rated Power	115-130HP/85-96kW
	Displacement	1.6-2.0L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	5-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300mm / 2 axles
	Tyre Specification	7.00R16LT radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	100km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	3-5m³ / 3-5 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-18MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥5 tons, max lifting height ≥3m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 3-5m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts
