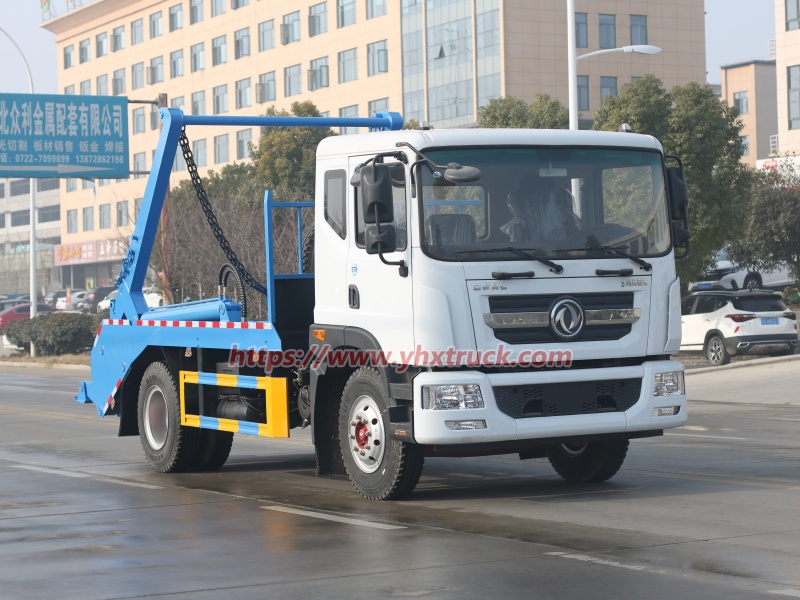

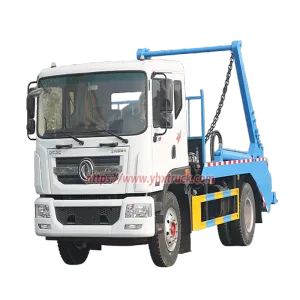

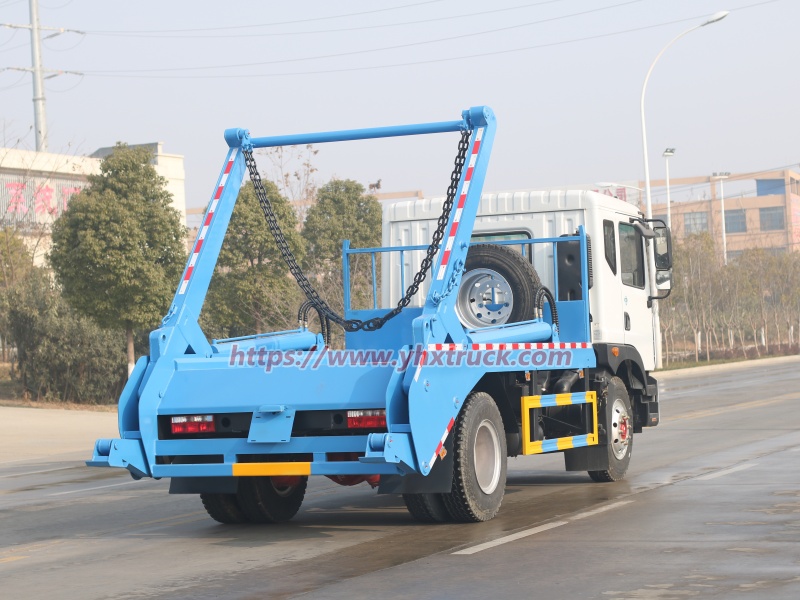

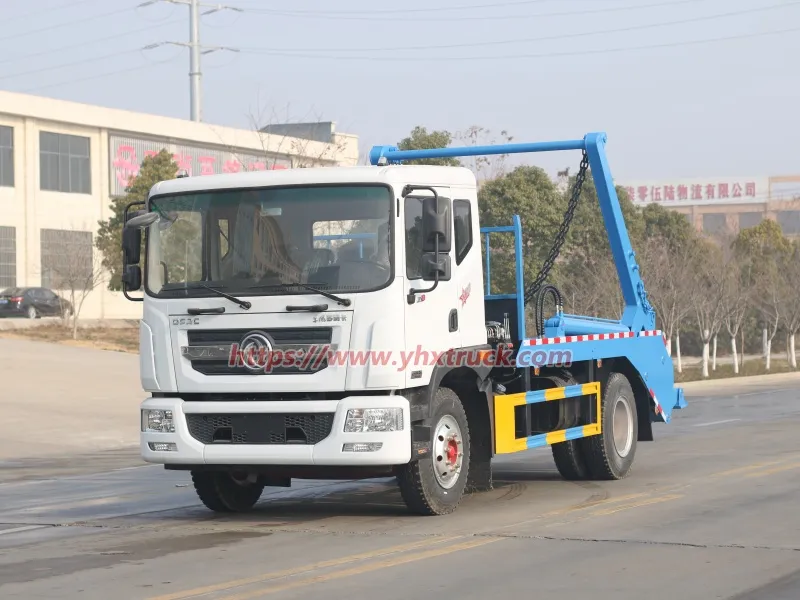

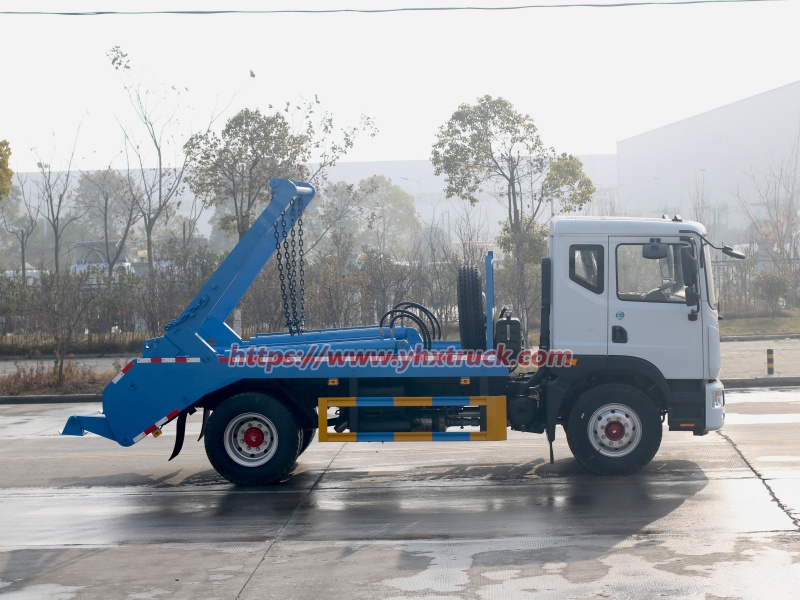

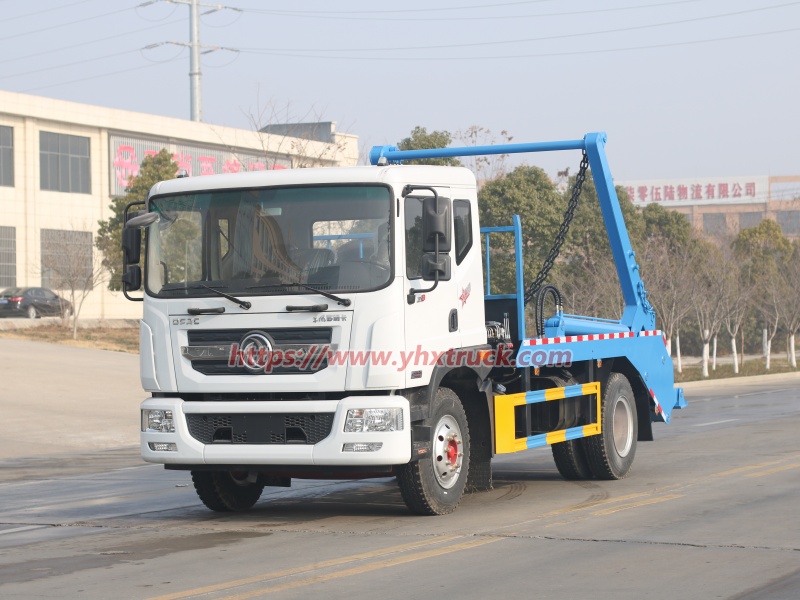

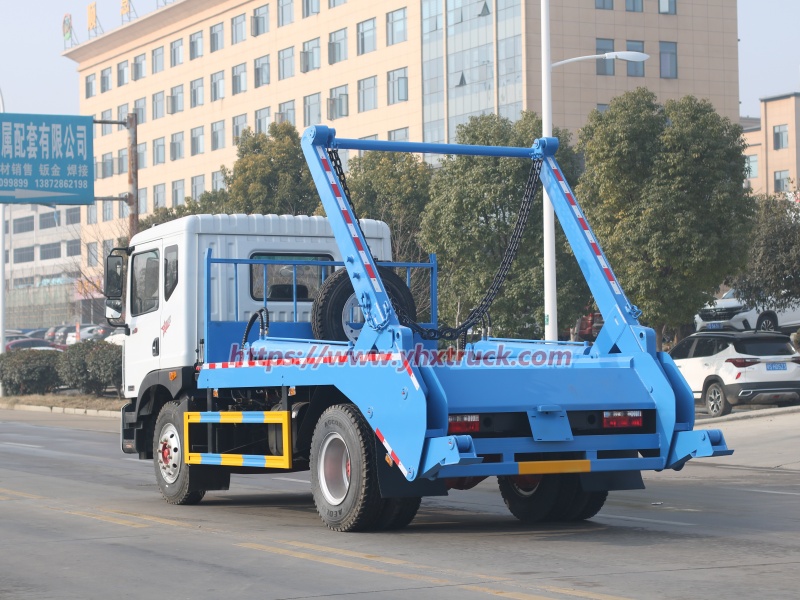

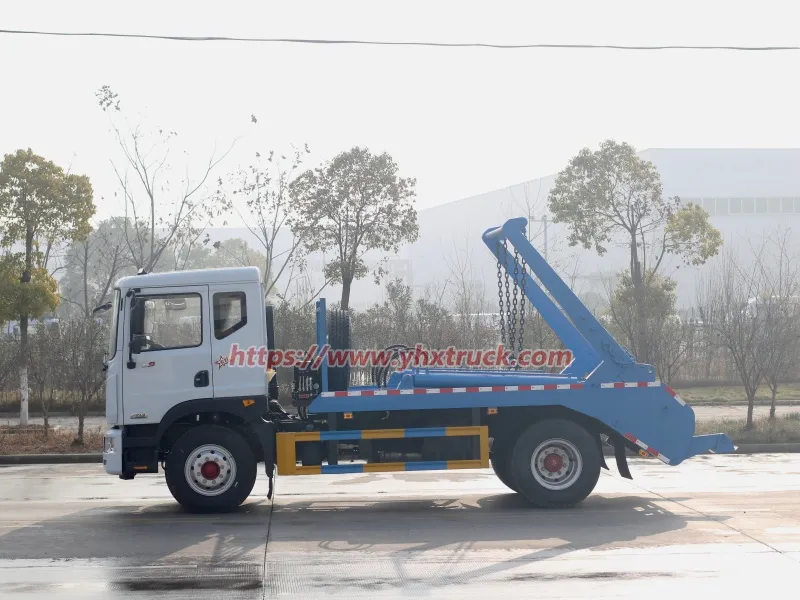

Dongfeng D9 Swing Arm Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Dongfeng Swing arm refuse truck
General	Chassis Brand	Dongfeng D9
	Overall Dimension(L×W×H)	Approx 7000×2400×3000mm
	GVW / Kerb Weight	11995kg / approx 5800kg
	Loading Capacity	5-8m³ / 5-8 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Sleeper Cab (Row-and-a-half)
	Cab Capacity	2 seats (1 driver + 1 passenger) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Dongfeng Cummins / Yuchai (alternative optional)
	Rated Power	160-190HP/118-140kW
	Displacement	3.8-4.5L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6/8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3950mm / 2 axles (4500mm optional)
	Tyre Specification	8.25R20 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	5-8m³ / 5-8 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥8 tons, max lifting height ≥3.5m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 5-8m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

View Less

Introduction

Dongfeng Swing arm refuse truck (also widely known as a skip loader or roll-off truck) is a specialized sanitation vehicle designed to collect and transport waste using a hydraulically powered hook arm mechanism. Its defining feature is the ability to automatically load, unload, and detach a separate waste container (skip/roll-off bin) from the truck chassis. Equipped with mature Dongfeng chassis and industrial-grade hydraulic hook arm system, this export sanitation vehicle meets global municipal sanitation standards, suitable for daily waste collection and engineering residue short-haul transportation.

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Dongfeng Swing arm refuse truck is an export-oriented container-type sanitation vehicle, globally named skip loader or roll-off truck. It consists of genuine Dongfeng heavy-duty chassis and detachable waste skip bin, different from traditional integrated garbage trucks with fixed carriages. It includes three standardized core characteristics: detachable container design, reliable hydraulic hook arm system and multi-purpose operational versatility.

Detachable Container Design: The truck chassis and waste bin are completely independent. A single truck can serve multiple bins, enabling a continuous "truck moves, bins stay" workflow. This design drastically improves waste collection efficiency, especially suitable for scattered waste points or locations with variable waste volumes.

Hydraulic Hook Arm System: The core working component is the rear-mounted hook arm assembly. Powered by hydraulic cylinders, it performs the full cycle of grabbing, lifting, loading/unloading, and securing the waste bin in about 60 seconds. The whole hydraulic system is fast, stable and reliable, and all operations can be finished directly from the driving cab.

Multi-Purpose Versatility: The matched waste containers support diversified customized configurations, including sealed lids, self-dumping capability and corrosion-resistant coatings. Customized bins can handle not only municipal solid waste, but also construction debris, industrial scrap and other bulk materials to realize multi-scenario waste transportation.

Core Product Advantages

High Collection Efficiency：One truck can operate with multiple separate waste containers to raise garbage collection efficiency
Easy Hydraulic Operation：Full hydraulic drive ensures quick loading and unloading with simple cab operation
Lifting Stability：Auxiliary support legs keep stable lifting posture and effectively avoid vehicle tilting
Eco-Friendly Performance：Matching sealed waste bins prevent sewage leakage and secondary environmental pollution
Cost-Saving Maintenance：Compact mechanical structure brings low breakdown rate and economical daily maintenance
Wide Adaptability：Suitable for residential quarters, factories, towns and all kinds of municipal sanitation projects

2. Working Principle

The whole working principle of Dongfeng Swing arm refuse truck relies on Dongfeng chassis power transmission, rear hydraulic hook arm linkage system, synchronous auxiliary support legs and fully separated waste bin structure. Powered by hydraulic driving force, it realizes automatic bin grabbing, loading, transportation, unloading and detachment.

After driving to waste collection sites, operators align the truck tail with empty waste bins, turn on hydraulic power take-off inside the cab and launch working mode. Bilateral auxiliary support legs extend synchronously to level the chassis, offset gravity deviation and prevent vehicle tilting during heavy-load lifting.

The rear hydraulic hook arm stretches out to lock bin hanging points firmly, then hydraulic cylinders drive the whole assembly to lift and place bins onto chassis bearing beams, and automatic locking buckles fasten bins to avoid sliding during transit. The full loading cycle takes about 60 seconds, with all operations controlled inside the cab.

After arriving at waste transfer stations or disposal yards, operators release bin locks via cab control. The hook arm reverses actions to unload and detach full-load bins. The truck can depart immediately to collect idle bins elsewhere, forming the efficient "truck moves, bins stay" cyclic workflow.

For customized bins equipped with sealed lids and self-dumping function, matched auxiliary hydraulic pipelines can trigger automatic discharging, cutting manual operation workload greatly.

3. Daily Application Scenarios

Dongfeng Swing arm refuse truck fits diversified sanitation scenarios, widely adopted by overseas municipal administrations, property management teams, manufacturing factories and construction contractors:

Urban Daily Sanitation: Regular waste collection for urban streets, residential communities, urban parks and public service areas
Residential Community Cleaning: Decentralized household waste recycling, old community renovation garbage clearance
Industrial Waste Transport: Factory production scraps, packaging waste and industrial bulk residues transportation
Construction Waste Haulage: Short-haul transfer of building rubble and decoration debris
Sanitation Transfer Station Operation: Shuttle transportation between transfer stations and scattered waste collection points

It is specially applicable for scattered waste points and variable-volume waste disposal, delivering stable short-haul waste transportation capacity for municipal and engineering projects.

4. Comparison with Traditional Models

Compared with integrated garbage trucks: Traditional integral garbage trucks combine carriage and chassis as a whole, requiring long idle waiting for waste loading and causing low efficiency. Dongfeng Swing arm refuse truck adopts fully detachable bin design to realize non-stop cyclic operation.

Compared with manual hanging bin trucks: Ordinary hanging bin trucks need manual hooking and unloading, bringing high labor cost and hygiene risks. This swing arm refuse truck realizes full hydraulic automatic operation inside the cab.

Compared with open-type roll-off trucks: Common open skip trucks lead to sewage leakage and odor pollution during driving. Customized sealed bins of Dongfeng model comply with international environmental protection standards.

Compared with refitted Hook Lift Trucks: Modified sanitation vehicles lack calibrated hydraulic system and anti-tilt support legs, with poor safety performance. Genuine Dongfeng chassis matches original hydraulic assembly, owning complete export certification.

Dongfeng Swing arm refuse truck
General	Chassis Brand	Dongfeng D9
	Overall Dimension(L×W×H)	Approx 7000×2400×3000mm
	GVW / Kerb Weight	11995kg / approx 5800kg
	Loading Capacity	5-8m³ / 5-8 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Sleeper Cab (Row-and-a-half)
	Cab Capacity	2 seats (1 driver + 1 passenger) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Dongfeng Cummins / Yuchai (alternative optional)
	Rated Power	160-190HP/118-140kW
	Displacement	3.8-4.5L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6/8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3950mm / 2 axles (4500mm optional)
	Tyre Specification	8.25R20 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	5-8m³ / 5-8 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥8 tons, max lifting height ≥3.5m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 5-8m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

5. Buying Guide

For overseas sanitation purchasers, select qualified swing arm refuse trucks based on chassis stability, hydraulic reliability and customized bin configuration:

Adopt Genuine Dongfeng Chassis：Original export chassis guarantees stable driving and heavy-load lifting performance.

Verify Standard Hydraulic Hook Arm：Confirm 60s fast loading cycle, cab integrated control and synchronous anti-tilt support legs.

Select Matched Waste Bins：Customize sealed, anti-corrosion or self-dumping bins according to actual waste types.

Complete Export Documents：Check full qualification certificates to smooth overseas customs clearance and vehicle registration.

6. Operation and Maintenance Tips

Scientific operation and daily maintenance can extend vehicle service life, cut hydraulic faults and maintain export validity of Dongfeng Swing arm refuse truck:

Daily Operation Specifications

Regular Maintenance Advice

Check hydraulic oil level, hook arm lubrication and support leg flexibility before startup; never operate under insufficient hydraulic pressure
Fully extend auxiliary support legs before lifting bins; ban lifting on sloped, hollow and soft ground
Accurately align hook arm and bin hanging points, lock the buckle tightly to prevent bin falling during transportation
Clean sundries on hook arms and bin sealing grooves post-operation to avoid sewage leakage
Control driving speed under 60km/h with loaded bins, avoid sharp turns and emergency brakes

Standard maintenance greatly reduces after-sales breakdown risks, stabilizing long-term overseas sanitation operation.

7. Frequently Asked Questions

Replace anti-corrosion hydraulic oil yearly, clean hydraulic filter monthly to prevent pipeline blockage
Add anti-rust lubricant to hook arm joints biweekly to avoid clamping stagnation
Inspect hydraulic sealing rings quarterly, replace aging parts to stop oil leakage
Spray anti-corrosion coating on waste bins every six months to prolong service life
Maintain Dongfeng chassis engine and braking system regularly for stable transit

Q1: What are the aliases of Dongfeng Swing arm refuse truck?

A1: It is also widely known as a skip loader or roll-off truck, a specialized hydraulic sanitation vehicle.

Q2: What is the core advantage of its container structure?

A2: Chassis and waste bin are completely independent. One single truck can serve multiple bins, realizing efficient "truck moves, bins stay" operation.

Q3: How efficient is the hydraulic hook arm system?

A3: The rear hook arm assembly finishes full grabbing, lifting and locking cycle in around 60 seconds, fully operated inside the cab.

Q4: What kinds of waste can this truck transport?

A4: It transports municipal solid waste, construction debris, industrial scrap and bulk materials, with customizable waste bins.

Q5: What key safety and environmental configurations does it have?

A5: Auxiliary support legs guarantee lifting stability; sealed bins prevent sewage leakage and secondary pollution, with durable compact mechanical structure.

Conclusion

Dongfeng Swing arm refuse truck is export-specialized sanitation vehicle, also named skip loader or roll-off truck. Equipped with hydraulic hook arm driving mechanism and split bin-chassis structure, it realizes automatic loading, unloading and bin detachment.

Combining detachable container design, high-speed hydraulic hook arm system and multi-purpose bin customization, it solves low-efficiency and pollution defects of traditional sanitation trucks. Featuring high operation efficiency, easy hydraulic control, lifting stability and low maintenance cost, it adapts to municipal, industrial and rural sanitation scenarios.

With complete export certification, Dongfeng Swing arm refuse truck eliminates overseas customs clearance and registration obstacles. It is cost-effective sanitation equipment for global environmental protection and municipal clients.


Dongfeng Swing arm refuse truck
General	Chassis Brand	Dongfeng D9
	Overall Dimension(L×W×H)	Approx 7000×2400×3000mm
	GVW / Kerb Weight	11995kg / approx 5800kg
	Loading Capacity	5-8m³ / 5-8 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Sleeper Cab (Row-and-a-half)
	Cab Capacity	2 seats (1 driver + 1 passenger) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Dongfeng Cummins / Yuchai (alternative optional)
	Rated Power	160-190HP/118-140kW
	Displacement	3.8-4.5L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6/8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3950mm / 2 axles (4500mm optional)
	Tyre Specification	8.25R20 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	5-8m³ / 5-8 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥8 tons, max lifting height ≥3.5m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 5-8m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

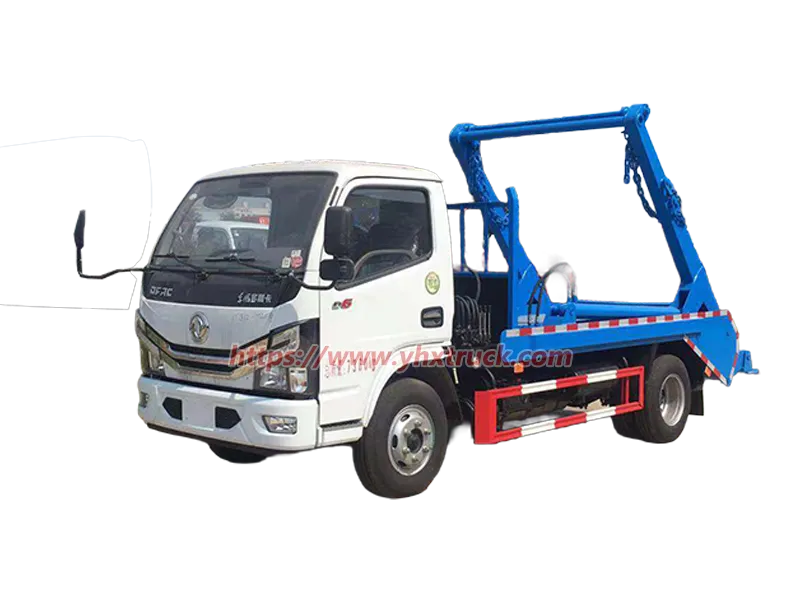

Previous page： Dongfeng Dolica Swing Arm Garbage Truck
