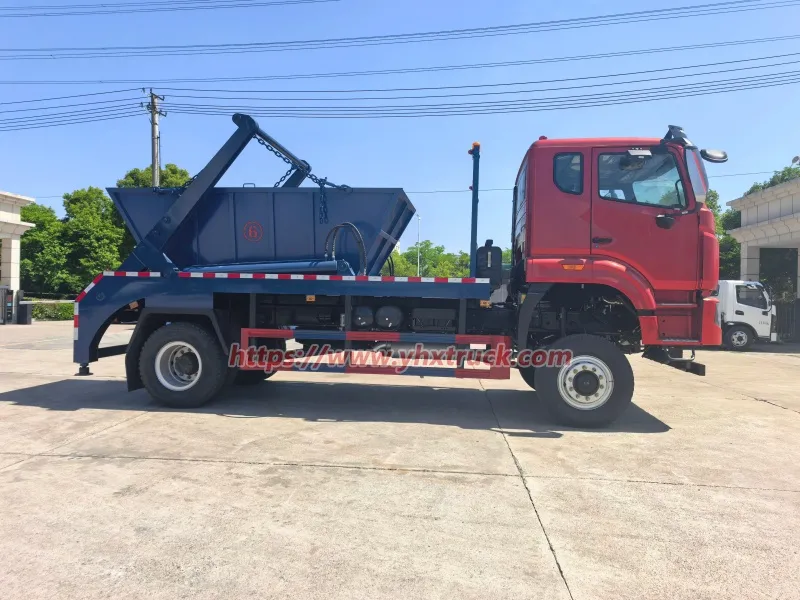

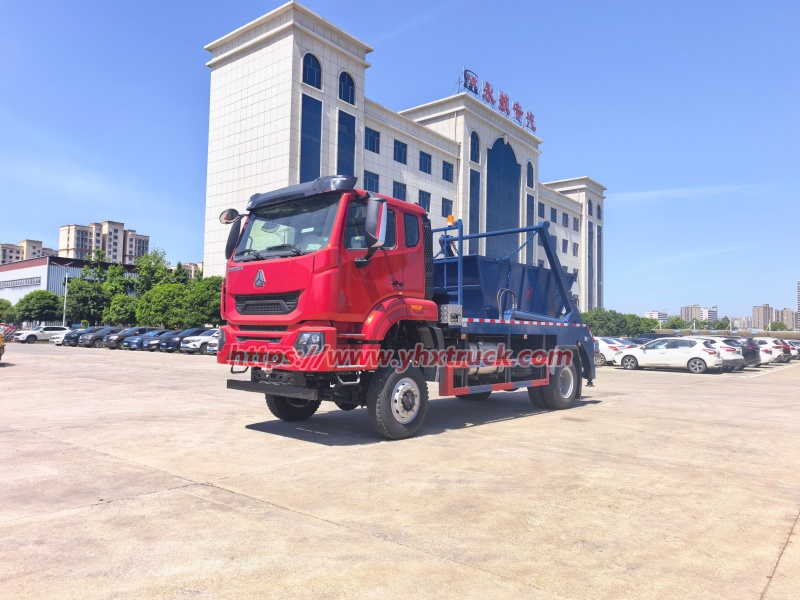

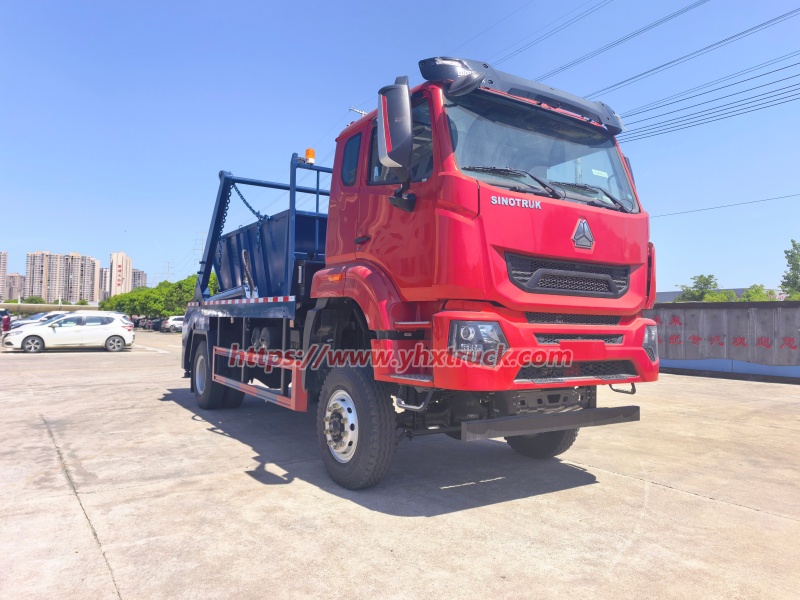

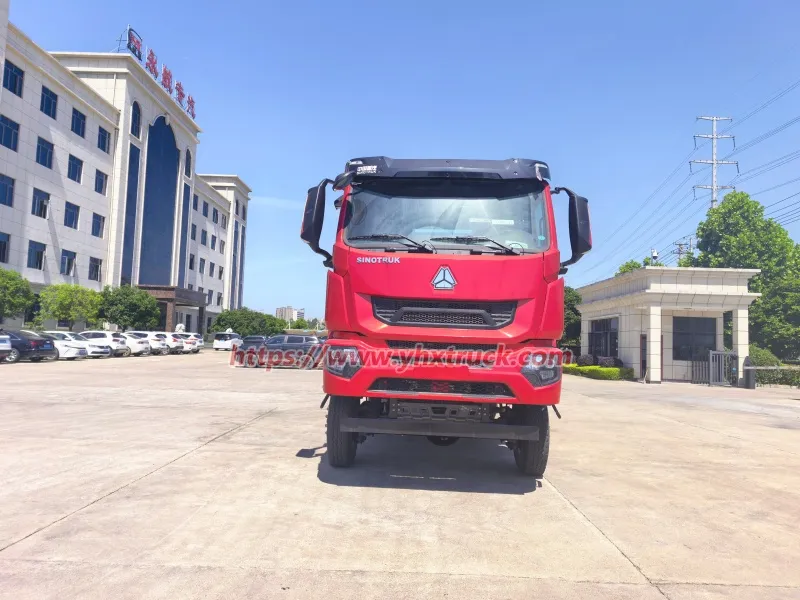

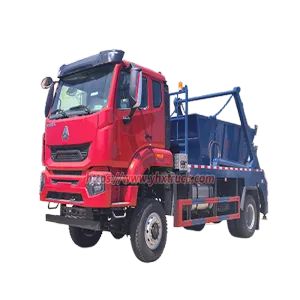

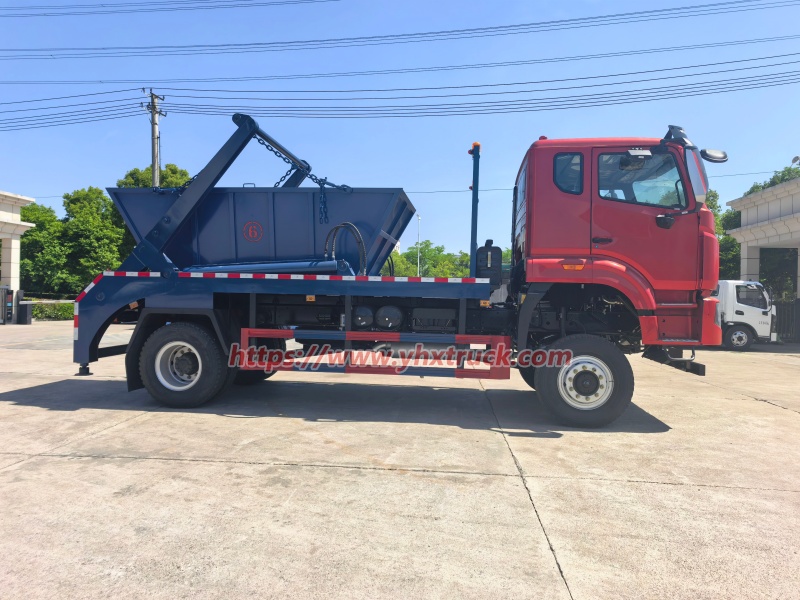

4x4 Swing Arm Garbage Truck (8-12cbm)

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

4x4 Swing Arm Garbage Truck (8-12cbm)
General	Chassis Brand	Sinotruk HOWO
	Overall Dimension(L×W×H)	Approx 7200×2500×3200mm
	GVW / Kerb Weight	16000kg / approx 8200kg
	Standard Bin Capacity	8-12m³ (customizable)
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai / Sinotruk MAN (alternative optional)
	Rated Power	220HP/162kW
	Displacement	6.7L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×4 Four-wheel Drive
	Transmission	8-speed manual gearbox with PTO interface + 2-speed transfer case
	Wheelbase/No.of axle	4200mm / 2 axles
	Tyre Specification	11.00R20 / 11R22.5 all-terrain radial tires
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	8-12m³ (customizable: 8/10/12m³)
	Waste Box Material	4–6mm Q235 high strength carbon steel
	Rated Lifting Load	8-12Ton (matched with bin capacity)
	Working Cycle Time	≤60s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–20MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint

View Less

Introduction

4x4 Swing Arm Garbage Truck (8-12cbm) (also widely known as a Swing-arm garbage truck ) is a specialized sanitation vehicle designed to collect and transport waste using a hydraulically powered hook arm mechanism. Its defining feature is the ability to automatically load, unload, and detach a separate waste container (skip/roll-off bin) from the truck chassis.

Core Characteristics & Key Details

Detachable Container Design

The truck chassis and waste bin are completely independent. A single truck can serve multiple bins, enabling a continuous "truck moves, bins stay" workflow. This drastically improves collection efficiency, especially for scattered waste points or locations with variable waste volumes.

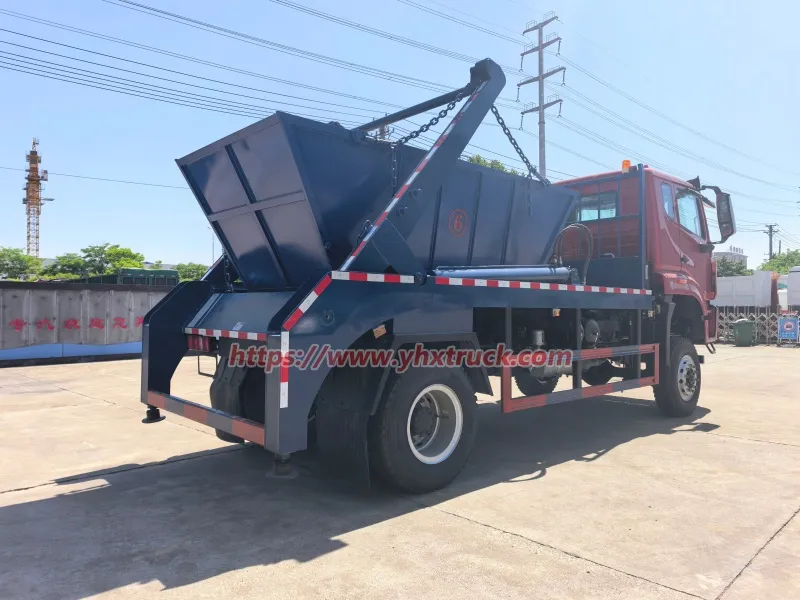

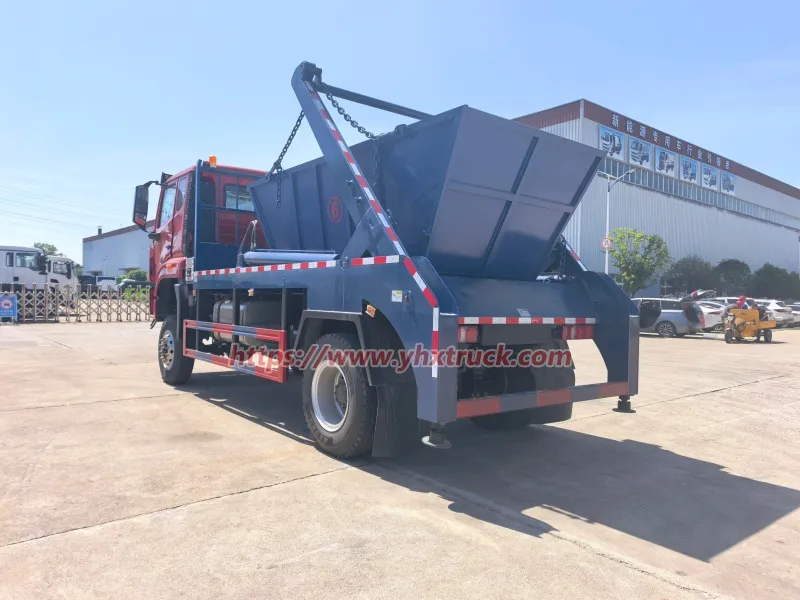

Hydraulic Hook Arm System

The core working component is the rear-mounted hook arm assembly. Powered by hydraulic cylinders, it performs the full cycle of grabbing, lifting, loading/unloading, and securing the waste bin in about 60 seconds. The system is fast, reliable, and operated from the cab.

Multi-Purpose Versatility

The waste containers can be customized (e.g., with sealed lids, self-dumping capability, corrosion-resistant coatings) to handle not only municipal solid waste but also construction debris, industrial scrap, and other bulk materials.

Typical Applications

It is widely used for waste collection in urban streets, residential communities, factories, and towns. It also serves as an efficient short-haul transport tool for construction and renovation waste, particularly ideal for shuttle operations between transfer stations and dispersed collection points.

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Core Advantages

1. One truck can operate with multiple separate waste containers to raise collection efficiency.

2. Full hydraulic drive ensures quick loading and unloading with simple operation.

3. Auxiliary support legs keep stable lifting to avoid vehicle tilting.

4. Sealed bins prevent sewage leakage and secondary environmental pollution.

5. Compact mechanical structure brings low breakdown rate and economical maintenance.

6. Widely adaptable for residential quarters, factories, towns and municipal sanitation projects.

2. Working Principle

The whole working principle of 4x4 Swing Arm Garbage Truck relies on 4-wheel-drive chassis power output and rear-mounted hydraulic hook arm mechanism. Driven by hydraulic power, the rear hook arm carries out automatic grabbing, lifting, loading and unloading actions for detachable waste skip bins.

The operator controls all hydraulic actions via in-cab lever. Auxiliary support legs extend before lifting to balance vehicle gravity and prevent tipping. The standardized rear hook arm finishes full working cycle within 60 seconds, locking bin hanging points firmly to avoid falling-off risks.

Benefiting from fully separated chassis-bin structure, the truck can leave empty bins on collection sites and transport full waste bins outward, realizing mature "truck moves, bins stay" cyclic collection workflow.

3. Daily Application Scenarios

Municipal Sanitation: Daily waste collection on urban narrow roads, downtown streets and public zones
Residential Community Cleaning: Household waste collection in dense residential quarters and villa communities
Industrial Park Service: Production debris, packaging waste disposal for factories and industrial zones
Public Facilities Sanitation: Waste collection for schools, hospitals and scenic spots







4. Comparison with Traditional Models

Vs Integrated Garbage Trucks: Conventional integrated sanitation trucks adopt fixed carriage structure, requiring long downtime for waste loading. Arm roll garbage truck matches multiple independent separate bins to realize non-stop cyclic operation.

Vs Ordinary Sanitation Vehicles: Most traditional waste trucks lack independent hook-lift hydraulic structure, unable to separate bins from vehicle body. Arm roll garbage truck features detachable bin design to cut operational cost.

Vs Manual Waste Collection: Manual cleaning requires massive labor cost and faces hygiene risks. This hydraulic arm roll truck supports full-automatic operation, cutting labor input greatly.

4x4 Swing Arm Garbage Truck (8-12cbm)
General	Chassis Brand	Sinotruk HOWO
	Overall Dimension(L×W×H)	Approx 7200×2500×3200mm
	GVW / Kerb Weight	16000kg / approx 8200kg
	Standard Bin Capacity	8-12m³ (customizable)
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai / Sinotruk MAN (alternative optional)
	Rated Power	220HP/162kW
	Displacement	6.7L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×4 Four-wheel Drive
	Transmission	8-speed manual gearbox with PTO interface + 2-speed transfer case
	Wheelbase/No.of axle	4200mm / 2 axles
	Tyre Specification	11.00R20 / 11R22.5 all-terrain radial tires
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	8-12m³ (customizable: 8/10/12m³)
	Waste Box Material	4–6mm Q235 high strength carbon steel
	Rated Lifting Load	8-12Ton (matched with bin capacity)
	Working Cycle Time	≤60s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–20MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint

5. Buying Guide

For global sanitation purchasers, verify core configurations before purchasing qualified skip loader garbage trucks:

Heavy-Duty Chassis: Adopt certified heavy-duty commercial chassis to guarantee bearing capacity and road adaptability.

Rear-Mounted Hydraulic Hook Arm: Check original matched rear hydraulic hook assembly, 60-second full working cycle, cab integrated control for stable operation.

Sealed Containers: Choose anti-corrosion sealed skip bins to comply with international environmental protection requirements.

Safety Devices: Equip hydraulic stabilizing legs and anti-drop locking devices to eliminate dumping risks.

Complete Export Certificates: Provide full sets of export documents for overseas customs clearance and vehicle registration.

6. Operation and Maintenance Tips

Standard operation and routine maintenance can protect hydraulic components, extend vehicle lifespan and reduce operation failures:

Daily Operation Specifications

Inspect hydraulic oil pressure and swing arm lubrication before startup; forbid overload dumping
Extend hydraulic stabilizing legs fully before bin lifting to prevent vehicle tipping
Align swing arm hook with bin hanging points accurately to avoid bin falling off
Operate hydraulic system gently, prevent abrupt action to protect hydraulic cylinders
Clean bin sealing grooves after operation to guarantee sealing performance

Regular Maintenance Advice

Replace hydraulic oil every 12 months, clean hydraulic filter regularly
Lubricate swing arm rotation joints biweekly to avoid jamming
Check hydraulic sealing rings monthly to prevent oil leakage
Repaint anti-rust coating on bins and swing arms to resist corrosion
Calibrate hydraulic locking device quarterly to ensure operational safety

7. Frequently Asked Questions

Q1: What are official international names of this sanitation vehicle?

A1: Its universal names include Skip Loader Garbage Truck, Swing Arm Refuse Truck, Container-Type Waste Collection Vehicle and Hydraulic Swing Arm Waste Truck.

Q2: What is the biggest difference from ordinary garbage trucks?

A2: It adopts side-mounted hydraulic swing arm structure and detachable skip containers, realizing full-automatic hydraulic operation, with higher efficiency and site adaptability.

Q3: Does it support single-person operation?

A3: Yes. The whole picking, lifting and dumping process can be finished by one driver inside the cab, no extra labor required.

Q4: How to avoid secondary pollution during transportation?

A4: Equipped with fully sealed truck body and skip containers, it blocks sewage leakage, dust and odor diffusion to realize eco-friendly transportation.

Q5: What safety configurations are equipped?

A5: It is fitted with hydraulic stabilizing legs and hydraulic locking devices, plus anti-tipping hydraulic program to guarantee dumping safety.

Conclusion

4x4 Swing Arm Garbage Truck (8-12cbm) is a professional all-wheel-drive sanitation vehicle equipped with rear hydraulic hook arm mechanism. With detachable bin design and mature hydraulic system, it supports automatic bin loading, unloading and separation.

Integrated with high efficiency, labor cost saving, flexible accessibility, environmental protection and operational safety, this vehicle solves defects of low efficiency, labor-intensive work and pollution risks of traditional sanitation equipment. It fits municipal, residential, industrial and public sanitation scenarios perfectly.

With standardized hydraulic components and export-compliant configurations, it is reliable, easy-maintenance sanitation equipment for global environmental protection and municipal clients.


4x4 Swing Arm Garbage Truck (8-12cbm)
General	Chassis Brand	Sinotruk HOWO
	Overall Dimension(L×W×H)	Approx 7200×2500×3200mm
	GVW / Kerb Weight	16000kg / approx 8200kg
	Standard Bin Capacity	8-12m³ (customizable)
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai / Sinotruk MAN (alternative optional)
	Rated Power	220HP/162kW
	Displacement	6.7L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×4 Four-wheel Drive
	Transmission	8-speed manual gearbox with PTO interface + 2-speed transfer case
	Wheelbase/No.of axle	4200mm / 2 axles
	Tyre Specification	11.00R20 / 11R22.5 all-terrain radial tires
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	8-12m³ (customizable: 8/10/12m³)
	Waste Box Material	4–6mm Q235 high strength carbon steel
	Rated Lifting Load	8-12Ton (matched with bin capacity)
	Working Cycle Time	≤60s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–20MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint
