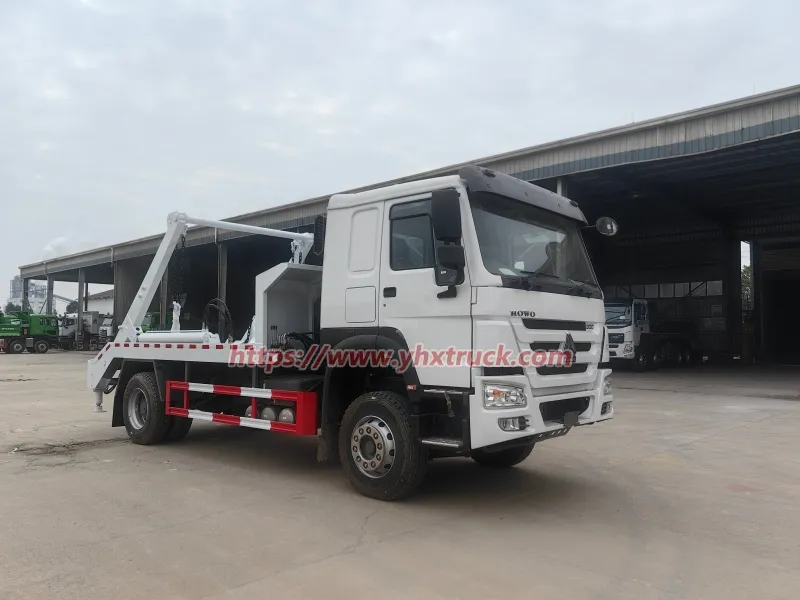

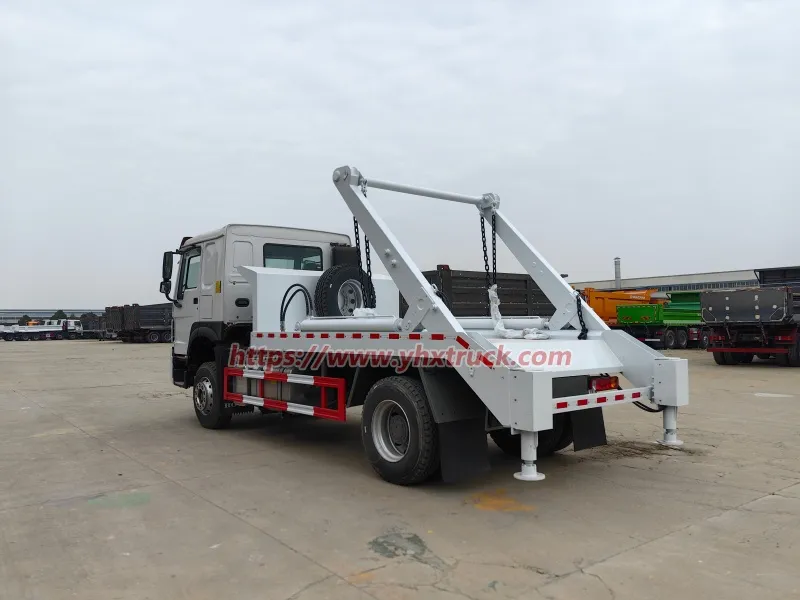

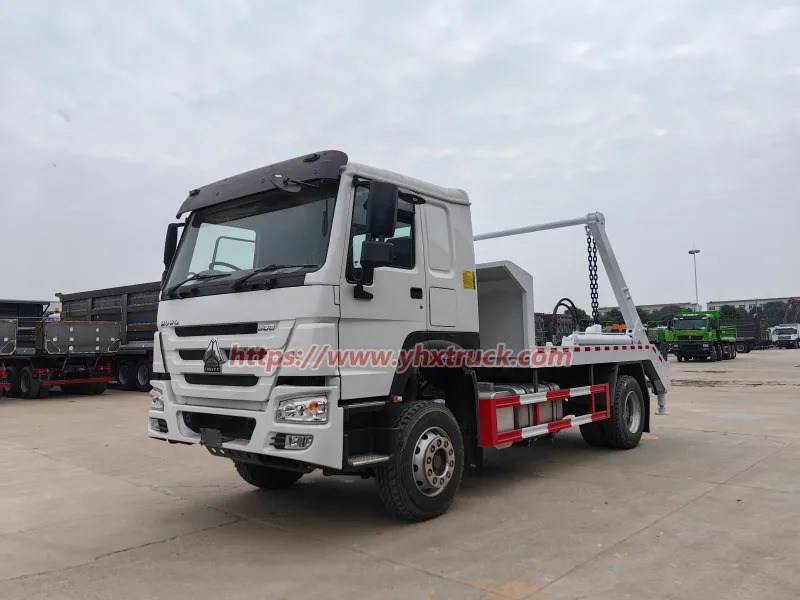

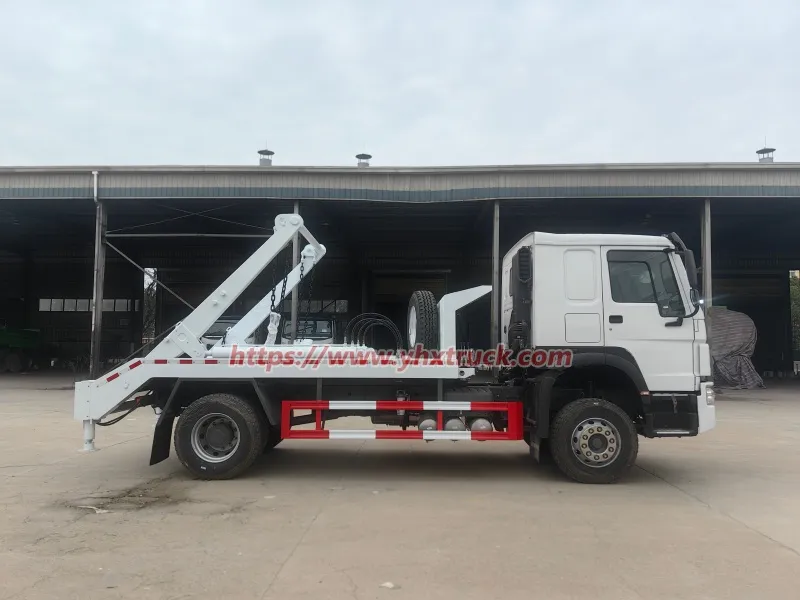

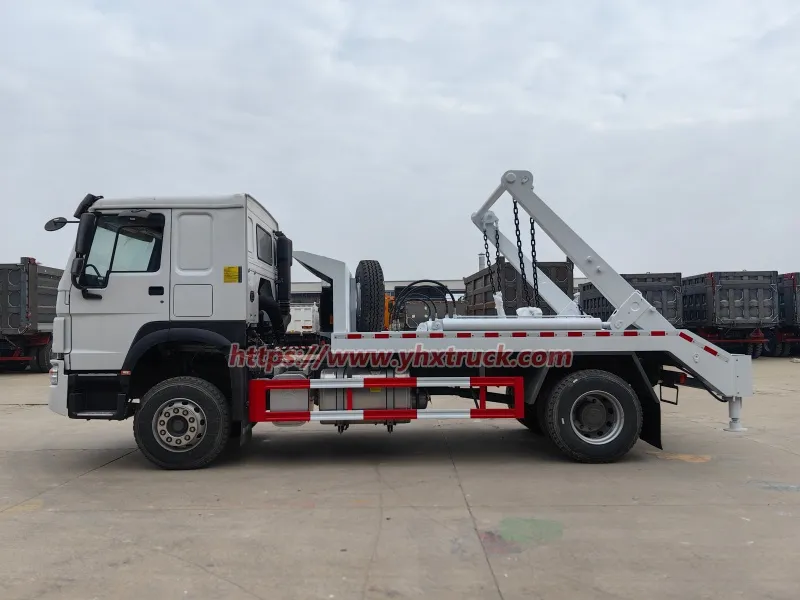

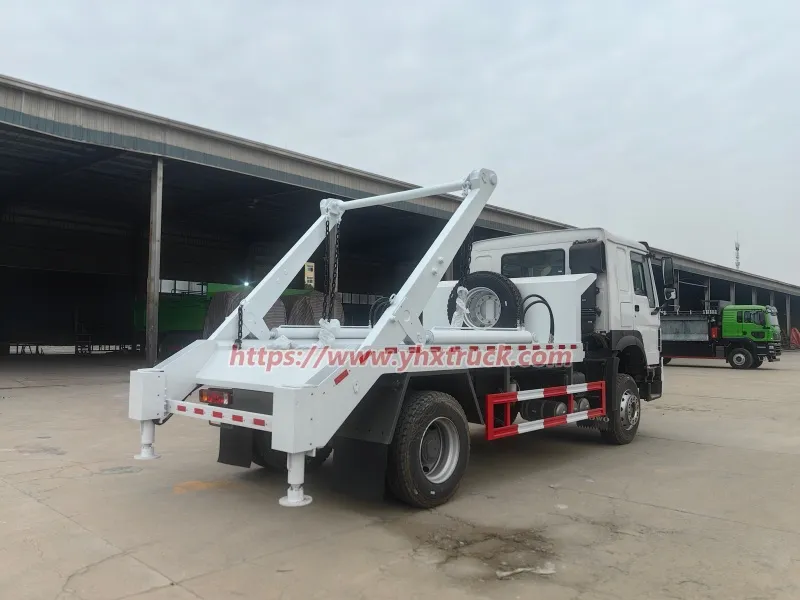

SINOTRUK HOWO 4×2 Swing Arm Skip Loader Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Sinotruk Roll-off skip loader
General	Chassis Brand	Sinotruk HOWO
	Overall Dimension(L×W×H)	Approx 7000×2500×3200mm
	GVW / Kerb Weight	16000kg / approx 7800kg
	Loading Capacity	8-10m³ / 8-10 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	High-roof Sleeper Cab (Row-and-a-half)
	Cab Capacity	3 seats (1 driver + 2 passengers) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai / Sinotruk original matching engine
	Rated Power	290-340HP/213-250kW
	Displacement	9.7-10L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	Fast 10-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	4500mm / 2 axles
	Tyre Specification	12R22.5 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	8-10m³ / 8-10 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥10 tons, max lifting height ≥4m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 8-10m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

View Less

Introduction

Sinotruk Roll-off skip loader (also widely known as a skip loader or roll-off truck) is a specialized sanitation vehicle designed to collect and transport waste using a hydraulically powered hook arm mechanism. Its defining feature is the ability to automatically load, unload, and detach a separate waste container (skip/roll-off bin) from the truck chassis.

Core Characteristics & Key Details

Detachable Container Design

The truck chassis and waste bin are completely independent. A single truck can serve multiple bins, enabling a continuous "truck moves, bins stay" workflow. This drastically improves collection efficiency, especially for scattered waste points or locations with variable waste volumes.

Hydraulic Hook Arm System

The core working component is the rear-mounted hook arm assembly. Powered by hydraulic cylinders, it performs the full cycle of grabbing, lifting, loading/unloading, and securing the waste bin in about 60 seconds. The system is fast, reliable, and operated from the cab.

Multi-Purpose Versatility

The waste containers can be customized (e.g., with sealed lids, self-dumping capability, corrosion-resistant coatings) to handle not only municipal solid waste but also construction debris, industrial scrap, and other bulk materials.

Typical Applications

It is widely used for waste collection in urban streets, residential communities, factories, and towns. It also serves as an efficient short-haul transport tool for construction and renovation waste, particularly ideal for shuttle operations between transfer stations and dispersed collection points.

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Core Advantages

1. One truck can operate with multiple separate waste containers to raise collection efficiency.

2. Full hydraulic drive ensures quick loading and unloading with simple operation.

3. Auxiliary support legs keep stable lifting to avoid vehicle tilting.

4. Sealed bins prevent sewage leakage and secondary environmental pollution.

5. Compact mechanical structure brings low breakdown rate and economical maintenance.

6. Widely adaptable for residential quarters, factories, towns and municipal sanitation projects.

2. Working Principle

The whole working principle of Sinotruk Roll-off Skip Loader depends on chassis power output and rear-mounted hydraulic hook arm assembly. After activating the power take-off, the engine delivers power to the hydraulic system, driving hydraulic cylinders to finish full-cycle actions including grabbing, lifting, loading and locking waste bins.

Before loading and unloading operations, auxiliary hydraulic support legs extend to support the ground, balance vehicle gravity and eliminate tipping risks. The rear hook arm locks the bin hanging points firmly, and completes the whole working procedure within 60 seconds. All operational controls are centralized inside the cab for easy manipulation.

Benefiting from fully independent chassis-bin structure, the roll-off skip loader executes the classic "truck moves, bins stay" mode, realizing uninterrupted cyclic waste collection and greatly boosting overall sanitation efficiency.

3. Daily Application Scenarios

Municipal Sanitation: Daily waste collection on urban streets, downtown roads and public service areas
Residential Community Cleaning: Household garbage disposal for residential quarters and living compounds
Construction Waste Transport: Short-haul transportation of construction debris, renovation residues and building scraps
Industrial Disposal: Collection and transit of industrial scrap and bulk production waste

4. Comparison with Traditional Models

Vs Integrated Garbage Trucks: Conventional integrated sanitation trucks adopt fixed carriage structure, requiring long downtime for waste loading. Sinotruk roll-off skip loader adopts fully detachable bin design to realize non-stop cyclic collection and cut idle time.

Vs Ordinary Sanitation Vehicles: Most traditional waste vehicles are equipped with simple lifting structure, lacking standardized rear hook arm, unable to separate bins from truck body. Sinotruk roll-off skip loader adopts dedicated hydraulic hook arm system to lower long-term operating cost.

Vs Manual Waste Collection: Manual cleaning consumes massive manpower and causes sanitation pollution. This Sinotruk hydraulic roll-off skip loader supports cab centralized operation, saving labor cost remarkably.

Sinotruk Roll-off skip loader
General	Chassis Brand	Sinotruk HOWO
	Overall Dimension(L×W×H)	Approx 7000×2500×3200mm
	GVW / Kerb Weight	16000kg / approx 7800kg
	Loading Capacity	8-10m³ / 8-10 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	High-roof Sleeper Cab (Row-and-a-half)
	Cab Capacity	3 seats (1 driver + 2 passengers) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai / Sinotruk original matching engine
	Rated Power	290-340HP/213-250kW
	Displacement	9.7-10L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	Fast 10-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	4500mm / 2 axles
	Tyre Specification	12R22.5 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	8-10m³ / 8-10 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥10 tons, max lifting height ≥4m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 8-10m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

5. Buying Guide

For global sanitation purchasers, verify core configurations before purchasing qualified Sinotruk roll-off skip loaders:

Sinotruk Heavy-Duty Chassis: Adopt authentic Sinotruk commercial chassis, matched with reliable diesel engine, stable bearing capacity for long-distance sanitation transit.

Rear Hydraulic Hook Arm: Dedicated rear-mounted hook arm assembly, 60-second full working cycle, cab integrated hydraulic control system.

Customizable Roll-off Bins: Optional sealed lids, anti-corrosion coating and self-dumping function, adaptable for multiple types of waste.

Auxiliary Safety Devices: Equip hydraulic support legs and hydraulic locking parts to prevent vehicle tipping and bin falling off.

Environmental Protection Design: Matched sealed waste bins to stop sewage leakage and avoid secondary pollution.

6. Operation and Maintenance Tips

Standard operation and routine maintenance can protect hydraulic components, extend vehicle lifespan and reduce operation failures:

Daily Operation Specifications

Regular Maintenance Advice

Check hydraulic oil level and hook arm abrasion before startup; prohibit overloading waste bins
Stretch out auxiliary support legs fully before lifting bins to guarantee driving stability
Calibrate rear hook position to fit bin hanging points, avoid unbalanced locking
Operate hydraulic levers gently inside cab to protect hydraulic cylinders
Clean bin sealing edges regularly to prevent sewage overflow
Replace hydraulic oil once a year, clean hydraulic filter to prevent pipeline clogging
Lubricate hook arm rotation joints monthly to reduce mechanical wear
Inspect hydraulic sealing rings regularly to eliminate oil leakage
Repaint anti-corrosion paint on bins and hook arm to resist rusting
Test hydraulic locking device quarterly to ensure operational safety

7. Frequently Asked Questions

Q1: What are official international names of this sanitation vehicle?

A1: Its universal names include Sinotruk Roll-off Skip Loader, Skip Loader Truck, Roll-off Garbage Truck and Hook Arm Sanitation Truck.

Q3: Does it support single-person operation?

Q2: What is the biggest difference from ordinary garbage trucks?

A3: Yes. All hydraulic loading, lifting and unloading actions can be controlled by the driver inside the cab, no extra ground staff required.

A2: It adopts rear-mounted hydraulic hook arm and fully independent detachable bins, realizing 60-second fast loading and unloading, with better cross-scenario adaptability.

Q4: How to avoid secondary pollution during transportation?

A4: Customized sealed roll-off bins prevent sewage leakage, dust and odor diffusion, meeting global environmental protection standards.

Q5: What safety configurations are equipped?

A5: It is equipped with hydraulic auxiliary support legs, hydraulic anti-drop locks and overload protection program to guarantee overall operational safety.

Sinotruk Roll-off Skip Loader (also widely known as a skip loader or roll-off truck) is a professional hydraulic sanitation vehicle fitted with rear hook arm mechanism and detachable waste containers.

Featuring separable bin-chassis structure, 60-second fast hydraulic operation and multi-scenario applicability, it solves low-efficiency, high-cost and pollution defects of traditional sanitation trucks. It fits municipal cleaning, construction waste transportation and industrial waste disposal perfectly.

Conclusion

Supported by authentic Sinotruk heavy-duty chassis, standardized hydraulic parts and customizable bins, it is cost-effective, durable and easy-maintenance sanitation equipment for overseas municipal and environmental clients.


Sinotruk Roll-off skip loader
General	Chassis Brand	Sinotruk HOWO
	Overall Dimension(L×W×H)	Approx 7000×2500×3200mm
	GVW / Kerb Weight	16000kg / approx 7800kg
	Loading Capacity	8-10m³ / 8-10 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	High-roof Sleeper Cab (Row-and-a-half)
	Cab Capacity	3 seats (1 driver + 2 passengers) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai / Sinotruk original matching engine
	Rated Power	290-340HP/213-250kW
	Displacement	9.7-10L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	Fast 10-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	4500mm / 2 axles
	Tyre Specification	12R22.5 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	8-10m³ / 8-10 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥10 tons, max lifting height ≥4m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 8-10m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts
