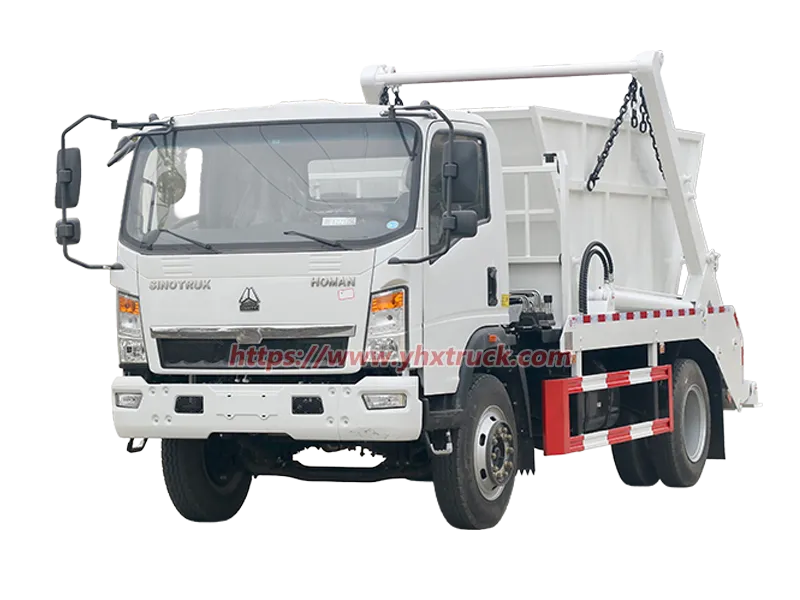

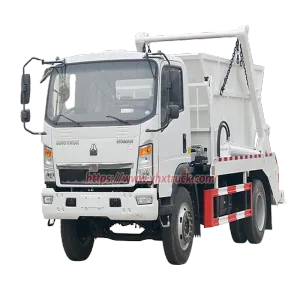

SINOTRUK HOMAN 8CBM Swing Arm Skip Loader Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Arm roll garbage truck (8cbm)
General	Chassis Brand	Sinotruk HOMAN
	Overall Dimension(L×W×H)	Approx 6200×2250×2900mm
	GVW / Kerb Weight	11995kg / approx 5500kg
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Sinotruk alternative optional)
	Rated Power	140HP/103kW
	Displacement	3.8L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3360mm / 2 axles
	Tyre Specification	8.25R20
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	8m³
	Waste Box Material	3–5mm Q235 high strength carbon steel
	Rated Lifting Load	5Ton
	Working Cycle Time	≤50s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–18MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint

View Less

Introduction

Arm roll garbage truck, also known as hook lift garbage truck, is a special sanitation vehicle fitted with hydraulic swing arm device and detachable waste container. Driven by hydraulic system, it automatically picks up, lifts and unloads separate bins to realize cyclic garbage transportation with one truck matching multiple containers for municipal waste collection and short-distance transit.

Vehicle Keypoint:

arm roll /hook lift

separate waste bin

hydraulic lifting system

International Common Names:

Swing Arm Refuse Truck

Skip Loader Garbage Truck

Container-Type Waste Collection Vehicle

Hydraulic Swing Arm Waste Truck

1. Product Overview

2. Working Principle

3. Daily Application Scenarios

4. Comparison with Traditional Sanitation Trucks

5. Buying Guide

6. Operation and Maintenance Tips

7. Frequently Asked Questions

Conclusion

1. Product Overview

Core Advantages

1. One truck can operate with multiple separate waste containers to raise collection efficiency.

2. Full hydraulic drive ensures quick loading and unloading with simple operation.

3. Auxiliary support legs keep stable lifting to avoid vehicle tilting.

4. Sealed bins prevent sewage leakage and secondary environmental pollution.

5. Compact mechanical structure brings low breakdown rate and economical maintenance.

6. Widely adaptable for residential quarters, factories, towns and municipal sanitation projects.

2. Working Principle

The whole working principle of Arm Roll Garbage Truck (Hook Lift Garbage Truck) relies on heavy-duty chassis power output and hydraulic lifting system. Driven by hydraulic power, the arm roll & hook lift device carries out automatic picking, lifting and unloading actions for separate waste bins.

The operator controls all actions via in-cab lever or optional remote controller. Auxiliary support legs extend before lifting to balance vehicle gravity and prevent tipping. After aligning with waste bins, the hydraulic swing arm locks bin hanging points firmly to finish loading work.

After waste collection, the truck transports wastes to disposal sites. It can leave empty separate bins on collection sites and replace full bins rapidly, forming efficient cyclic waste collection workflow.

3. Daily Application Scenarios

Municipal Sanitation: Daily waste collection on urban narrow roads, downtown streets and public zones
Residential Community Cleaning: Household waste collection in dense residential quarters and villa communities
Industrial Park Service: Production debris, packaging waste disposal for factories and industrial zones
Public Facilities Sanitation: Waste collection for schools, hospitals and scenic spots

4. Comparison with Traditional Models

Vs Integrated Garbage Trucks: Conventional integrated sanitation trucks adopt fixed carriage structure, requiring long downtime for waste loading. Arm roll garbage truck matches multiple independent separate bins to realize non-stop cyclic operation.

Vs Ordinary Sanitation Vehicles: Most traditional waste trucks lack independent hook-lift hydraulic structure, unable to separate bins from vehicle body. Arm roll garbage truck features detachable bin design to cut operational cost.

Vs Manual Waste Collection: Manual cleaning requires massive labor cost and faces hygiene risks. This hydraulic arm roll truck supports full-automatic operation, cutting labor input greatly.

Arm roll garbage truck (8cbm)
General	Chassis Brand	Sinotruk HOMAN
	Overall Dimension(L×W×H)	Approx 6200×2250×2900mm
	GVW / Kerb Weight	11995kg / approx 5500kg
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Sinotruk alternative optional)
	Rated Power	140HP/103kW
	Displacement	3.8L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3360mm / 2 axles
	Tyre Specification	8.25R20
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	8m³
	Waste Box Material	3–5mm Q235 high strength carbon steel
	Rated Lifting Load	5Ton
	Working Cycle Time	≤50s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–18MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint

5. Buying Guide

For global sanitation purchasers, verify core configurations before purchasing qualified skip loader garbage trucks:

Heavy-Duty Chassis: Adopt certified heavy-duty commercial chassis to guarantee bearing capacity and road adaptability.

Side Hydraulic Swing Arm: Check original matched hydraulic swing arm with hook grabber, stable full-cycle automatic operation.

Sealed Containers: Choose anti-corrosion sealed skip bins to comply with international environmental protection requirements.

Safety Devices: Equip hydraulic stabilizing legs and anti-drop locking devices to eliminate dumping risks.

Complete Export Certificates: Provide full sets of export documents for overseas customs clearance and vehicle registration.

6. Operation and Maintenance Tips

Standard operation and routine maintenance can protect hydraulic components, extend vehicle lifespan and reduce operation failures:

Daily Operation Specifications

Inspect hydraulic oil pressure and swing arm lubrication before startup; forbid overload dumping
Extend hydraulic stabilizing legs fully before bin lifting to prevent vehicle tipping
Align swing arm hook with bin hanging points accurately to avoid bin falling off
Operate hydraulic system gently, prevent abrupt action to protect hydraulic cylinders
Clean bin sealing grooves after operation to guarantee sealing performance

Regular Maintenance Advice

Replace hydraulic oil every 12 months, clean hydraulic filter regularly
Lubricate swing arm rotation joints biweekly to avoid jamming
Check hydraulic sealing rings monthly to prevent oil leakage
Repaint anti-rust coating on bins and swing arms to resist corrosion
Calibrate hydraulic locking device quarterly to ensure operational safety

7. Frequently Asked Questions

Q1: What are official international names of this sanitation vehicle?

A1: Its universal names include Skip Loader Garbage Truck, Swing Arm Refuse Truck, Container-Type Waste Collection Vehicle and Hydraulic Swing Arm Waste Truck.

Q2: What is the biggest difference from ordinary garbage trucks?

A2: It adopts side-mounted hydraulic swing arm structure and detachable skip containers, realizing full-automatic hydraulic operation, with higher efficiency and site adaptability.

Q3: Does it support single-person operation?

A3: Yes. The whole picking, lifting and dumping process can be finished by one driver inside the cab, no extra labor required.

Q4: How to avoid secondary pollution during transportation?

A4: Equipped with fully sealed truck body and skip containers, it blocks sewage leakage, dust and odor diffusion to realize eco-friendly transportation.

Q5: What safety configurations are equipped?

A5: It is fitted with hydraulic stabilizing legs and hydraulic locking devices, plus anti-tipping hydraulic program to guarantee dumping safety.

Conclusion

Skip Loader Garbage Truck (also named Swing Arm Refuse Truck, container-type waste collection vehicle) is a professional hydraulic sanitation vehicle mounted on heavy-duty chassis. Featured with side hydraulic swing arm mechanism, it realizes automatic skip bin handling and waste transportation.

Integrated with high efficiency, labor cost saving, flexible accessibility, environmental protection and operational safety, this vehicle solves defects of low efficiency, labor-intensive work and pollution risks of traditional sanitation equipment. It fits municipal, residential, industrial and public sanitation scenarios perfectly.

With standardized hydraulic components and export-compliant configurations, it is reliable, easy-maintenance sanitation equipment for global environmental protection and municipal clients.


Arm roll garbage truck (8cbm)
General	Chassis Brand	Sinotruk HOMAN
	Overall Dimension(L×W×H)	Approx 6200×2250×2900mm
	GVW / Kerb Weight	11995kg / approx 5500kg
Cab	Cab Capacity	3 seats
	Air Conditioner	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Sinotruk alternative optional)
	Rated Power	140HP/103kW
	Displacement	3.8L
	Emission Standard	Euro2/Euro3/Euro5 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3360mm / 2 axles
	Tyre Specification	8.25R20
	Tyre Number	6pcs +1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Waste Box Capacity	8m³
	Waste Box Material	3–5mm Q235 high strength carbon steel
	Rated Lifting Load	5Ton
	Working Cycle Time	≤50s per full loading & unloading
	Hydraulic Control	In-cab manual lever control
	Hydraulic System	Domestic brand gear pump, working pressure 16–18MPa
	Bin Feature	Reinforced lifting lug, anti-tilt safety chain, bottom sewage collection groove
	Anti-corrosion	Sandblasting + epoxy primer + weather-resistant finish paint
