Home > Products > Fuel Tank Truck > SINOTRUK TX 2-Axle Fuel Tank Truck

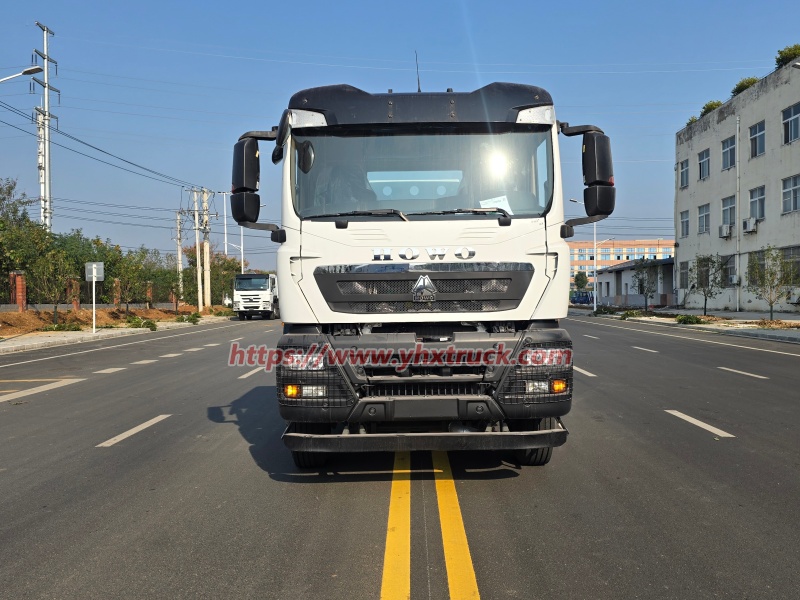

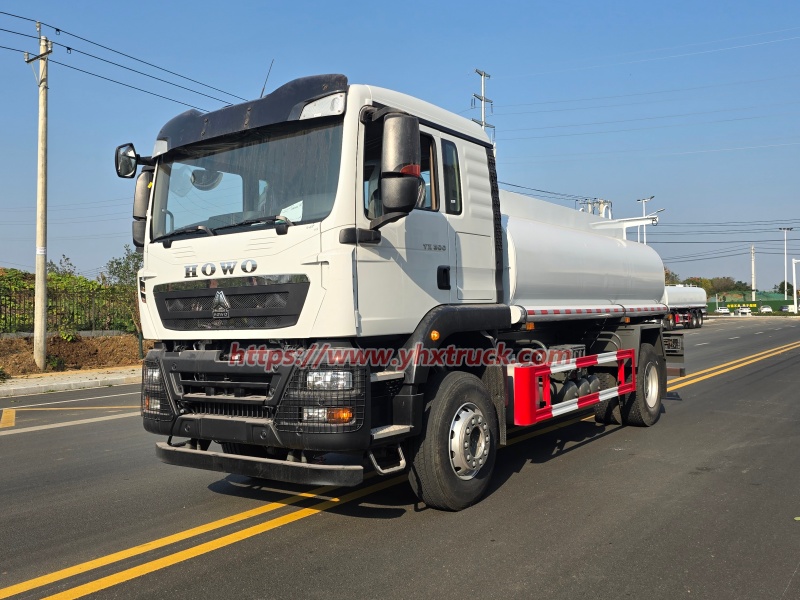

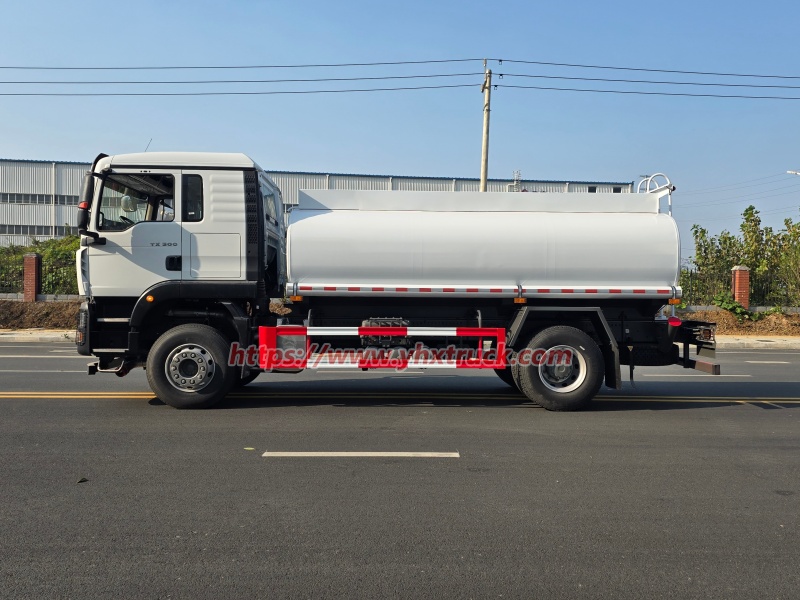

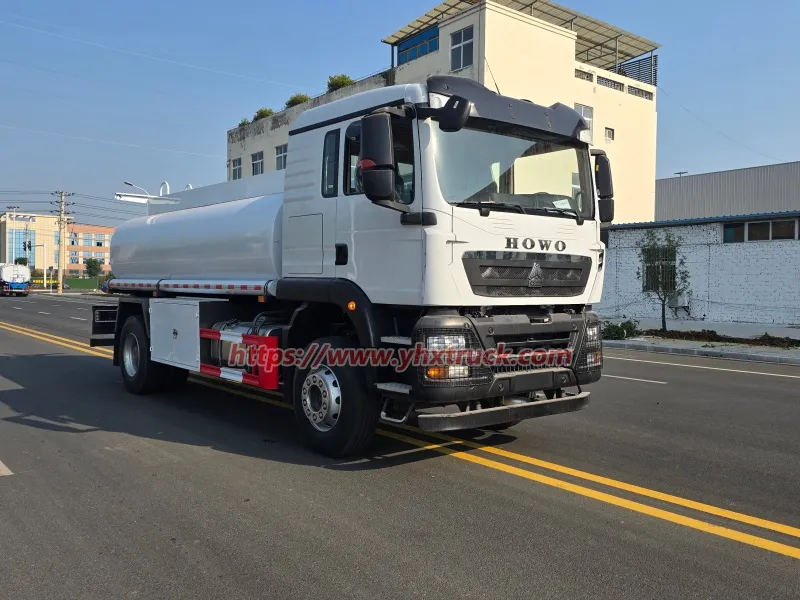

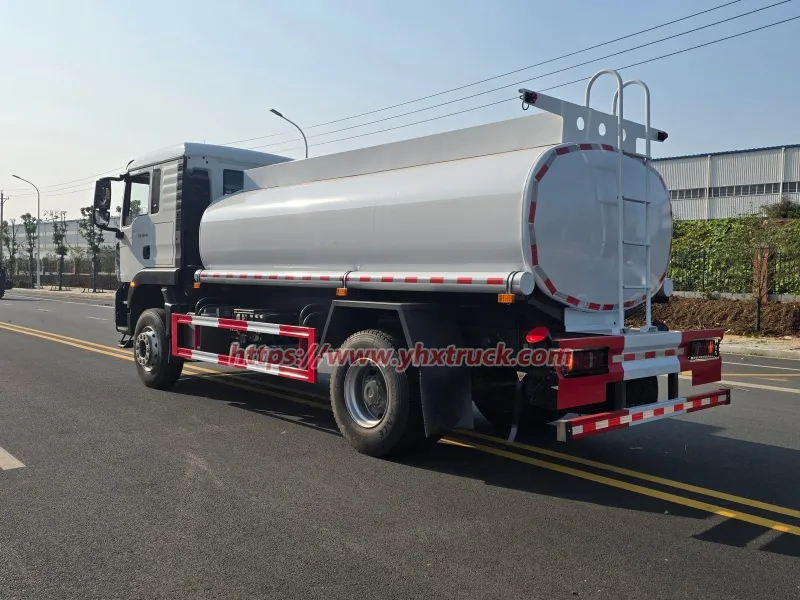

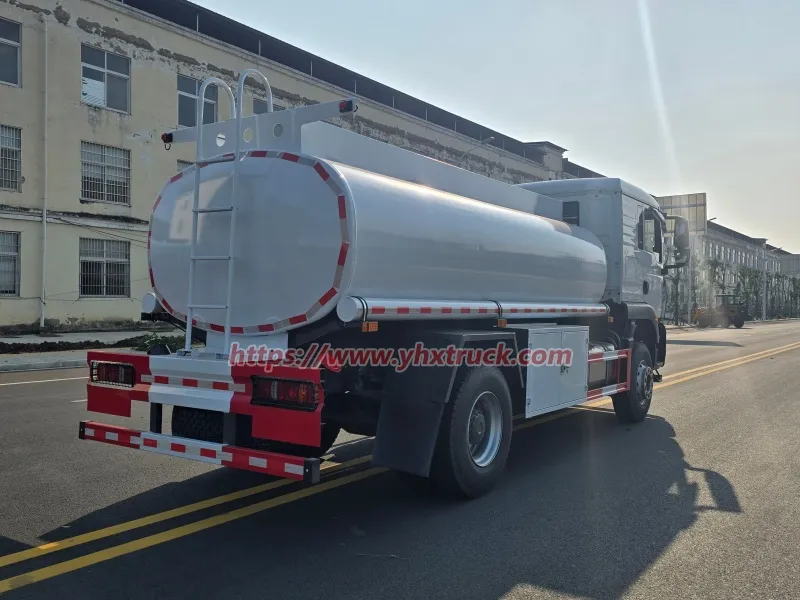

SINOTRUK TX 2-Axle Fuel Tank Truck

    SINOTRUK TX 2-Axle Fuel Tank Truck

    Contact us Inquiry
  • WhatsApp:+86-19171788596
  • SINOTRUK HOWO Delivery Fuel Tank Truck 4x2 (TX Cab) chassis (15000litter Capacity)

    General

    Chassis Brand

    SINOTRUK HOWO TX 4x2


    Overall Dimension

    8520X2525X3320mm


    GVW / Kerb Weight

    18000kg /7800kg

    Cab

    Driving Room

    TX-F cab (flat rear wall)


    Air Conditioner

    W/ air conditioner

    Engine

    Engine Model

    WD615.87 engin


    Max Power

    290HP


    emission standard

    Euro 2/Euro 3

    Transmission

    Transmission Brand

    HW


    Transmission Box

    10-speed

    Chassis

    Drive Axle

    Single MCX16ZG drum rear axle, gear ratio 4.803


    Tire Specification

    315/80R22.5 (mixed tread / 18PR)

    Superstructure

    Capacity

    15000litter


    Material

    Carbon steel


    Standard ConfigurationElliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

    Optional

     Optional configurationsFlow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.


    View Less

Delivery Fuel Tank Truck Professional Introduction

Delivery fuel tank truck is a dedicated vehicle for fuel distribution and transportation. It is mainly used to deliver diesel, gasoline and other oil products to gas stations, industrial zones, construction sites, towns and remote areas, covering short-distance urban distribution and medium-distance intercity fuel transportation.

The tank body is made of high-strength material with automatic welding and rigorous airtight inspection. It features excellent pressure resistance and reliable sealing. Internal anti-wave baffles effectively reduce fuel sloshing while driving and enhance overall driving safety. Multi-compartment design is optional to load different types of fuels separately. The equipped high-precision flow meter ensures accurate measurement for smooth cargo handover.

The matched chassis runs steadily and adapts well to various road conditions. Complete safety assemblies including anti-static devices, emergency cut-off valves, overfill protection and flame arresters are installed, fully meeting international safety standards for hazardous liquid transport. The standard oil inlet and outlet system supports fast loading and discharging to adapt to high-frequency delivery work.


Advantages

This delivery fuel tank truck runs stably with reasonable structure, greatly improving the efficiency of fuel distribution and lowering logistics costs. Excellent sealing performance effectively prevents oil leakage and volatilization, cutting fuel loss and potential safety risks. The complete oil inlet and outlet system enables quick loading, unloading and on-site refueling for vehicles and mechanical equipment, simplifying the whole fuel supply process. The vehicle has a low failure rate and low maintenance cost, capable of long-term continuous operation. Full-range safety configurations provide reliable protection throughout transportation and operation, making it an ideal choice for professional fuel delivery services.







specifications list

SINOTRUK HOWO Delivery fuel tank truck 4x2 (TX Cab) chassis (15000litter Capacity)

General

Chassis Brand

SINOTRUK HOWO TX 4x2

Overall Dimension

8520X2525X3320mm

GVW / Kerb Weight

18000kg /7800kg

Cab

Driving Room

TX-F cab (flat rear wall)

Air Conditioner

W/ air conditioner

Engine

Engine Model

WD615.87 engin

Max Power

290HP

emission standard

Euro 2/Euro 3

Transmission

Transmission Brand

HW

Transmission Box

10-speed

Chassis

Drive Axle

Single MCX16ZG drum rear axle, gear ratio 4.803

Tire Specification

315/80R22.5 (mixed tread / 18PR)

Superstructure

Capacity

15000litter

Material

Carbon steel

Standard Configuration:Elliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

Optional

 Optional configurations:Flow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.



SINOTRUK HOWO Delivery Fuel Tank Truck 4x2 (TX Cab) chassis (15000litter Capacity)

General

Chassis Brand

SINOTRUK HOWO TX 4x2


Overall Dimension

8520X2525X3320mm


GVW / Kerb Weight

18000kg /7800kg

Cab

Driving Room

TX-F cab (flat rear wall)


Air Conditioner

W/ air conditioner

Engine

Engine Model

WD615.87 engin


Max Power

290HP


emission standard

Euro 2/Euro 3

Transmission

Transmission Brand

HW


Transmission Box

10-speed

Chassis

Drive Axle

Single MCX16ZG drum rear axle, gear ratio 4.803


Tire Specification

315/80R22.5 (mixed tread / 18PR)

Superstructure

Capacity

15000litter


Material

Carbon steel


Standard ConfigurationElliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

Optional

 Optional configurationsFlow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.
