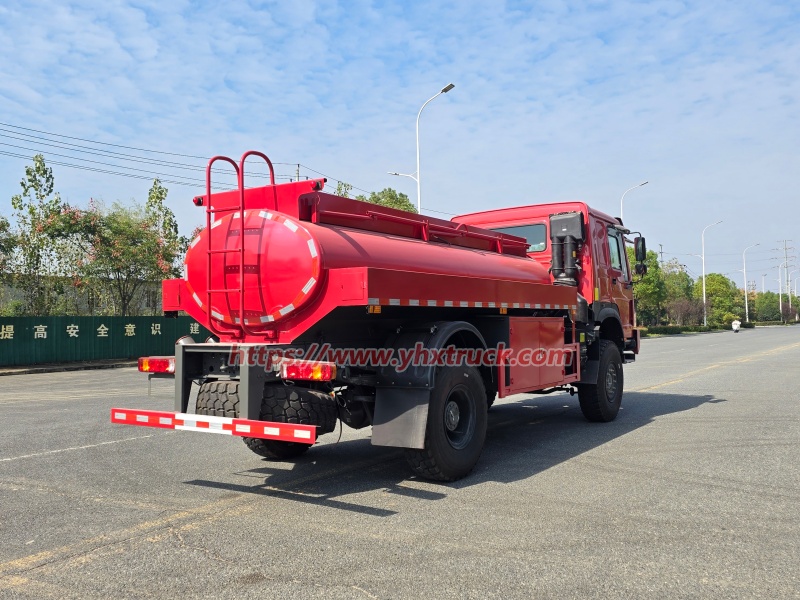

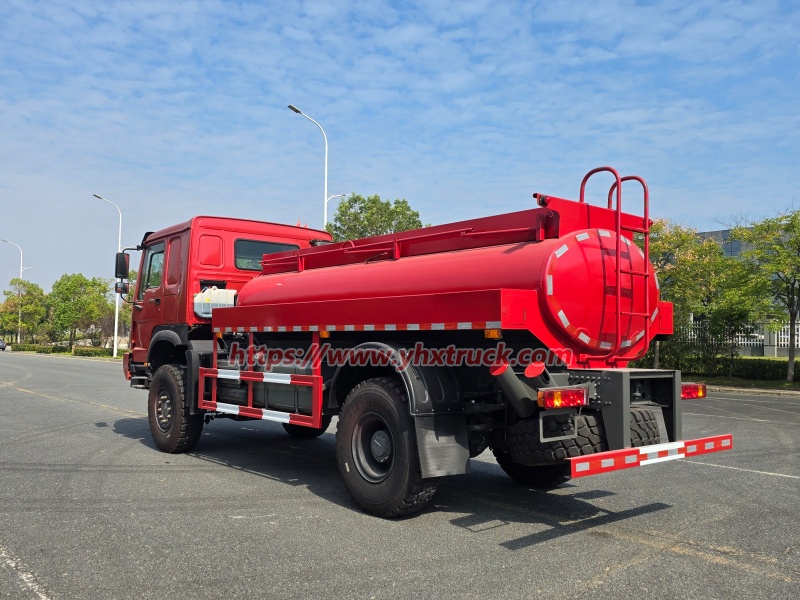

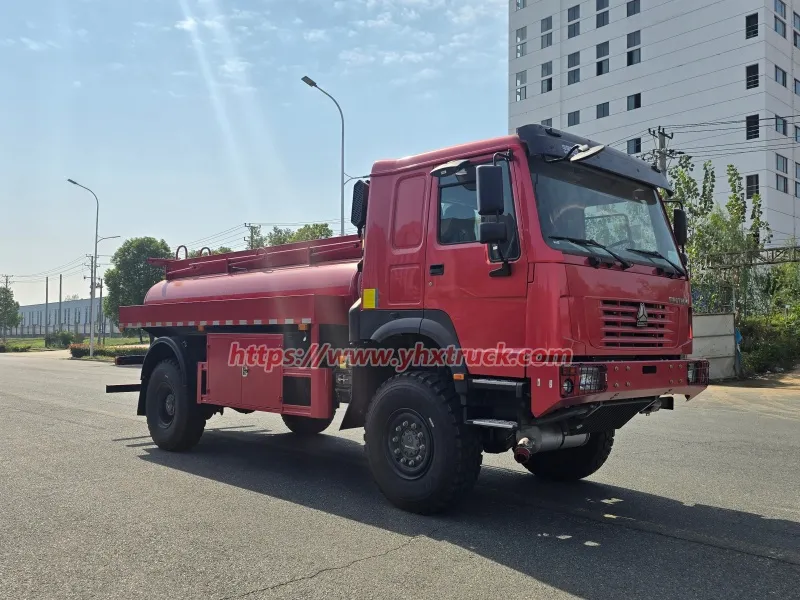

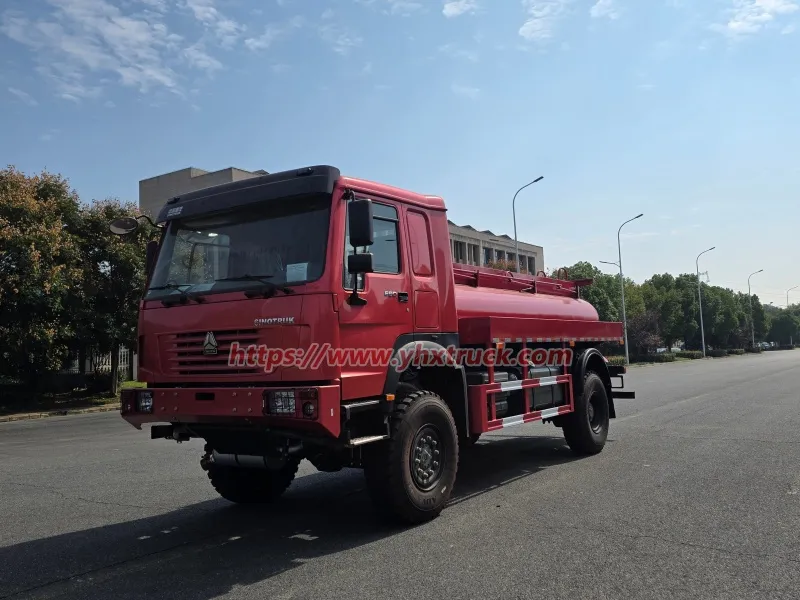

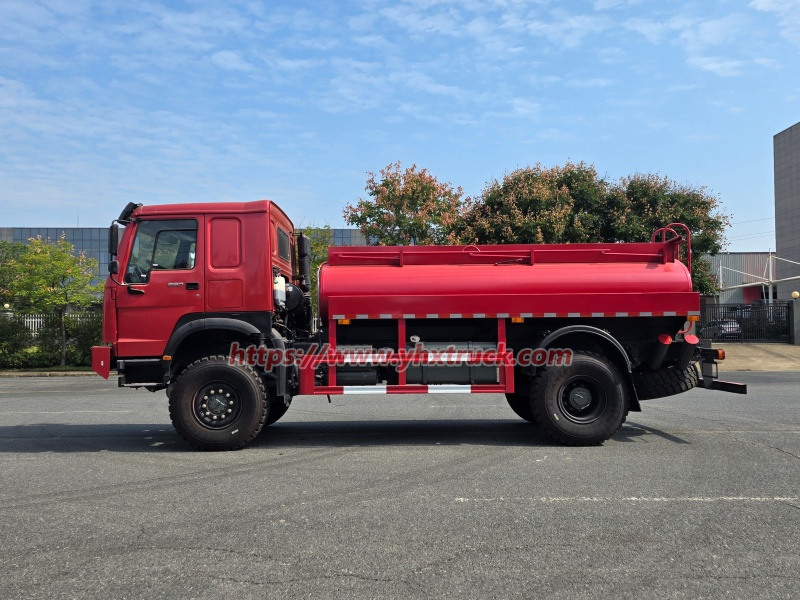

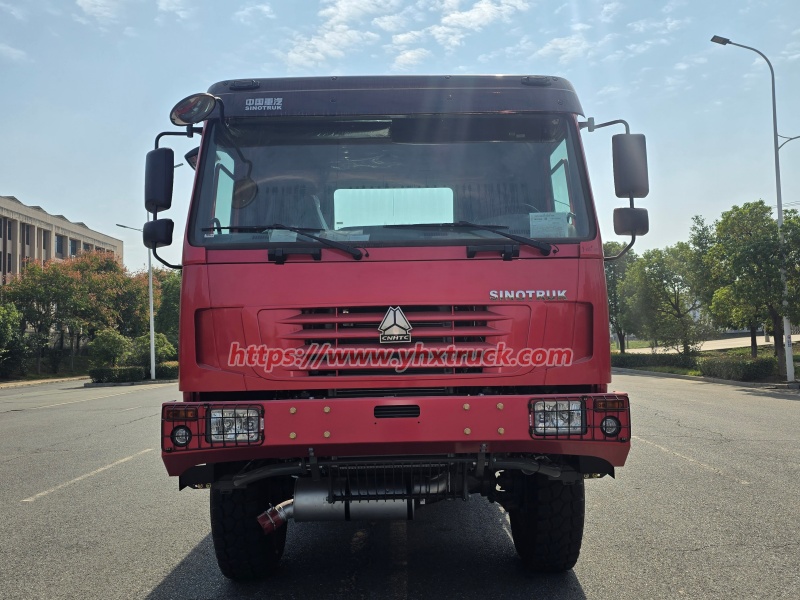

Sinotruk 4x4 Fuel Tank Truck

    Sinotruk 4x4 Fuel Tank Truck

    Contact us Inquiry
  • WhatsApp:+86-19171788596
  •          SINOTRUK fuel tanker truck 4x4( HW76) chassis (15000litter Capacity)

    General

    Chassis Brand

    SINOTRUK HW76 4x4


    Overall Dimension

    8600X 2550 X3360mm


    GVW / Kerb Weight

    18000kg /7870kg

    Cab

    Cab Capacity

    Single row bunk bed


    Air Conditioner

    W/ air conditioner

    Engine

    Fuel Type

    Diesel


    Engine Brand

    WD615.87


    Power

    290HP


    Emission Standard

    Euro 2/ Euro 3


    Transmission

    HW15710C + HW70 flange-type power take-off unit.


    Tyre Specification

    15.5R20 (off-road tread pattern)


    Frame

    Dual-layer frame (8+5/300).


    Suspension

    Front and rear reinforced multi-leaf leaf springs (9/9+6).

    Superstructure

    Capacity

    15000litter


    Material

    Carbon steel


    Standard ConfigurationElliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

    Optional

     Optional configurationsFlow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.


    View Less

Sinotruk 4x4 Fuel Tank Truck Professional Introduction

Sinotruk 4x4 fuel tanker truck is an all-wheel drive heavy-duty vehicle tailored for fuel transportation in remote areas, mountainous regions and rough terrains. It is dedicated to safe storage, transit and delivery of diesel and petrol, widely used for mining operations, field engineering, desert zones and areas with poor road conditions.

The tank body is made of high-strength material or optional aluminum alloy, processed with automatic robotic welding and strict airtight testing. It features great pressure resistance and perfect leakproof performance. Internal anti-wave baffles reduce fuel shaking during travel and greatly improve driving safety. Multi-compartment structure is available to carry different types of oil products, and optional high-precision flow meters realize accurate measurement for easy cargo handover.

Equipped with complete safety configurations including anti-static devices, emergency cut-off valves, overfill protection and flame arrestors, the truck fully meets international standards for hazardous liquid transportation. The professional 4x4 all-wheel drive chassis delivers strong off-road capability and excellent grip, running steadily on muddy, bumpy and unpaved roads.



Advantages

This Sinotruk 4x4 fuel tanker truck boasts solid build quality and reliable overall performance. The all-wheel drive system provides powerful traction and outstanding cross-country ability, adapting to various harsh road conditions that ordinary vehicles cannot pass. The well-sealed tank effectively avoids fuel leakage and volatilization, cutting material loss and safety risks.

The vehicle is flexible to operate and easy to steer even in narrow and rugged areas. The standard loading and unloading system requires no extra tools, simplifying operations and raising working efficiency. With low maintenance cost and long service life, it is a practical and cost-effective choice for outdoor fuel supply and remote transportation projects.







specifications list

         SINOTRUK fuel tanker truck 4x4( HW76) chassis (15000litter Capacity)

General

Chassis Brand

SINOTRUK HW76 4x4

Overall Dimension

8600X 2550 X3360mm

GVW / Kerb Weight

18000kg /7870kg

Cab

Cab Capacity

Single row bunk bed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WD615.87

Power

290HP

Emission Standard

Euro 2/ Euro 3

Transmission

HW15710C + HW70 flange-type power take-off unit.

Tyre Specification

15.5R20 (off-road tread pattern)

Frame

Dual-layer frame (8+5/300).

Suspension

Front and rear reinforced multi-leaf leaf springs (9/9+6).

Superstructure

Capacity

15000litter

Material

Carbon steel

Standard Configuration:Elliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

Optional

 Optional configurations:Flow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.



         SINOTRUK fuel tanker truck 4x4( HW76) chassis (15000litter Capacity)

General

Chassis Brand

SINOTRUK HW76 4x4


Overall Dimension

8600X 2550 X3360mm


GVW / Kerb Weight

18000kg /7870kg

Cab

Cab Capacity

Single row bunk bed


Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel


Engine Brand

WD615.87


Power

290HP


Emission Standard

Euro 2/ Euro 3


Transmission

HW15710C + HW70 flange-type power take-off unit.


Tyre Specification

15.5R20 (off-road tread pattern)


Frame

Dual-layer frame (8+5/300).


Suspension

Front and rear reinforced multi-leaf leaf springs (9/9+6).

Superstructure

Capacity

15000litter


Material

Carbon steel


Standard ConfigurationElliptical tank, EU standard manhole, emergency bottom valve, static drag chain, liftable guardrail, oil hose with male & female camlock couplings

Optional

 Optional configurationsFlow meter, large-flow fuel dispenser, self-0retracting hose reel and fuel nozzle can be equipped optionally.
