1. Product Overview

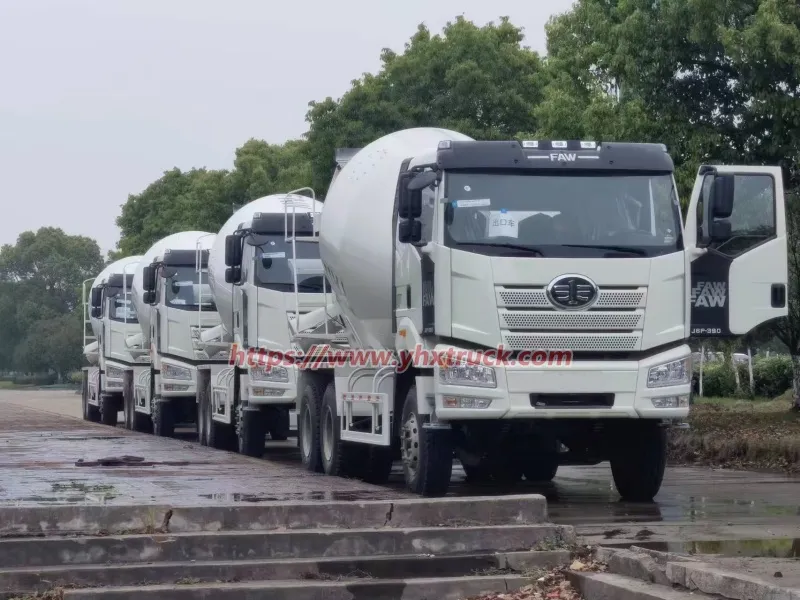

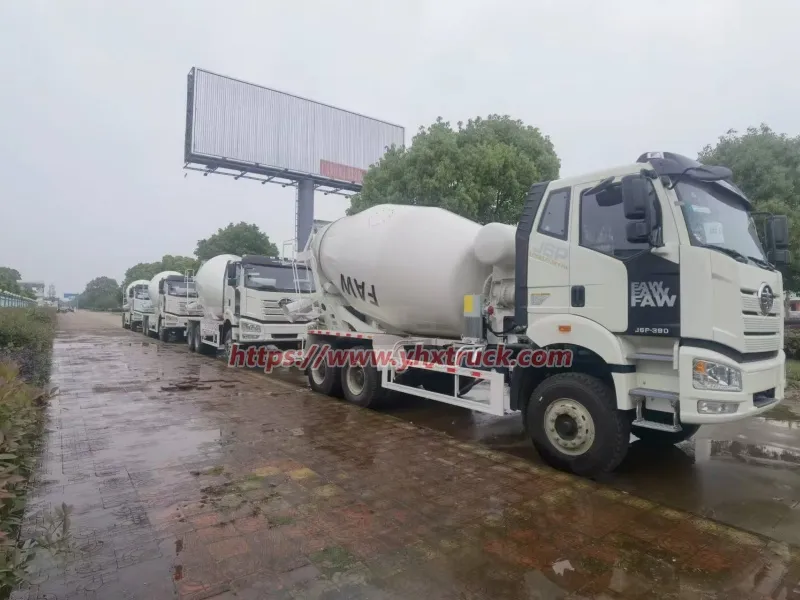

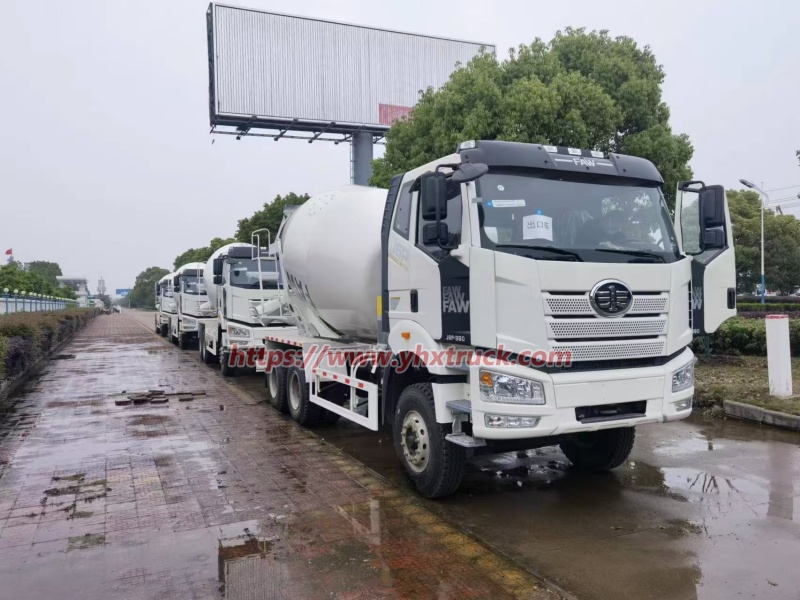

The FAW 6×4 10m³ Concrete Mixer Truck is a heavy-duty, high-capacity concrete mixing and transportation vehicle specially designed for large-scale, high-volume construction projects. Built on the original genuine FAW heavy-duty chassis, this model enjoys huge global market stock and a stable global spare parts supply system, effectively solving overseas users’ after-sales and parts replacement problems.
Adopting a professional 6×4 three-axle load-bearing structure, the truck features a 25-ton GVW, with payload capacity doubled compared with conventional 4×2 single-axle small mixer trucks. It is equipped with a 6-cylinder large-displacement engine, delivering strong low-speed torque and powerful power reserve, fully meeting heavy-load and long-haul transportation demands. The whole chassis is professionally reinforced and construction-tuned; the frame, leaf springs and drive axles are all optimized to adapt to frequent start-stop and heavy-duty transportation on rough construction roads.
Matched with the ergonomic FAW J6P cabin, the vehicle offers excellent sound insulation and shock absorption performance, greatly reducing driver fatigue during long-distance continuous driving. Fitted with a standard 10m³ large-capacity mixing drum and complete feeding, stirring and discharging superstructure, it realizes integrated and efficient concrete mixing and mass transportation, serving as the core mainstream equipment for large engineering construction.
2. Working Principle
The FAW 6×4 10m³ concrete mixer truck relies on the high-power output of the 6-cylinder large-displacement engine to drive the full hydraulic circulating mixing system. The engine provides sufficient low-speed torque reserve, and power is stably transmitted to the hydraulic motor through the supporting Fast gearbox, driving the 10m³ large-capacity mixing drum to rotate at a stepless adjustable constant speed.
During full-load transportation, the continuous and stable rotation of the mixing drum effectively prevents concrete segregation, sedimentation and solidification, ensuring uniform concrete quality and meeting high-standard construction requirements. The wheel-reduction axles can resist heavy impact from rough road conditions, maintaining stable hydraulic operation and system output under long-term heavy-load working conditions. The hydraulic system supports forward and reverse rotation and speed adjustment to complete automatic feeding, uniform stirring and quantitative discharging. Equipped with a complete cleaning water circulation system, it thoroughly cleans residual concrete after operation to avoid material caking and equipment failure. The core Xichai engine supports 1,000,000km major-repair-free operation, ensuring long-term stable and reliable equipment operation.
3. Daily Application Scenarios
This FAW 6×4 10m³ heavy-duty mixer truck is oriented to large-scale centralized concrete transportation scenarios, perfectly making up for the low-efficiency defect of 4–5m³ mini mixer trucks that cannot meet mass concrete supply demands. It is widely applicable for large ready-mix concrete batching stations, urban large-scale construction, highway paving, bridge engineering, industrial factory building construction and other heavy-duty engineering projects requiring continuous and large-volume concrete delivery.
With strong export adaptability, the model is widely promoted and applied in overseas emerging markets including Southeast Asia, Africa, Central Asia and Latin America. It is suitable for long-distance heavy-load concrete transportation and high-frequency continuous construction operation of large infrastructure projects, and is the preferred mass concrete transportation equipment for large engineering contractors and commercial concrete mixing plants.
4. Comparison With Traditional Models
Compared with 4×2 small 4–5m³ mini mixer trucks, traditional light-duty mixers have limited single-vehicle transportation capacity, requiring multiple round trips for large-volume projects, resulting in low construction efficiency and high comprehensive labor and time costs. In contrast, the FAW 6×4 10m³ mixer truck doubles the payload with its three-axle load structure, greatly reducing delivery times and significantly improving overall construction progress and operation efficiency.
Compared with 8×4 12m³ super heavy-duty mixer trucks, the FAW 6×4 10m³ model achieves optimal cost balance. It features lower purchase cost, fuel consumption, insurance and toll fees, while possessing far higher payload and operation efficiency than small mixers, realizing the best cost per ton-kilometer in mainstream heavy-duty mixer models. In terms of product quality and durability, the Xichai million-kilometer maintenance-free engine, Fast gearbox and impact-resistant wheel-reduction axles greatly reduce breakdown rates on rough construction sites. In terms of overseas use and asset preservation, FAW’s complete global after-sales network and highly interchangeable spare parts bring strong export adaptability. Meanwhile, the J6P series cabin and chassis have outstanding market recognition, with far slower depreciation and higher resale value than unknown brand chassis in the used truck market.
FAW 6×4 10m³Concrete Mixer Truck (24T ) |
General | Chassis Brand | Faw |
| Overall Dimension | 10700mm × 2495mm × 3960mm |
| Cargo Box Dimension | 10m³ |
| GVW / Kerb Weight | 25000kg / 12100kg |
Cab | Cab Capacity | 3persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | Xichai Power Engine |
| Power | 390Hp (287KW) |
| Displacement | 2100ml |
| Emission Standard | Euro2/3/4/5 |
Chassis | Drive Type | left or right hand drive |
| Transmission | Fast 10JSD140TB 10-speed manual gearbox, with dedicated PTO for mixer drum |
| Wheelbase | 3900+1350 mm |
| Tyre Specification | 11.00R20 |
| Tyre Number | 10tyres and 1 spare tyre |
| Max Speed | 89 km/h |
| Paint | Metallic paint |
| Others | 16-ton wheel-reduction cast axle, final drive ratio 5.263; optional 13-ton 457 single-reduction axle |
Superstructure | Capacity | 24T |
| Standard Configuration ：Drum material: 6mm wear-resistant high-manganese steel barrel, 8mm thick end heads, double spiral wear-resistant blades |
Optional | Optional configurations：Drum lock device, safety ladder & handrail, night discharge light, optional reverse camera & radar |
5. Purchase Guide
Customers engaged in large commercial ready-mix stations, urban infrastructure, highway and bridge engineering, and large factory construction projects are recommended to choose the FAW 6×4 10m³ concrete mixer truck. It is the most cost-effective heavy-duty model for mass concrete continuous delivery and long-term high-frequency construction operation.
For overseas trading companies and engineering contractors targeting Southeast Asia, Africa, Central Asia and Latin American markets, this model supports customized emission standards including Euro2, Euro3, Euro5 and Euro6 to fully comply with local national regulatory requirements. Relying on FAW’s global sales and after-sales service system and universally interchangeable spare parts, it completely solves overseas operation and maintenance difficulties. If you pursue long-term durability, low failure rate and high residual value of engineering vehicles, the FAW J6P series 10m³ heavy-duty mixer truck is your priority choice.
6. Operation and Maintenance
6.1 Standard Operation Specifications
Before operation, comprehensively inspect the 6-cylinder engine operating status, hydraulic system pressure, mixing drum rotation stability, three-axle chassis suspension and axle connection status to ensure all core components work normally. During full-load heavy transportation, maintain a stable drum rotating speed, avoid sharp turning, emergency braking and over-speed driving to prevent concrete segregation. Adjust the hydraulic drum speed reasonably according to on-site pouring requirements during discharging to ensure uniform and smooth discharging quality.
6.2 Daily Maintenance Tips
After each construction operation, thoroughly clean the 10m³ mixing drum, feeding port and discharging chute with the supporting water circulation system to prevent concrete residue caking. Regularly replace hydraulic oil and filter elements to ensure stable power output of the full hydraulic system. Inspect the Xichai engine lubrication system, Fast gearbox and wheel-reduction axle status regularly, and fasten frame and leaf spring connecting bolts. Standard daily maintenance can give full play to the million-kilometer maintenance-free performance of the core engine, effectively reduce failure rate and extend the overall service life of the heavy-duty mixer truck.
7. Frequently Asked Questions (FAQs)
Q1: What is the core configuration of the FAW 6×4 10m³ concrete mixer truck?
A1: It adopts original FAW reinforced heavy-duty chassis, 6-cylinder large-displacement engine, Fast gearbox and wheel-reduction axles, matched with ergonomic J6P cabin and standard 10m³ mixing drum, with 25-ton GVW three-axle load structure.
Q2: What are the advantages compared with small 4–5m³ mixer trucks?
A2: It has double payload capacity and far higher transportation efficiency, suitable for large-volume mass concrete delivery, effectively reducing delivery times and overall project costs.
Q3: What is the durability advantage of this model?
A3: Equipped with Xichai engine proven for 1,000,000km major-repair-free operation, matched with impact-resistant gearbox and axles, featuring low breakdown rate and strong adaptability to rough construction sites.
Q4: What overseas adaptation advantages does it have?
A4: It supports customizable Euro2/Euro3/Euro5/Euro6 emission standards, covers global mainstream markets with complete FAW after-sales networks, and enjoys highly interchangeable worldwide spare parts.
Q5: What is the cost and resale value advantage?
A5: It achieves balanced comprehensive costs with lower expenses than 8×4 12m³ heavy trucks and higher efficiency than small mixers. The J6P series features slow depreciation and high residual value in the used truck market.
Conclusion
The FAW 6×4 10m³ Concrete Mixer Truck is a high-efficiency, durable and cost-balanced heavy-duty concrete transportation equipment. Built on FAW’s mature reinforced heavy-duty chassis with 6×4 three-axle load structure and 25-ton GVW, it is equipped with a high-torque six-cylinder engine and reliable transmission system, supporting long-term heavy-load and long-distance transportation. The 10m³ large-capacity mixing drum meets mass concrete supply demands for large mixing plants, urban construction, highway and bridge projects, making up for the low-efficiency shortage of small mini mixers.
With superior durability, low failure rate, balanced full-cycle operating costs and strong global market adaptability, this model supports multi-standard emission customization to adapt to different national regulations. Backed by FAW’s global after-sales service system and high resale value advantage, it is a stable, reliable and high-cost-performance heavy-duty construction equipment, perfectly suitable for large engineering projects and overseas infrastructure construction in Southeast Asia, Africa, Central Asia and Latin America.
