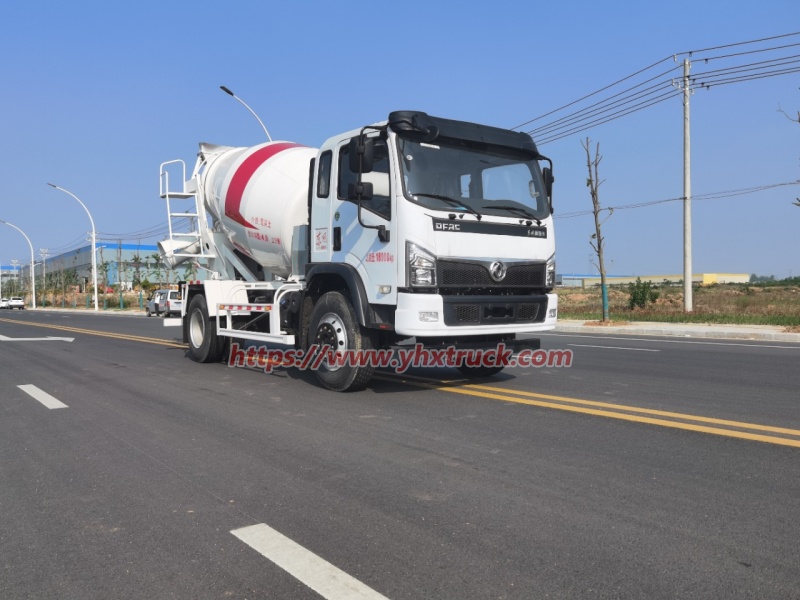

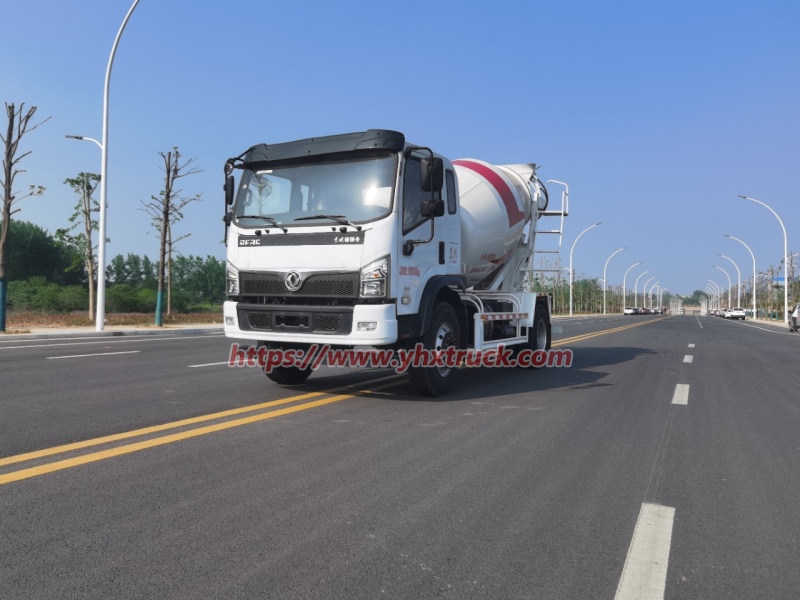

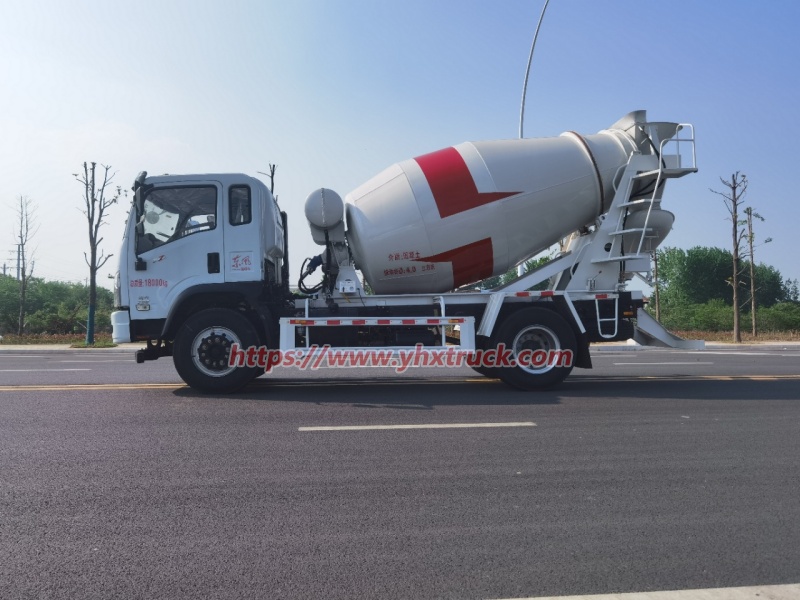

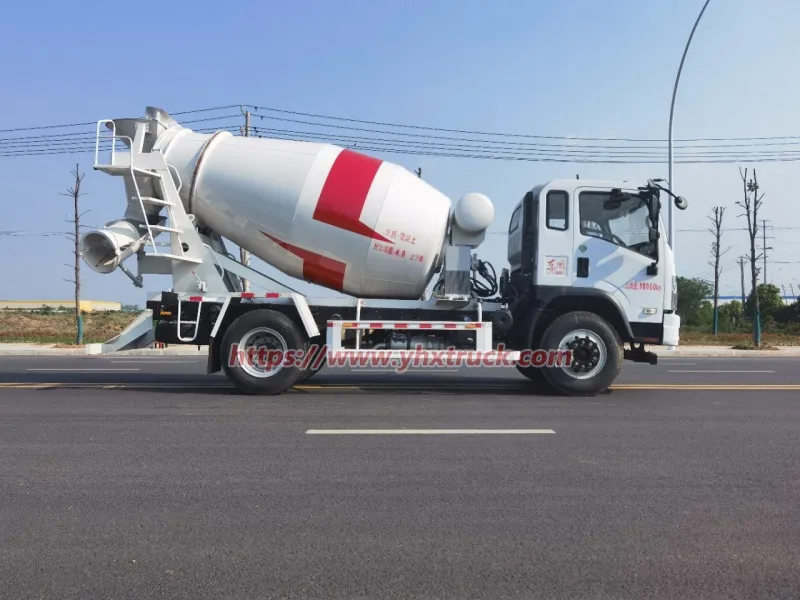

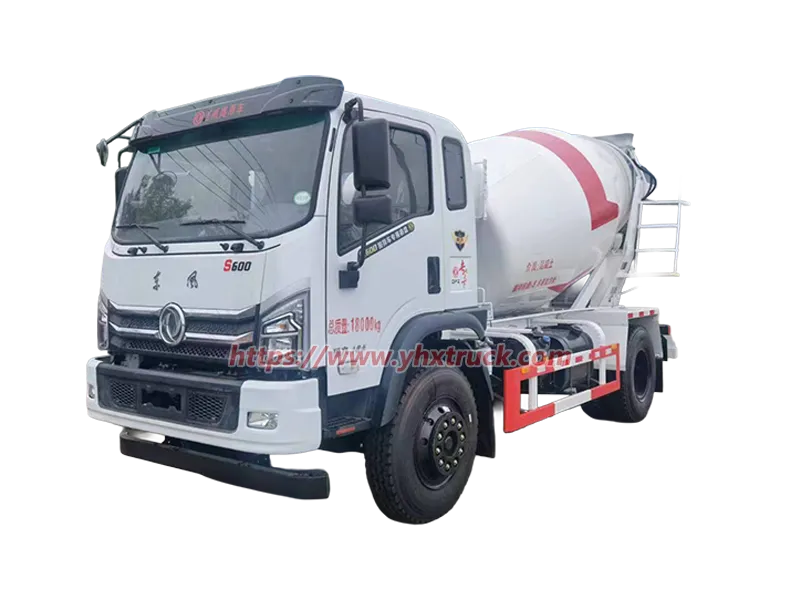

Dongfeng 4×2 6.3m³
Concrete Mixer Truck – Compact & Agile Concrete Transport Solution for Rural & Small Construction Projects
Introduction: Why Compact Mixer Trucks Are Indispensable for Small-Scale Construction
Not all construction sites require large 12m³ or 15m³ mixer trucks. For rural renovation, township engineering, urban village reconstruction, private house building and small municipal projects, construction contractors and rental fleets prioritize agile mobility, low fuel consumption, low maintenance cost and fast return on investment.
Bulky heavy-duty mixers often face access restrictions on narrow rural roads and tight job sites. That’s why the compact Dongfeng
4×2 6.3m³ Concrete Mixer Truck stands out. It is a highly cost-effective light-duty mixing vehicle tailored for short-distance and small-batch concrete transportation. In this article, I will elaborate on its full specifications, core advantages, application scenarios, selection guidelines and daily maintenance tips based on practical site operation experience.
Table of Contents
1. Product Overview of Dongfeng 4×2 6.3m³ Concrete Mixer Truck
2. Core Structure & Professional Configuration Details
3. Key Advantages & Performance Strengths
4. Real Application Scenarios in Construction Projects
5. Buying Guide: How to Select a Compact Mixer Truck
6. Daily Operation & Maintenance Tips
7. Frequently Asked Questions (FAQ)
1. Product Overview of Dongfeng 4×2 6.3m³ Concrete Mixer Truck
The Dongfeng 4×2 6.3m³ concrete mixer truck is a mature light-duty construction vehicle developed based on the mass-produced Dongfeng light truck chassis. It features compact body size, flexible maneuverability and stable mixing performance, specially designed for small and medium construction scenarios with narrow road conditions and short-haul transportation demands.
Core Basic Parameters
Effective Mixing Volume: 6.3m³ medium capacity, ideal for small-batch concrete supply
Drum Working Performance: 0–14rpm stepless hydraulic speed regulation; concrete residual rate ≤ 0.7%, realizing uniform mixing without material segregation
Auxiliary Accessories: 320L stainless steel washing water tank, thickened feeding and discharging chutes, splash guard, safety climbing ladder and standard maintenance platform
With standardized production and reliable overall configuration, this model has become the preferred compact mixer truck for rural construction, small batching plants and engineering equipment rental businesses.
2. Core Structure & Professional Configuration Details
2.1 Mature & Reliable Power System
Equipped with a 170HP 4-cylinder Yunnei engine, the power assembly is mature and widely popular in the light truck industry. It features stable output, low failure rate and excellent fuel economy for short-haul transportation within 30km. The nationwide dense service network and easily accessible spare parts greatly reduce daily maintenance difficulty and operating costs.
2.2 Mass-Produced Stable Chassis
Built on the proven Dongfeng Forica light truck platform, the 4×2 single rear axle chassis adopts a short wheelbase compact design. The whole vehicle is lightweight and flexible, with precise chassis tuning that fully adapts to frequent start-stop and low-speed operation in complex small-site environments. The reliable chassis structure ensures long-term stable operation with low breakdown frequency.
2.3 Standard Practical Auxiliary Configuration
The truck is equipped with a complete set of practical auxiliary devices. The 320L stainless steel water tank supports convenient on-site cleaning after operation. Thickened inlet and outlet chutes and splash guards effectively prevent concrete splashing and material waste. The matched safety ladder and maintenance platform ensure safe and convenient daily inspection and maintenance work.
3. Key Advantages & Performance Strengths
3.1 Compact Body & Excellent Site Adaptability
Thanks to the 4×2 short wheelbase design and 6.3m³ medium capacity layout, the vehicle is small and agile. It can easily pass narrow rural roads, urban village lanes and tight construction sites where large mixer trucks cannot enter, realizing unobstructed concrete feeding for township projects and rural self-built houses.
3.2 Mature Mass-Produced Chassis with Low Maintenance Cost
Adopting the mature Dongfeng mass-production chassis and widely used Yunnei power, the whole vehicle has high market popularity and strong component versatility. Spare parts are cheap and easy to purchase, and the after-sales service coverage is nationwide. Compared with special heavy-duty mixers, its daily maintenance threshold and comprehensive cost are much lower.
3.3 Fuel-Efficient Operation & Fast ROI for Short Hauls
The light curb weight matched with 170HP high-efficiency engine achieves extremely low no-load and light-load fuel consumption. It is perfectly suitable for short-distance transportation within 30km. For small concrete batching plants and equipment rental companies, this model greatly reduces daily operating costs and brings faster capital return on investment.
3.4 High-Quality Uniform Mixing Performance
Supported by the hydraulic stepless speed regulation system, the mixing drum operates stably with adjustable speed. The concrete residual rate is controlled within 0.7%, ensuring uniform mixing without segregation. It can stably output high-quality concrete that fully meets the construction standards of rural and small municipal projects.
4. Real Application Scenarios in Construction Projects
With its flexible mobility, low operating cost and reliable mixing quality, the Dongfeng 4×2 6.3m³ concrete mixer truck is widely applied in various small and medium engineering scenarios:
Rural self-built house construction and rural road renovation
Township municipal engineering and small infrastructure projects
Urban village reconstruction and old community floor renovation
Small commercial concrete batching plant short-haul distribution
Engineering equipment rental business for small-scale projects
In actual operation, this compact mixer truck solves the problem of difficult concrete delivery in narrow sites, ensuring continuous and efficient material supply for small projects.
Donfeng 4×2 6.3m³Concrete Mixer Truck (15T ) |
General | Chassis Brand | Dongfeng |
| Overall Dimension | 7420×2460×3580 mm |
| Cargo Box Dimension | 6.3m³ |
| GVW / Kerb Weight | 18000kg / 7000kg |
Cab | Cab Capacity | 2persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | Yunnei Power Engine |
| Power | 170Hp (120KW) |
| Displacement | 3760ml |
| Emission Standard | Euro2/3/4/5 |
Chassis | Drive Type | left or right hand drive |
| Transmission | 8J45TA |
| Wheelbase | 3800mm |
| Tyre Specification | 9.00R20 |
| Tyre Number | 6tyres and 1 spare tyre |
| Max Speed | 89 km/h |
| Paint | Metallic paint |
| Others | 5-ton reinforced cast axle, 10T single reduction drive axle, standard gear ratio 5.833 |
Superstructure | Capacity | 15T |
| Standard Configuration ：Domestic pump/motor/reducer as standard |
Optional | Optional configurations：Italy Bonfiglioli imported kits optional |
5. Buying Guide: How to Select a Compact Mixer Truck
Based on years of vehicle sales and on-site engineering experience, I recommend customers focus on 4 core points when choosing a light-duty concrete mixer truck:
5.1 Match Capacity with Project Scale
For rural scattered construction, township small projects and short-haul distribution, 6–7m³ compact mixers are the most cost-effective. Excessively large capacity will lead to higher fuel consumption and inflexible operation, while small capacity perfectly fits low-volume and multi-batch supply demands.
5.2 Prioritize Mature Mass-Produced Chassis
Choose mainstream mass-produced light truck chassis like Dongfeng. Mature platform means stable performance, universal spare parts and perfect after-sales service, avoiding high maintenance costs and difficult parts matching of special modified chassis.
5.3 Focus on Short-Haul Fuel Economy
For fleet rental and small batching plant daily operation, short-distance fuel consumption directly determines profit margin. Lightweight body + high-efficiency four-cylinder engine can effectively reduce long-term operating expenses.
5.4 Check Site Passability
For rural and urban village narrow road scenarios, short wheelbase 4×2 compact models must be selected to ensure flexible steering and smooth access to tight construction sites.
Correct selection of compact mixer trucks can reduce comprehensive operating costs by nearly 30% for small engineering teams and rental fleets.
6. Daily Operation & Maintenance Tips
Standardized daily operation and maintenance can effectively extend the service life of compact mixer trucks and maintain stable working performance. The practical suggestions are as follows:
Daily Operation Tips
Do not overload beyond the rated capacity to avoid hydraulic system and drum deformation damage
Thoroughly clean the mixing drum, feeding and discharging chutes with the water tank after each operation to prevent concrete solidification
Check hydraulic oil level and vehicle braking system before daily startup
Drive slowly and steer gently when passing narrow rural roads and crowded construction sites
Regular Maintenance Advice
Replace hydraulic oil regularly according to working frequency to ensure stable mixing power
Lubricate drum rotating parts and connecting components monthly to reduce mechanical wear
Regularly check the splash guard and chute fastening status to avoid loose parts
Inspect engine operating status and replace filter elements regularly to maintain fuel economy
With scientific maintenance, the service life of the Dongfeng 4×2 6.3m³ mixer truck can reach more than 8–10 years with ultra-low failure rate.
7. Frequently Asked Questions (FAQ)
Q1: What are the main applicable scenarios of this 6.3m³ compact mixer truck?A: It is mainly suitable for rural self-built houses, township municipal projects, urban village reconstruction, small floor renovation and short-distance concrete distribution of small batching plants, especially for narrow road environments where large mixers cannot pass.
Q2: Does this compact model guarantee concrete mixing quality?A: Yes. It adopts 0–14rpm hydraulic stepless speed regulation, with a concrete residual rate ≤0.7%. The mixing is uniform without segregation, fully meeting the construction quality standards of small and medium projects.
Q3: Why choose Dongfeng chassis for light-duty mixer trucks?A: Dongfeng light truck chassis is mass-produced and highly mature, matched with a popular Yunnei engine. It has a nationwide service network, cheap and easy-to-buy spare parts, and much lower daily maintenance costs than non-standard chassis.
Q4: Is this model cost-effective for rental fleets?A: Absolutely. It features low fuel consumption, low maintenance cost and wide applicability. It adapts to various small project orders, with fast return on investment and low operating risk, very suitable for equipment rental business.
Q5: What is the biggest advantage compared with large 6×4 mixer trucks?A: It has a compact and flexible body, strong passability on narrow roads, lower empty-load fuel consumption and lower overall purchase and operating cost, which is irreplaceable for rural and urban small-scale construction scenarios.
Conclusion
The Dongfeng 4×2 6.3m³ Concrete Mixer Truck is a highly targeted, cost-effective light-duty mixing equipment for modern small-scale and rural construction. It perfectly balances flexible maneuverability, reliable performance, fuel economy and low maintenance cost.
For rural construction teams, small concrete batching plants and engineering equipment rental companies, this compact mixer truck solves the pain points of difficult access for large vehicles and high operating costs. It is an ideal equipment choice to improve construction efficiency and maximize project profits in small and medium engineering projects.
