1. Product Overview

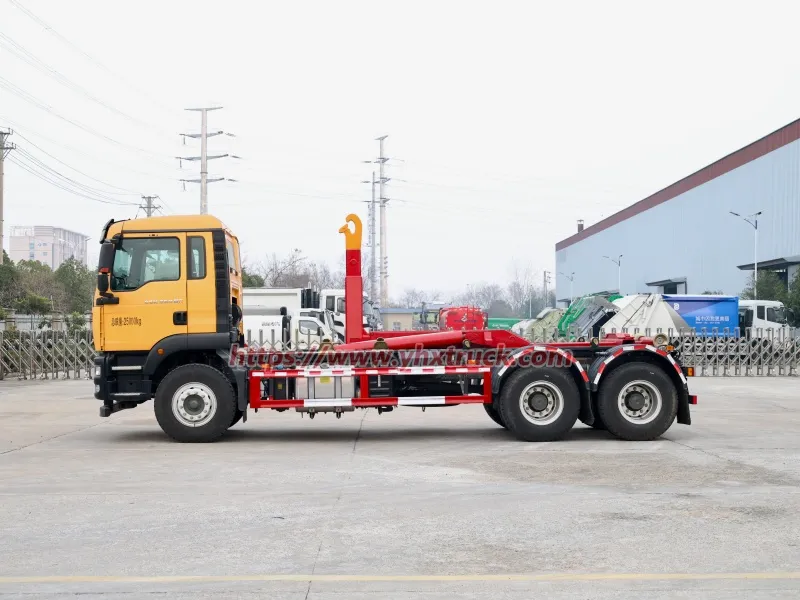

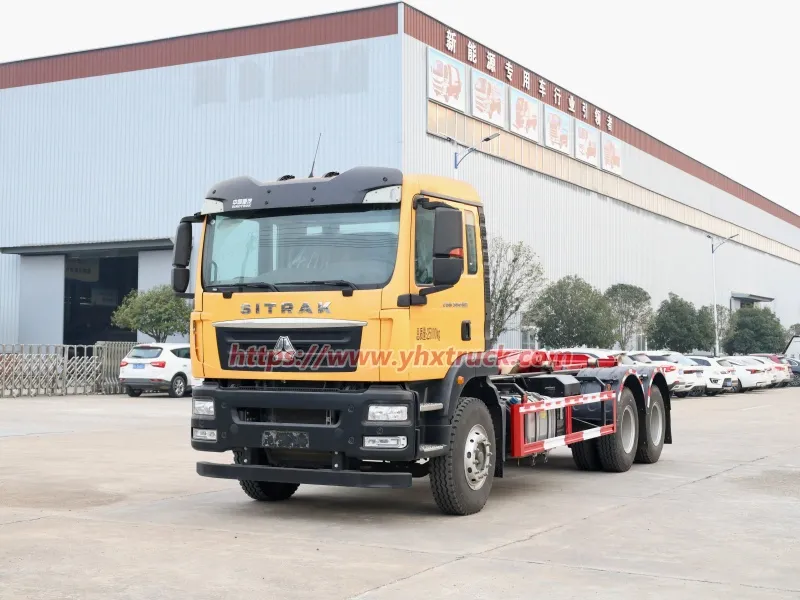

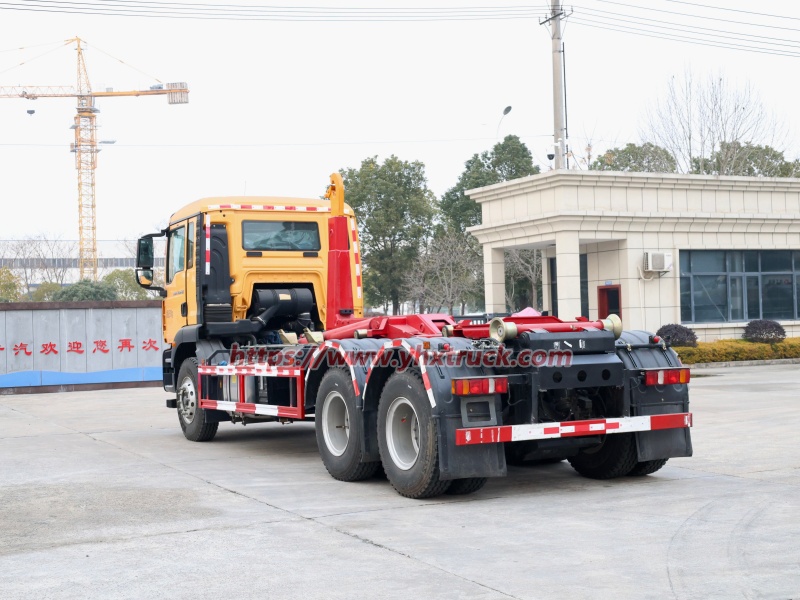

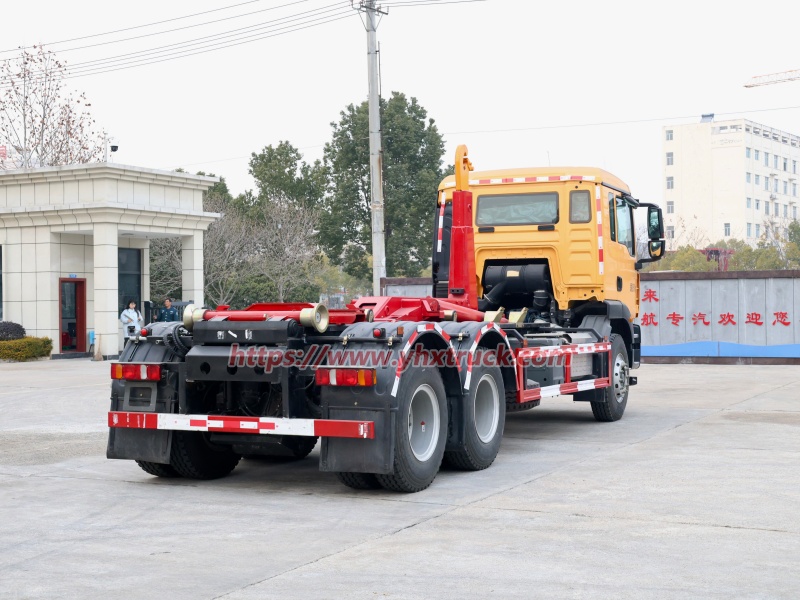

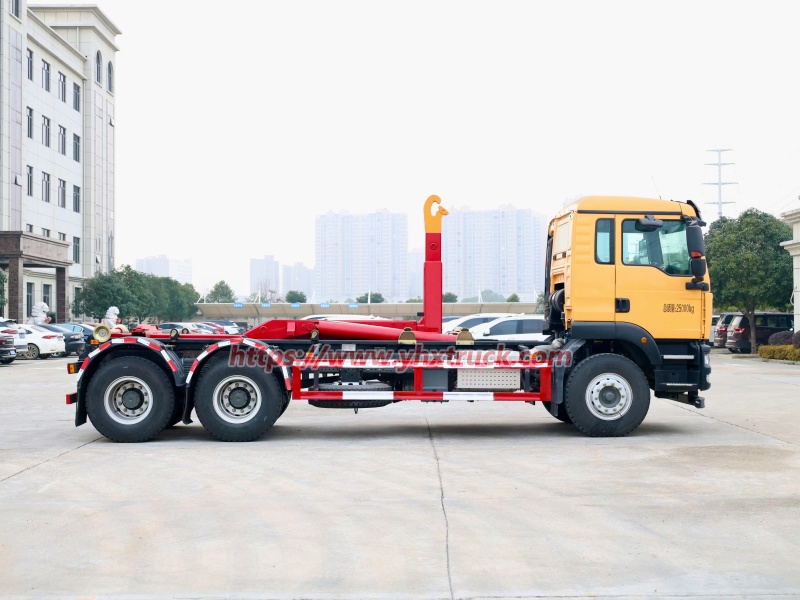

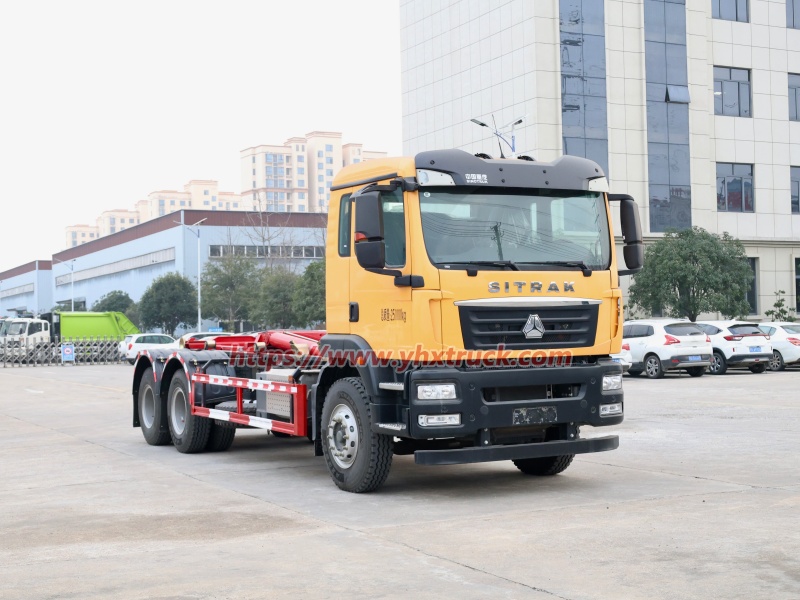

The Sinotruk Sitrak 6x4 hook arm garbage truck is refitted with high-end Sitrak heavy-duty chassis for professional sanitation work. Equipped with a reliable hydraulic hook arm system, the vehicle automatically completes container hooking, lifting, transportation and unloading without external equipment or extra labor. Detachable containers can be placed in communities, streets, factories and construction sites for storing domestic waste, construction waste, sludge and kitchen waste. With stable 6x4 heavy-duty structure, it is widely used for sanitation transfer, urban and rural environmental improvement and engineering waste collection.
Core Characteristics & Key Details
Premium Sitrak Heavy-duty Chassis
Adopting authentic high-end Sinotruk Sitrak heavy-duty chassis, the whole vehicle is specially refitted for high-intensity professional sanitation operations. It is configured with reinforced front axle and heavy-duty rear axle, with upgraded load-bearing structure and premium powertrain. Compared with ordinary medium-duty chassis, Sitrak chassis delivers stronger torque, more stable power output and superior cross-country performance, adapting to heavy-load transportation and harsh road conditions. It owns global after-sales recognition and mature spare parts supply system, suitable for long-term overseas heavy-duty sanitation projects.
Industrial-grade Reliable Hydraulic Hook Arm System
Matched with professional industrial-level hydraulic hook arm assembly, the whole hydraulic system undergoes factory precise calibration. It outputs steady and powerful lifting force, realizing full-automatic container hooking, lifting and unloading. All hydraulic pipelines adopt wear-resistant and explosion-proof materials, featuring low failure rate and smooth operation. Drivers can finish all sanitation procedures via in-cab control levers independently, requiring no external hoisting equipment and auxiliary labor.
Stable 6×4 Heavy-load Body Structure
Different from conventional 4×2 sanitation trucks, this vehicle adopts 6×4 three-axle layout with reinforced frame overall. It boasts ultra-high structural stability and heavy-load bearing capacity, resisting body torsion during full-load transportation. The optimized suspension system greatly improves driving stability on bumpy suburban roads, mountainous roads and muddy construction sites, breaking the load limit of light and medium-duty sanitation vehicles.
Fully Sealed Versatile Detachable Containers
The supporting detachable garbage containers adopt full-sealed environmental protection structure, compatible with multiple types of wastes including domestic waste, kitchen waste, construction waste and sludge. Containers can be placed dispersedly in residential communities, urban streets, industrial parks and construction sites for offline waste accumulation. Meanwhile, container overall dimensions and inner structure support full personalized customization to meet international environmental protection standards.
Core Advantages
1. This Sinotruk Sitrak 6x4 hook arm garbage truck adopts the one-truck multi-bin working mode, allowing one unit to serve multiple containers to reduce vehicle purchase and operation costs.
2. Equipped with genuine Sitrak high-quality chassis, reinforced front axle and heavy-duty rear axle, this hook arm garbage truck provides strong load capacity and excellent road adaptability.
3. The professional hydraulic hook arm system runs smoothly with powerful lifting force and low failure rate, supporting long-time continuous heavy-load operation.
4. The fully sealed containers prevent sewage leakage, garbage spillage and odor emission to avoid secondary pollution and meet international environmental standards.
5. All operations can be finished by one driver inside the cab to save labor cost, and container sizes can be customized.
6. The reliable Sinotruk Sitrak 6x4 hook arm garbage truck features high working efficiency and outstanding long-term cost performance.
2. Working Principle
The whole operation system consists of high-end Sitrak heavy-duty chassis power system, industrial-grade hydraulic hook arm system and detachable sealed garbage containers. After vehicle startup, the driver engages the power take-off to transmit engine power to the hydraulic pump, converting mechanical power into hydraulic pressure energy.
By manipulating integrated control handles inside the luxury Sitrak cab, hydraulic oil drives the heavy-duty hook arm to complete precise positioning, automatic hooking, lifting and container locking. The whole loading and unloading process requires no external hoisting equipment or on-site labor, realizing fully automatic sanitation operation.
Benefiting from split vehicle-container structure and mature 6×4 heavy-load chassis performance, idle sealed containers can be placed dispersedly at various waste collection points. After containers are fully loaded, the hook arm truck carries out cyclic replacement and centralized transportation. With stable power output and anti-torsion frame design, it maintains consistent working performance even under long-time heavy-load working conditions.
3. Daily Application Scenarios
Municipal Sanitation Transfer: Large-volume urban waste centralized transfer, heavy-duty daily sanitation operation, adapting to urban trunk roads
Industrial Parks: Collection and transportation of factory domestic waste and production residues, suitable for long-distance shuttle operation
Construction Projects: Heavy-load transportation of massive construction waste, engineering sludge and renovation debris
Urban & Rural Environmental Renovation: Cross-region waste disposal for rural remediation, river regulation and urban rectification projects
Large-scale Sanitation Tasks: Emergency waste cleanup and centralized disposal for large public activities, with high operating stability
4. Comparison with Traditional Sanitation Trucks
Vs 4×2 Ordinary Hook Arm Trucks: Conventional 4×2 sanitation trucks have limited load-bearing capacity, unable to transport heavy sludge and bulk construction waste. This Sitrak 6×4 heavy-duty truck owns stronger bearing capacity and road adaptability, supporting heavy-load continuous operation and expanding application scenarios.
Vs Integrated Fixed-bin Garbage Trucks: Traditional integrated waste trucks suffer from long unloading downtime and low turnover efficiency. This Sitrak hook arm truck adopts detachable container design, realizing non-stop cyclic transportation, greatly improving overall waste disposal efficiency.
Vs Ordinary Refitted Sanitation Vehicles: Common refitted hook trucks adopt low-grade chassis and mismatched hydraulic parts, with poor durability. This vehicle adopts original high-end Sitrak chassis + factory-matched hydraulic system, with premium quality, lower failure rate and longer service life.
Sinotruk Sitrak Hook Arm Garbage Truck 6x4 chassis (20ton Lifting Capacity) |
General | Chassis Brand | Sinotruk Sitrak 6×4 |
| Overall Dimension | 8470X 2520 X 3120mm |
| GVW / Kerb Weight | 25000kg /11520 kg |
Cab | Driving Room | G7–M Cabin with one small sleeper |
| Air Conditioner | W/ air conditioner |
Engine | Engine Model | MC11.43-30 engine. |
| Max Power | 430HP |
| emission standard | Euro 3 |
Transmission | Transmission Brand | ZF16S2230 TO, |
| Gear Configuration | 16-speed (16F&2R, manual gearbox,with ZF PTO) |
Chassis | Drive Axle | Front axle 9.5tons/ rear axle 16tons*2, drum brake, double reduction |
| Tire Specification | 315/80R22.5 tubeless |
Superstructure | Lifting Capacity | 20ton |
| Waste Box Material | Carbon steel |
| Mechanical hook arm, subframe, locking mechanism, hydraulic system, control and safety protection components |
5. Buying Guide
For overseas municipal sanitation departments, environmental contractors and sanitation fleet purchasers, verify key configurations before procurement to match local urban operation conditions:
Genuine Sitrak 6×4 Heavy-duty Chassis: Original high-end Sinotruk Sitrak chassis, reinforced axles and heavy-load frame, optional global emission certifications, worldwide official after-sales network and sufficient spare parts supply.
Industrial-level Hydraulic Hook Arm System: Professionally calibrated hydraulic assembly, strong lifting power, anti-fatigue structure design, adapting to long-time high-frequency heavy-load work.
International Standard Sealed Containers: Leak-proof and odor-proof sealed bin, compliant with global environmental protection regulations; customizable container capacity, size and anti-corrosion coating.
Heavy-load Adaptive Configuration: Upgraded shock absorption and load-bearing structure, suitable for harsh working conditions such as muddy roads, mountainous areas and heavy waste transportation.
Complete Export Certification: Full set of official export documents, supporting overseas government sanitation bidding and bulk engineering procurement.
6. Operation and Maintenance Tips
Standardized operation and regular maintenance can stabilize hydraulic performance, reduce failure rate and prolong vehicle service life:
6.1 Daily Operation Specifications
Check chassis oil level and hydraulic pipeline tightness before startup to avoid insufficient lifting force and oil leakage
Park the truck on flat ground before hooking garbage bins to prevent rollover caused by unbalanced stress
Align hook head with bin hanging points accurately, prohibit offset hooking to protect hydraulic components and bin structure
Operate hydraulic levers steadily, avoid sudden lifting or stopping to prevent hydraulic pressure impact
Check bin sealing status and locking device before driving to avoid garbage leakage and odor dispersion
6.2 Regular Maintenance Advice
Replace special hydraulic oil every 12 months to keep stable lifting output of hook arm
Add lubricant to hook arm rotating joints monthly to reduce mechanical abrasion and abnormal noise
Clean hydraulic filter regularly to prevent pipeline blockage and pressure attenuation
Inspect bin sealing strips quarterly, replace aging accessories to maintain environmental protection performance
Check heavy-duty rear axle lubrication status regularly to guarantee long-term heavy-load driving stability
7. Frequently Asked Questions
Q1: Official export name of this sanitation vehicle?
A1: Standard export names: Sinotruk Sitrak 6x4 Hook Arm Garbage Truck, Heavy-duty Detachable Container Sanitation Truck, Sitrak Hydraulic Hook Lift Waste Truck.
Q2: What kinds of waste can it transport?
A2: It is suitable for domestic waste, kitchen waste, construction waste and engineering sludge, widely used in municipal sanitation, industrial parks and environmental renovation projects.
Q3: What are the advantages of Sitrak 6×4 chassis?
A3: It adopts high-end commercial vehicle platform, with stronger load capacity, premium driving comfort and harsh road adaptability. It owns global official after-sales service system, reducing overseas operation risks.
Q4: Can old local garbage bins match this truck?
A4: Yes. It adopts universal international hanging interface, compatible with most mainstream detachable garbage containers, without extra refitting cost.
Q5: Is container customization available?
A5: Yes. We can customize container dimension, loading capacity, sealing structure and chassis emission standard to match local sanitation requirements.
Conclusion
Sinotruk Sitrak 6x4 hook arm garbage truck is a high-end heavy-duty sanitation equipment customized for large-load and high-intensity global waste disposal tasks. Equipped with premium Sitrak heavy-duty chassis and reliable industrial-grade hydraulic hook arm system, it integrates automatic waste loading, transportation and unloading functions.
Combining 6×4 heavy-load structure, one-truck multi-bin operation mode and international environmental protection sealing design, it solves insufficient load capacity and poor durability defects of medium-duty sanitation trucks. Featuring stable performance, labor-saving operation and long-cycle cost advantages, this Sitrak hook arm garbage truck is premium and reliable sanitation equipment for overseas heavy-duty sanitation projects, urban environmental upgrading and government bidding procurement.
