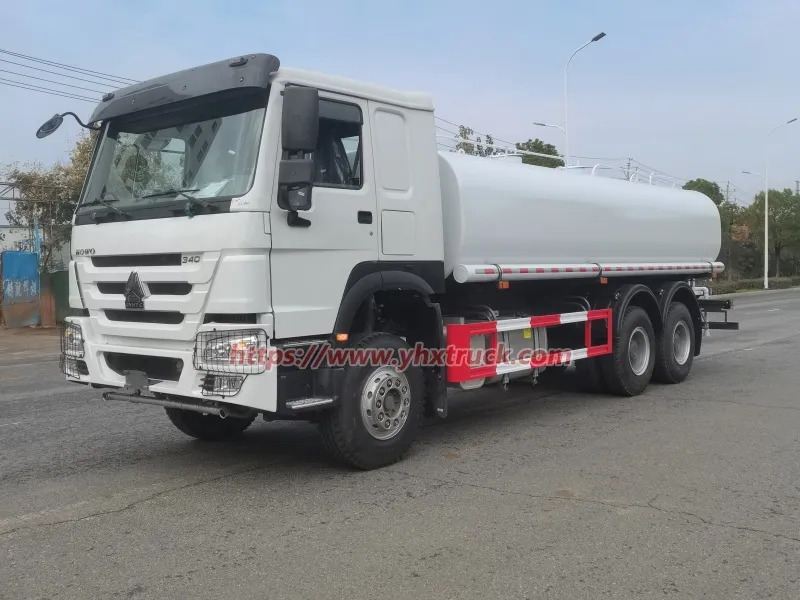

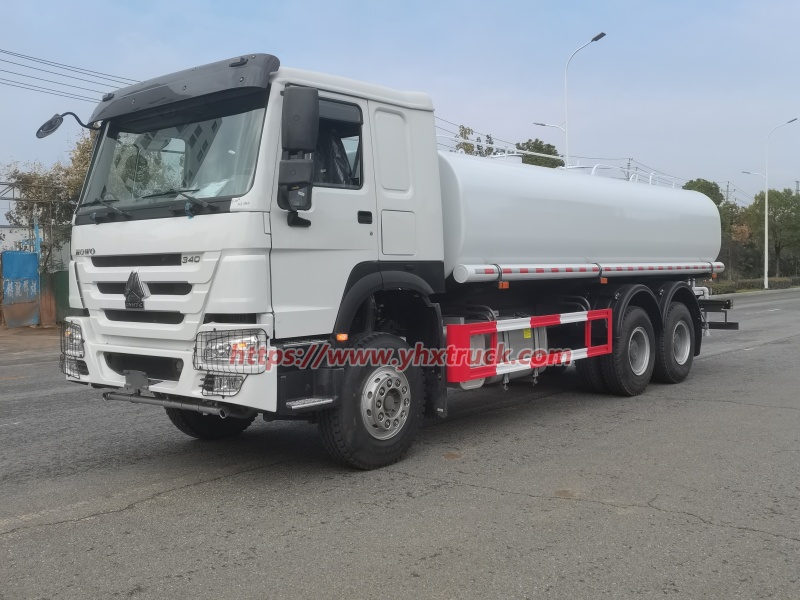

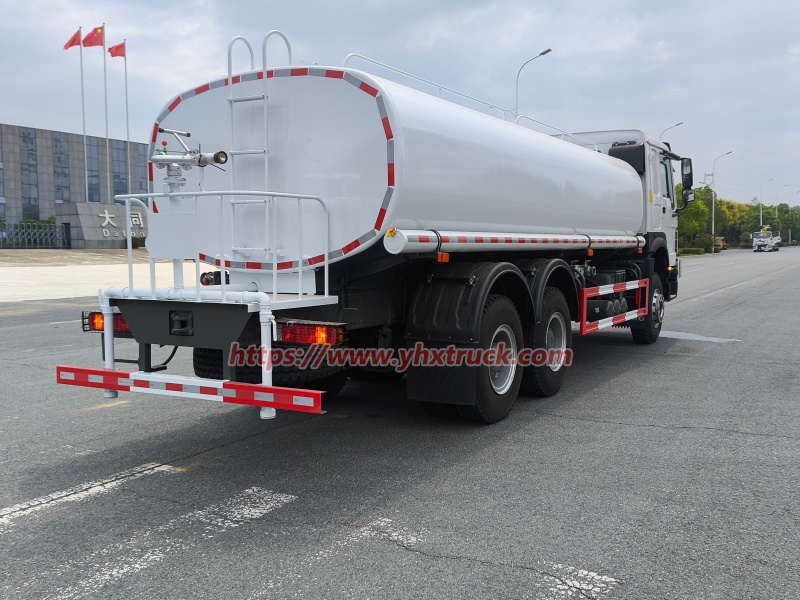

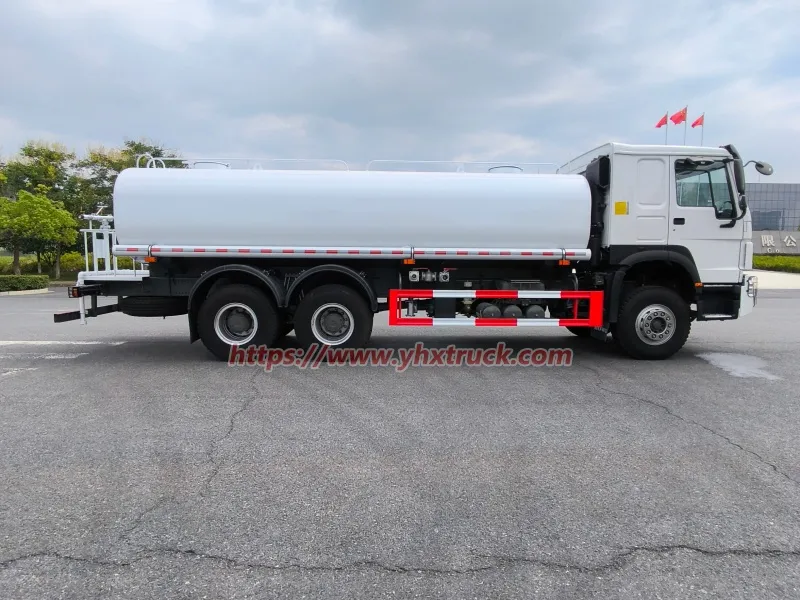

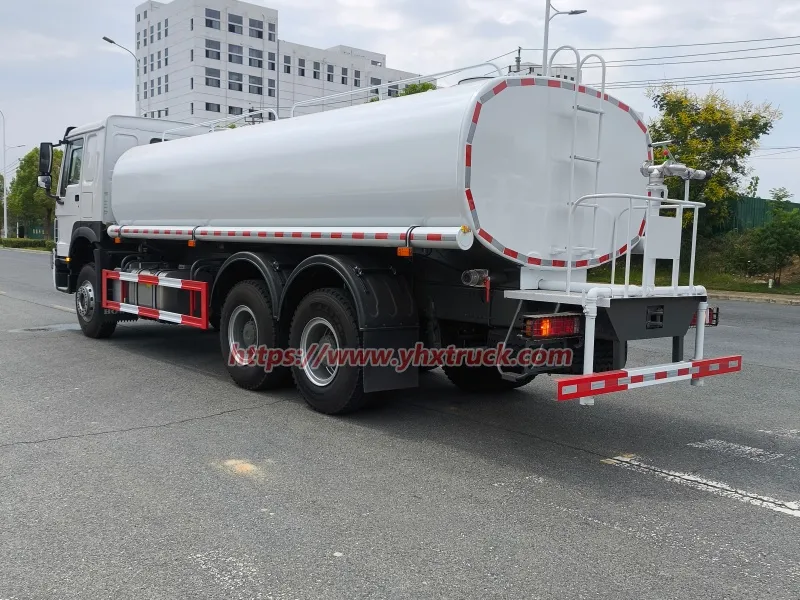

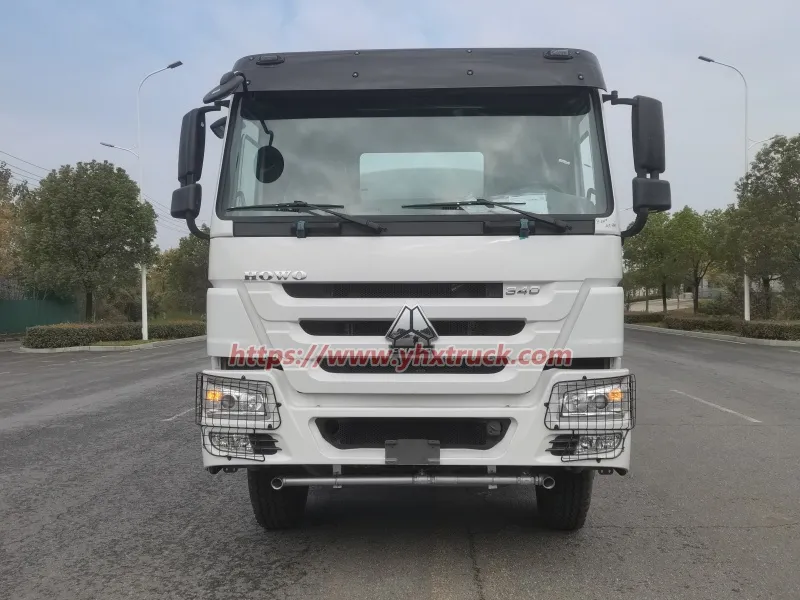

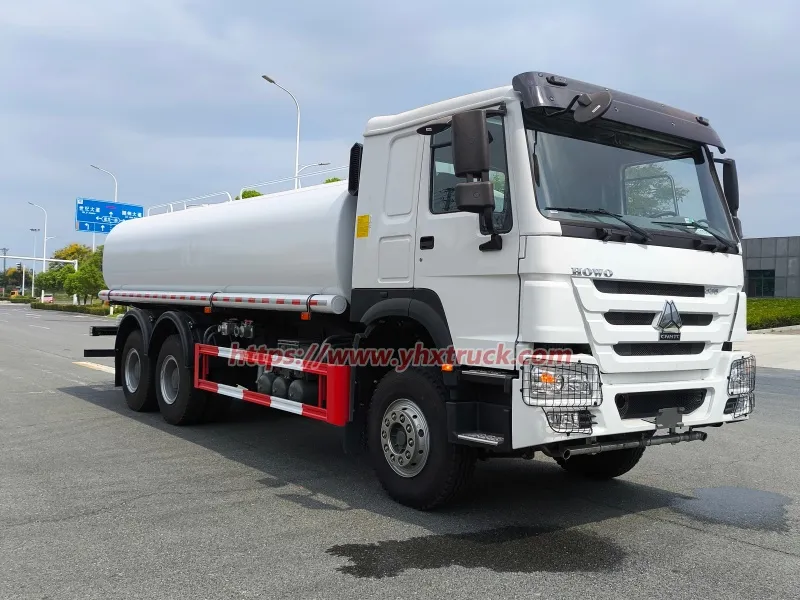

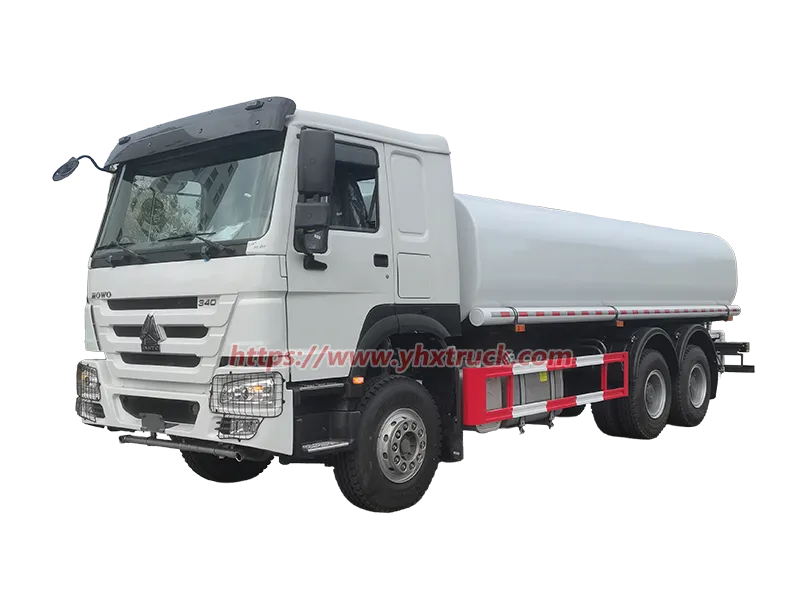

SINOTRUK HOWO 6x4(H77L) Dust Control Water Sprinkler Truck

    SINOTRUK HOWO 6x4(H77L) Dust Control Water Sprinkler Truck

    Contact us Inquiry
  • WhatsApp:+86-19171788596
  • Dust Control Water Sprinkler Truck SINOTRUK HOWO 6x4(H77L)

    chassis (20000litter Capacity)

    General

    Chassis Brand

    SINOTRUK HOWO 6×4


    Overall Dimension

    9820X2540X2600mm


    GVW / Kerb Weight

    26000kg /12060kg

    Cab

    Driving Room

    HOWO Cargo Truck,


    Air Conditioner

    W/ air conditioner

    Engine

    Engine Model

    WD615.47


    Max Power

    371horsepower


    emission standard

    Euro II

    Transmission

    Transmission Brand

    HW19710


    Transmission Box

    10-speed

    Chassis

    Drive Axle

    Dual MCX16ZG drum-brake rear axles, final drive ratio 4.803, 16-ton rated per axle


    Tire Specification

    12.00R20 mixed tread

    Superstructure

     Capacity

    20000litter


     Material

    Carbon steel


    Standard Configuration:Professional water pump ,Front spray, rear spray & side spray

    High-level sprinkler & water cannon ,Self-priming and water discharging system

    Optional

     Optional configurations:Fog cannon available


    View Less

Dust Control Water Sprinkler Truck Professional Introduction

The dust control water sprinkler truck is a multi-purpose municipal sanitation vehicle widely used for road cleaning, construction site dust suppression, mining dust removal and urban environmental governance. Combined with high-pressure fine mist atomization and full-coverage water sprinkling technology, this industrial sanitation truck is equipped with an anti-corrosion water tank, high-flow water pump and heavy-duty mist blowing device. It supports multi-angle operation including front road flushing, rear uniform watering, side green belt irrigation and long-distance fog spraying. Capable of reducing floating dust, lowering ambient temperature and purifying air haze, it is the ideal sanitation equipment for municipal roads, construction sites, mines, ports and industrial parks.


Product Advantages

1. Dual-function Integrated Design, High Cost Performance

This industrial dust control truck integrates fog mist dust suppression and traditional water sprinkling functions in one unit. It eliminates the need for purchasing separate sanitation equipment, effectively reducing procurement costs and saving transportation and storage space, which is highly cost-effective for municipal and industrial projects.

2. Long-range Atomization, Excellent Dust Removal Effect

Fitted with a high-power industrial mist cannon system, the equipment sprays ultra-fine water mist with long spraying distance and large coverage area. It can quickly settle floating dust and particulate matter in the air without causing road ponding, ensuring clean, dry and tidy road surfaces after operation.

3. Stable Operation Performance, Low Maintenance Cost

Adopting mature industrial manufacturing technology and high-quality matching parts, the whole vehicle runs stably with low failure rate. It features simple daily operation and convenient routine maintenance, greatly reducing long-term operational costs and equipment downtime.

4. Strong Adaptability for Complex Working Conditions

Designed with flexible chassis performance and humanized body structure, the dust control sprinkler truck adapts to various complex road conditions. It can work efficiently on wide urban roads and narrow construction lanes, perfectly meeting the harsh operation requirements of mines, ports and construction sites.

5. Multi-scene Application & High Practicality

Serving multiple scenarios including road cleaning, dust reduction, greening irrigation and ambient cooling, this all-in-one sanitation truck is widely recognized for municipal sanitation, industrial environmental protection and urban ecological improvement projects.







Dust Control Water Sprinkler Truck SINOTRUK HOWO 6x4(H77L)

chassis (20000litter Capacity)

General

Chassis Brand

SINOTRUK HOWO 6×4


Overall Dimension

9820X2540X2600mm


GVW / Kerb Weight

26000kg /12060kg

Cab

Driving Room

HOWO Cargo Truck,


Air Conditioner

W/ air conditioner

Engine

Engine Model

WD615.47


Max Power

371horsepower


emission standard

Euro II

Transmission

Transmission Brand

HW19710


Transmission Box

10-speed

Chassis

Drive Axle

Dual MCX16ZG drum-brake rear axles, final drive ratio 4.803, 16-ton rated per axle


Tire Specification

12.00R20 mixed tread

Superstructure

 Capacity

20000litter


 Material

Carbon steel


Standard Configuration:Professional water pump ,Front spray, rear spray & side spray

High-level sprinkler & water cannon ,Self-priming and water discharging system

Optional

 Optional configurations:Fog cannon available
