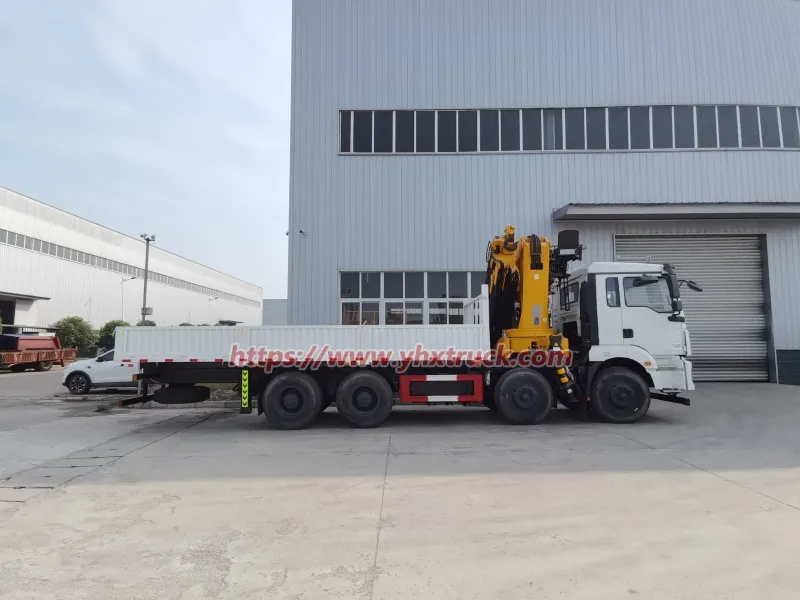

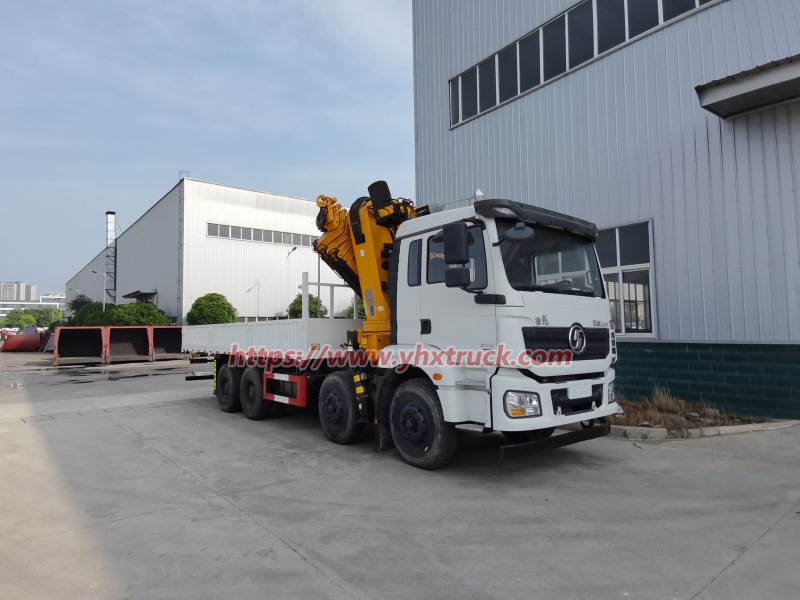

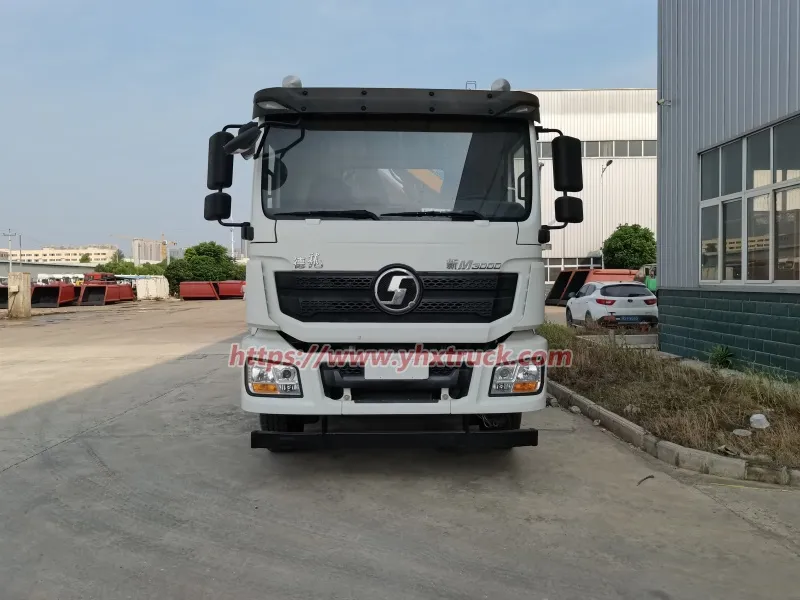

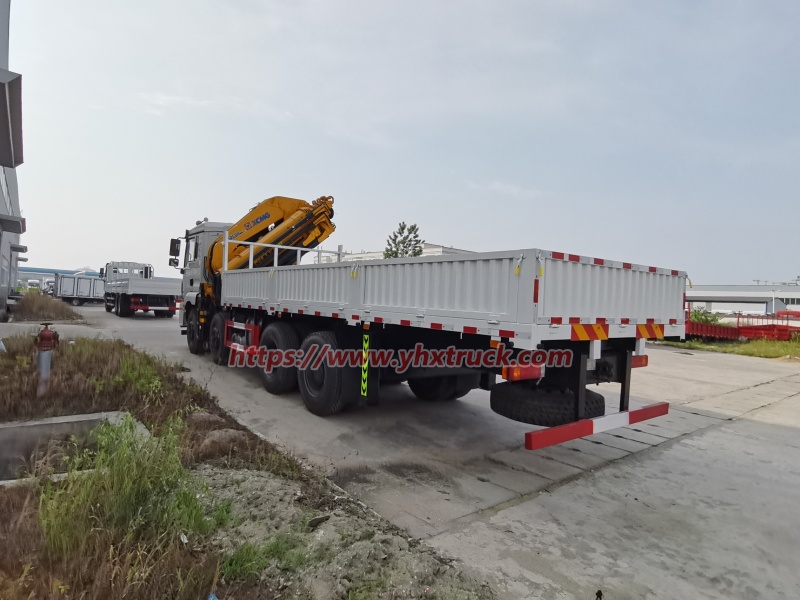

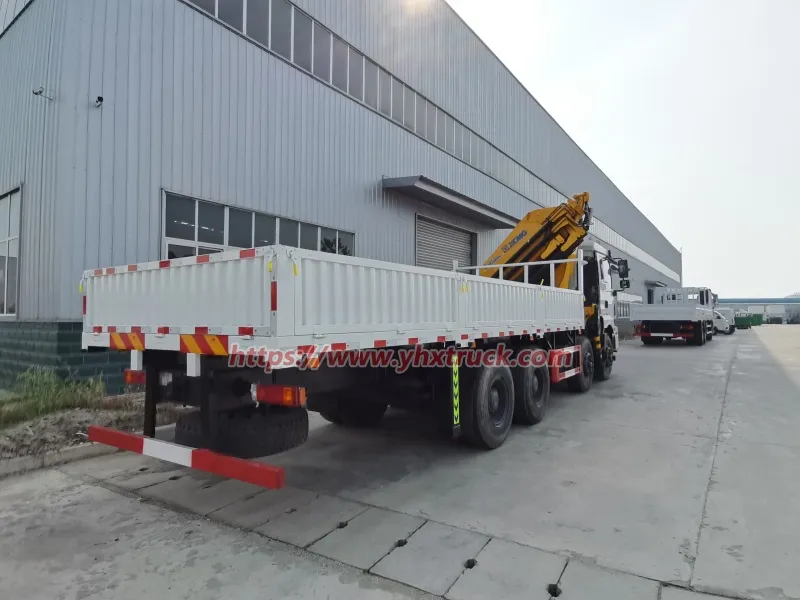

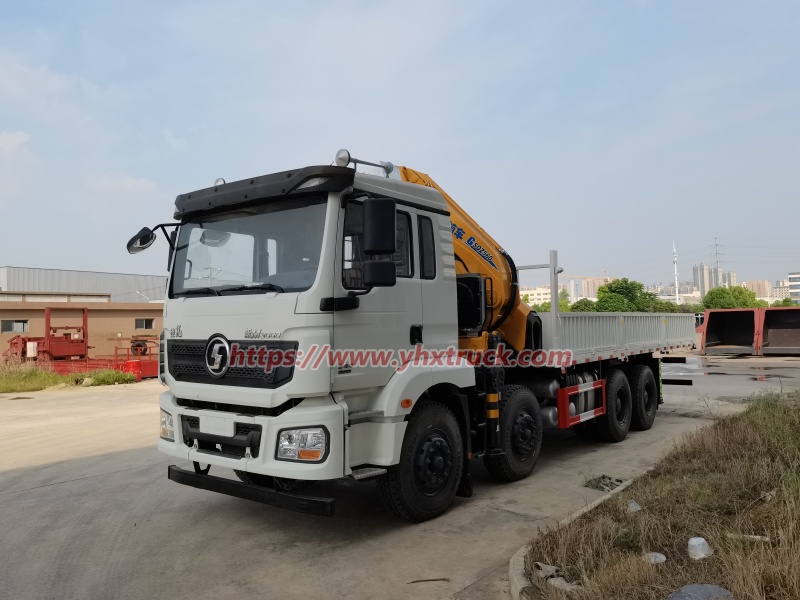

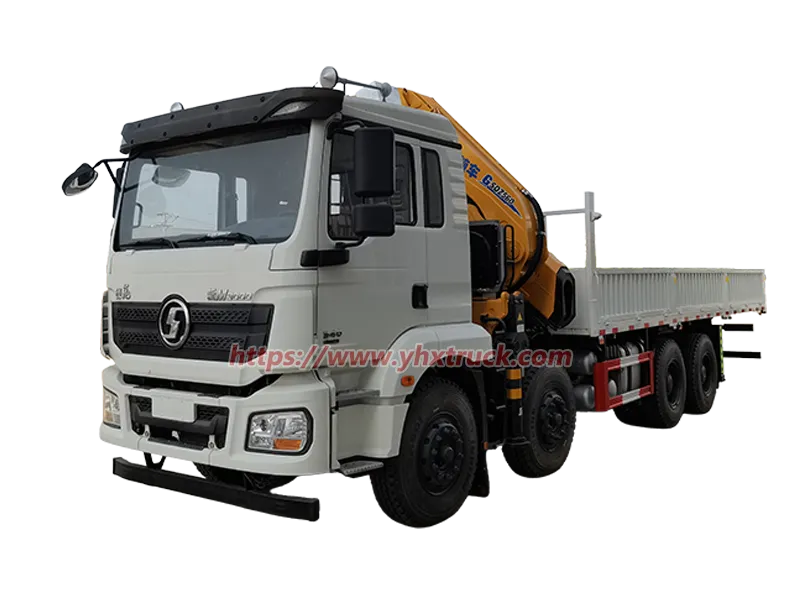

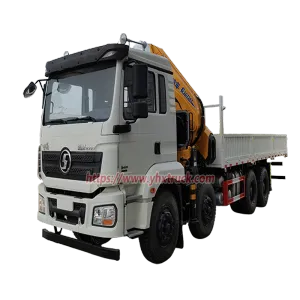

SHACMAN 6x2 Three Axle Hydraulic Folding Knuckle Boom Lorry Crane

E-mail：alice@xingyaotruck.com

WhatsApp：+86-19171788596

Shacman Truck with Crane
General	Chassis Brand	Shacman Delong
	Overall Dimension(L×W×H)	Approx 12000×2500×4000mm (customizable for different crane model and cargo box length)
	GVW / Kerb Weight	25000kg / approx 15000kg
Cab	Cab Type	High-roof Double Sleeper Cab
	Cab Capacity	3 seats (1 driver + 2 passengers) with front and rear sleeper berths
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
	Audio & Entertainment System	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Shacman original matching)
	Rated Power	340-400HP/250-294kW
	Displacement	10-12L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	6×4 Rear Double Axle (3 axles)
	Transmission	Fast 10/12-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300+1350mm / 3 axles (3800+1350mm optional)
	Tyre Specification	12.00R20 heavy-duty radial tires
	Tyre Number	10pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white weather-resistant finish for cab and cargo box, yellow finish for crane jib
Superstructure	Standard Rated Lifting Capacity	12 tons (10/16 tons optional)
	Crane Brand	XCMG (徐工) /domestic famous brand, imported brand optional
	Crane Type	Articulated knuckle boom Truck Mounted Crane, full hydraulic 360° continuous rotation
	Max Working Radius	≥18m (for 12 tons model)
	Max Lifting Height	≥20m (for 12 tons model)
	Hydraulic System	Domestic famous brand hydraulic pump & valves, working pressure 16-20MPa, stable operation, low noise, with overload protection
	Control Mode	In-cab manual lever control + ground remote control (wireless remote control optional)
	Outrigger System	4 hydraulic outriggers, with safety interlock device, can be operated independently or simultaneously, with automatic leveling function optional
	Cargo Box Dimension	Approx 8500×2400×400mm (customizable)
	Cargo Box Material	3mm thick Q235B high-strength carbon steel, with reinforced side rails and anti-slip floor
	Standard Accessories	Safety overload protection device, height limit device, anti-sway device, hydraulic oil tank with filter, emergency stop button, operation manual & maintenance kit
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

View Less

1. Product Overview

Shacman Truck with Crane, also known as Crane Truck, Lorry Crane and Loader Crane, is a professional multifunctional special engineering vehicle. A truck-mounted crane is a specialized vehicle integrating a hydraulic crane with a Cargo Truck chassis, designed for lifting, lowering, and transporting heavy loads. It combines mobility and lifting capability in one unit.

This Shacman crane truck is a portable boom crane mounted on a heavy, modified Shacman truck chassis. It uses hydraulic telescoping or knuckle booms to lift and move materials, offering excellent mobility for construction, logistics, and utility work. The whole vehicle adopts a reasonable and compact structure, consisting of four core parts: truck chassis, cargo bed, hydraulic crane (telescopic/knuckle boom optional), and stabilizer outriggers.

In terms of lifting capacity, the standard models cover 2–20 tons for small to medium-duty operation, fully meeting most conventional engineering and logistics working demands. Custom heavy-duty models are available with a lifting capacity of over 100 tons, which can easily cope with various ultra-heavy load construction tasks. Supported by reliable Shacman heavy-duty chassis quality, the whole vehicle features stable performance and high comprehensive versatility.

2. Working Principle

The Shacman Truck with Crane adopts mature and stable full hydraulic transmission working principle. The high-quality Shacman heavy-duty chassis provides stable and sufficient power to drive the entire hydraulic system, realizing core functions including hydraulic lifting, boom extending and retracting, as well as 360° full free rotation. Operators can flexibly adjust the working radius and lifting height according to different working conditions to complete accurate material lifting and handling.

Before heavy-load operation, the matching stabilizer outriggers can be fully extended to form a stable supporting base for the whole vehicle. The supporting structure effectively improves the balance of the truck body, prevents shaking and tilting during full-load lifting, and ensures stable and safe operation of the equipment. Both hydraulic telescopic boom and knuckle boom run smoothly and sensitively with low failure rate, supporting long-time continuous outdoor working.

3. Daily Application Scenarios

With dual functions of lifting and transportation and excellent flexible mobility, the Shacman Truck with Crane is widely used in multiple fields, including construction, logistics, municipal engineering, and emergency rescue.

In daily work, it can be used for building material loading and transportation, steel structure hoisting and handling, logistics heavy cargo loading and unloading, urban municipal infrastructure maintenance and renovation. In addition, it can quickly arrive at complex field sites to complete emergency rescue, obstacle removal and equipment handling tasks. Relying on the strong chassis passing performance of Shacman heavy-duty truck, it can adapt to urban roads, suburban construction sites and various complex working environments.

4. Comparison With Traditional Models

Traditional construction and logistics operations usually require separate deployment of transport trucks and fixed cranes, which leads to high comprehensive procurement costs, low equipment utilization rate and complicated on-site scheduling. Fixed cranes have poor mobility and cannot adapt to scattered and flexible working demands, while ordinary cargo trucks do not have lifting functions and have single application scenarios.

Compared with traditional single-function equipment, Shacman Truck with Crane has obvious comprehensive advantages. It has dual functions of lifting and transportation with high versatility, realizing one vehicle for multiple purposes and greatly improving equipment utilization. It features flexible mobility, easy to reach various working sites that fixed cranes cannot cover. It adopts a compact structure, which effectively saves working space and operating cost. Equipped with professional stabilizer outriggers, it ensures stable and safe heavy-load operation with higher overall construction safety.

Shacman Truck with Crane
General	Chassis Brand	Shacman Delong
	Overall Dimension(L×W×H)	Approx 12000×2500×4000mm (customizable for different crane model and cargo box length)
	GVW / Kerb Weight	25000kg / approx 15000kg
Cab	Cab Type	High-roof Double Sleeper Cab
	Cab Capacity	3 seats (1 driver + 2 passengers) with front and rear sleeper berths
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
	Audio & Entertainment System	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Shacman original matching)
	Rated Power	340-400HP/250-294kW
	Displacement	10-12L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	6×4 Rear Double Axle (3 axles)
	Transmission	Fast 10/12-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300+1350mm / 3 axles (3800+1350mm optional)
	Tyre Specification	12.00R20 heavy-duty radial tires
	Tyre Number	10pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white weather-resistant finish for cab and cargo box, yellow finish for crane jib
Superstructure	Standard Rated Lifting Capacity	12 tons (10/16 tons optional)
	Crane Brand	XCMG (徐工) /domestic famous brand, imported brand optional
	Crane Type	Articulated knuckle boom Truck Mounted Crane, full hydraulic 360° continuous rotation
	Max Working Radius	≥18m (for 12 tons model)
	Max Lifting Height	≥20m (for 12 tons model)
	Hydraulic System	Domestic famous brand hydraulic pump & valves, working pressure 16-20MPa, stable operation, low noise, with overload protection
	Control Mode	In-cab manual lever control + ground remote control (wireless remote control optional)
	Outrigger System	4 hydraulic outriggers, with safety interlock device, can be operated independently or simultaneously, with automatic leveling function optional
	Cargo Box Dimension	Approx 8500×2400×400mm (customizable)
	Cargo Box Material	3mm thick Q235B high-strength carbon steel, with reinforced side rails and anti-slip floor
	Standard Accessories	Safety overload protection device, height limit device, anti-sway device, hydraulic oil tank with filter, emergency stop button, operation manual & maintenance kit
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

5. Purchase Guide

Customers can select reasonable configurations according to actual working scenarios and load requirements. For open construction sites, long-distance handling and high-altitude lifting operations, the hydraulic telescopic boom is recommended for its larger working radius and higher lifting height. For narrow urban sites, limited space and flexible operation needs, the hydraulic knuckle boom is the optimal choice.

In terms of tonnage selection, 2–20 ton standard models fully meet small and medium-duty working requirements for construction, logistics and municipal engineering. For large-scale heavy industrial projects and ultra-heavy load operation, customized 100+ ton heavy-duty models are available. Adopting mature and durable Shacman heavy-duty chassis, the whole vehicle has strong bearing capacity and stable power, suitable for long-term high-frequency outdoor operation.

6. Operation and Maintenance

6.1 Standard Operation Specifications

Before operation, comprehensively inspect the Shacman chassis operating condition, hydraulic oil status, hydraulic pipeline tightness, crane boom integrity and stabilizer outriggers flexibility to eliminate potential faults. During operation, fully extend all stabilizer outriggers to ensure stable vehicle support. Operate hydraulic lifting, extending and rotating actions slowly and smoothly, and strictly prohibit overload operation and violent manipulation to guarantee construction safety.

6.2 Daily Maintenance Tips

Regularly replace hydraulic oil and filter elements to keep the hydraulic system clean, unobstructed and stably powered. Regularly inspect crane boom connecting parts, hydraulic pipelines and outrigger structures to prevent loosening, oil leakage and mechanical jamming. Clean dust and sundries on the truck and crane surface daily to reduce component wear and aging. Standard daily maintenance can effectively reduce failure rate and extend the service life of Shacman truck with crane.

7. Frequently Asked Questions (FAQs)

Q1: What is a Shacman Truck with Crane?

A1: It is a specialized vehicle integrating a hydraulic crane with a heavy-duty modified Shacman cargo truck chassis, designed for lifting, lowering, and transporting heavy loads. It combines mobility and lifting capability in one unit for construction, logistics, and utility work.

Q2: What boom types are optional?

A2: Hydraulic telescopic boom and knuckle boom are available to adapt to different working spaces and operation requirements.

Q3: What is the lifting capacity range?

A3: Typically 2–20 tons for small to medium-duty work, and heavy customized models can reach over 100 tons.

Q4: What are the core advantages of Shacman crane truck?

A4: Dual functions of lifting and transportation with high versatility, flexible mobility to reach various working sites, compact structure to save space and operating cost, and equipped with outriggers for stable and safe operation.

Q5: What are the main application fields?

A5: Widely applied in construction, logistics, municipal engineering and emergency rescue scenarios.

Conclusion

Shacman Truck with Crane is a high-versatility, cost-effective and stable multifunctional special vehicle. It is composed of professional Shacman truck chassis, cargo bed, hydraulic crane and stabilizer outriggers, supporting 360° full rotation, hydraulic lifting and extending, realizing dual-use functions of lifting and transportation.

Making up for the shortcomings of traditional single-function transport vehicles and fixed cranes, this Shacman crane truck features flexible mobility, compact structure and safe and stable operation. It effectively reduces operating costs and improves working efficiency, fully adapting to construction, logistics, municipal engineering and emergency rescue work. With complete tonnage options and dual boom configurations, it is a reliable mobile lifting and transportation solution for global customers.


Shacman Truck with Crane
General	Chassis Brand	Shacman Delong
	Overall Dimension(L×W×H)	Approx 12000×2500×4000mm (customizable for different crane model and cargo box length)
	GVW / Kerb Weight	25000kg / approx 15000kg
Cab	Cab Type	High-roof Double Sleeper Cab
	Cab Capacity	3 seats (1 driver + 2 passengers) with front and rear sleeper berths
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
	Audio & Entertainment System	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Weichai (Shacman original matching)
	Rated Power	340-400HP/250-294kW
	Displacement	10-12L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	6×4 Rear Double Axle (3 axles)
	Transmission	Fast 10/12-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3300+1350mm / 3 axles (3800+1350mm optional)
	Tyre Specification	12.00R20 heavy-duty radial tires
	Tyre Number	10pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white weather-resistant finish for cab and cargo box, yellow finish for crane jib
Superstructure	Standard Rated Lifting Capacity	12 tons (10/16 tons optional)
	Crane Brand	XCMG (徐工) /domestic famous brand, imported brand optional
	Crane Type	Articulated knuckle boom Truck Mounted Crane, full hydraulic 360° continuous rotation
	Max Working Radius	≥18m (for 12 tons model)
	Max Lifting Height	≥20m (for 12 tons model)
	Hydraulic System	Domestic famous brand hydraulic pump & valves, working pressure 16-20MPa, stable operation, low noise, with overload protection
	Control Mode	In-cab manual lever control + ground remote control (wireless remote control optional)
	Outrigger System	4 hydraulic outriggers, with safety interlock device, can be operated independently or simultaneously, with automatic leveling function optional
	Cargo Box Dimension	Approx 8500×2400×400mm (customizable)
	Cargo Box Material	3mm thick Q235B high-strength carbon steel, with reinforced side rails and anti-slip floor
	Standard Accessories	Safety overload protection device, height limit device, anti-sway device, hydraulic oil tank with filter, emergency stop button, operation manual & maintenance kit
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts
