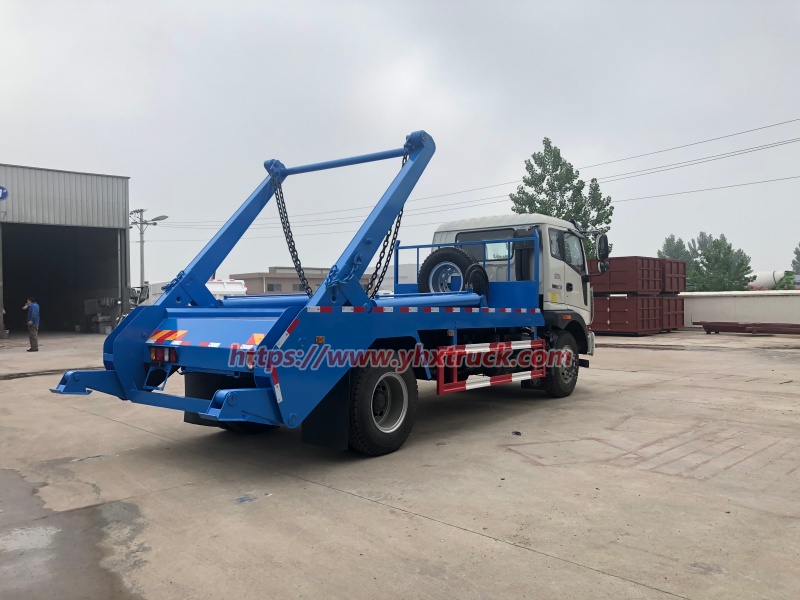

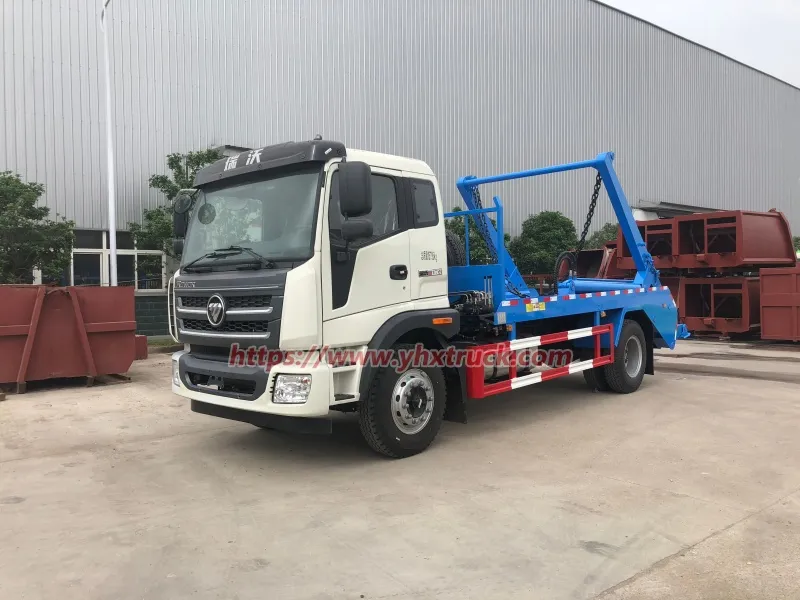

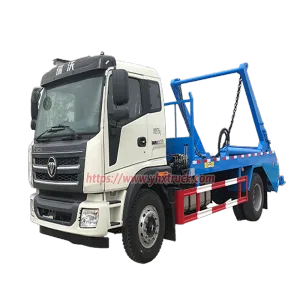

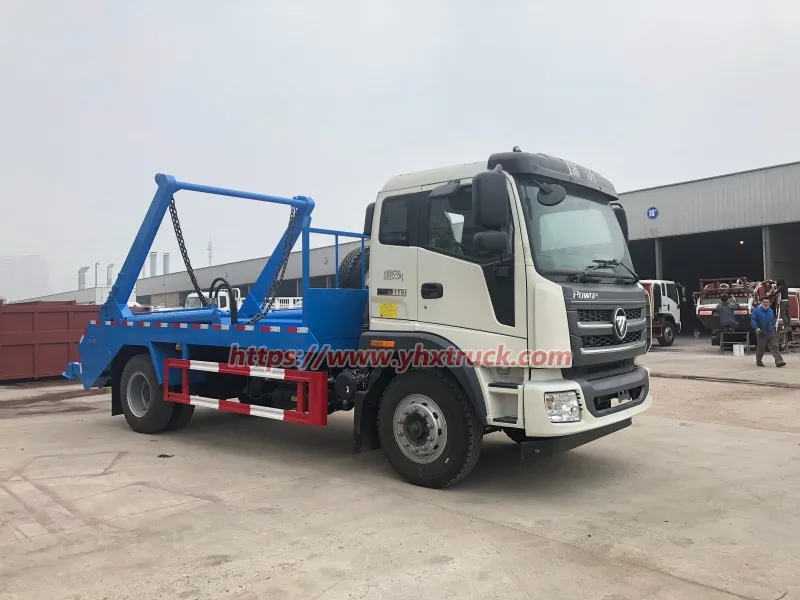

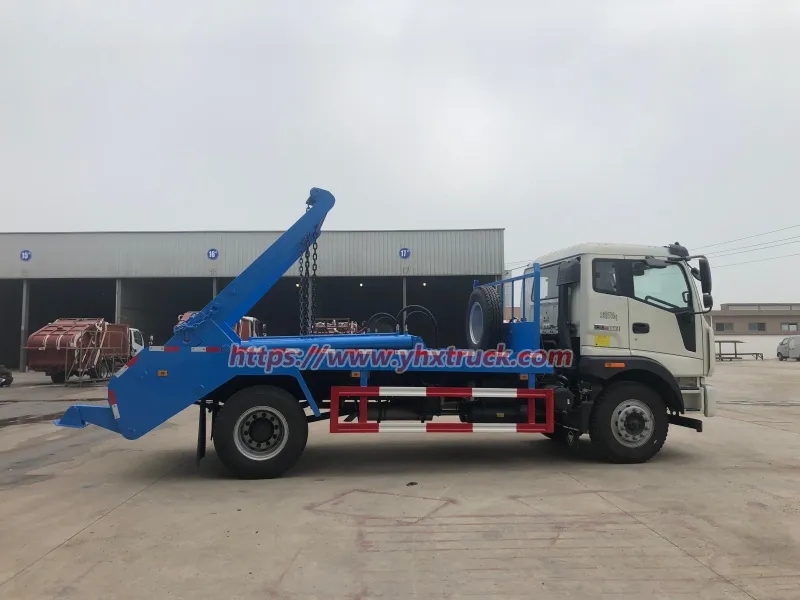

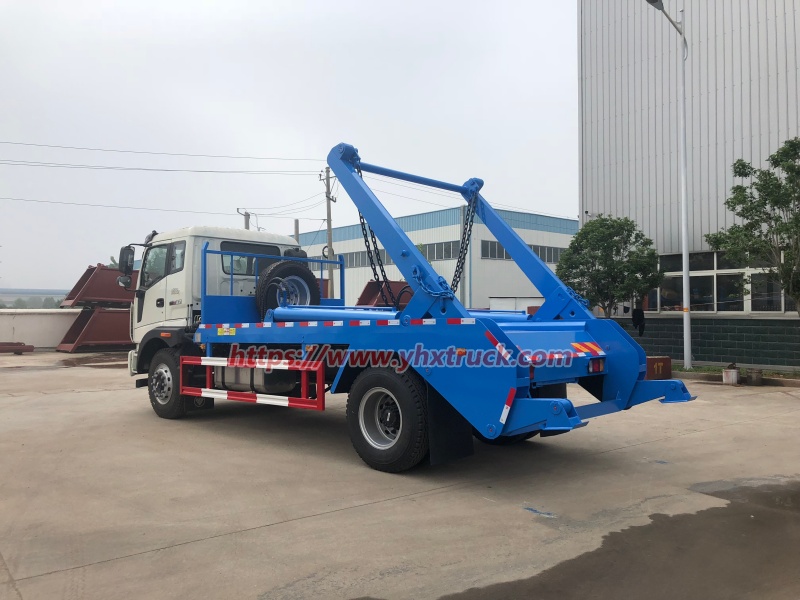

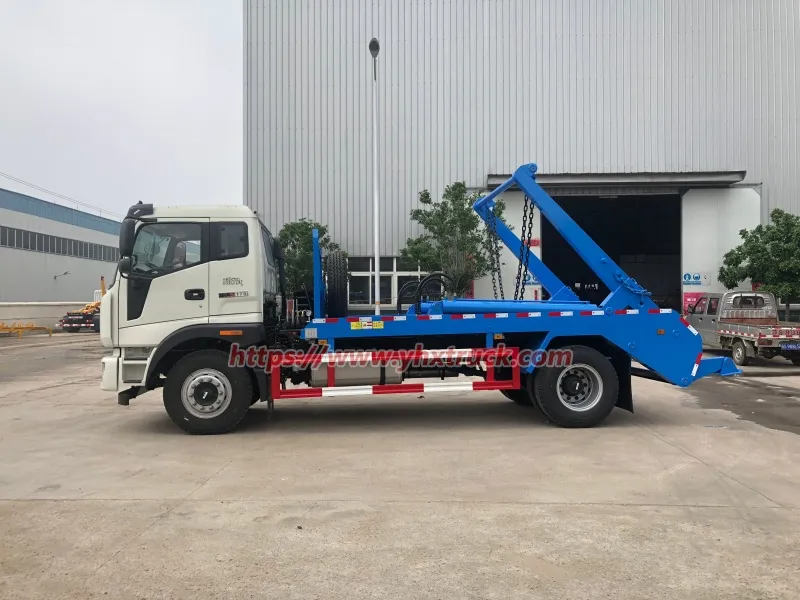

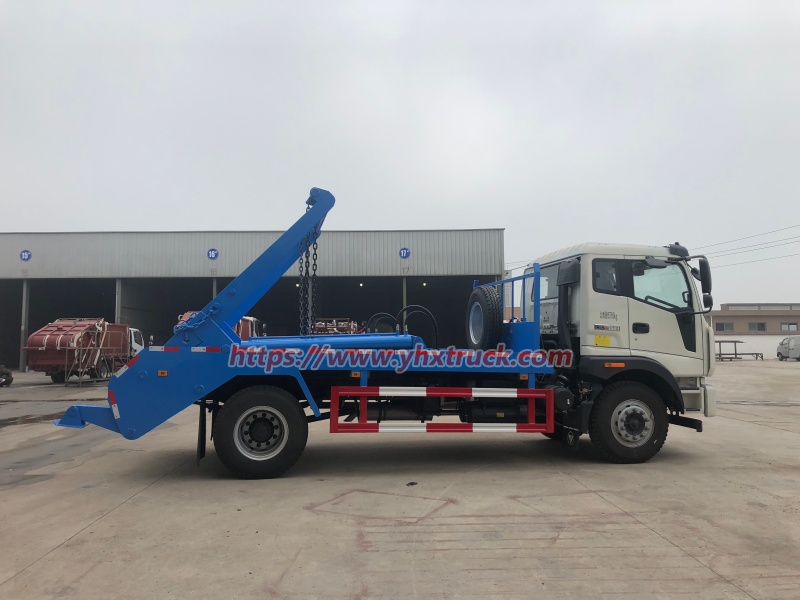

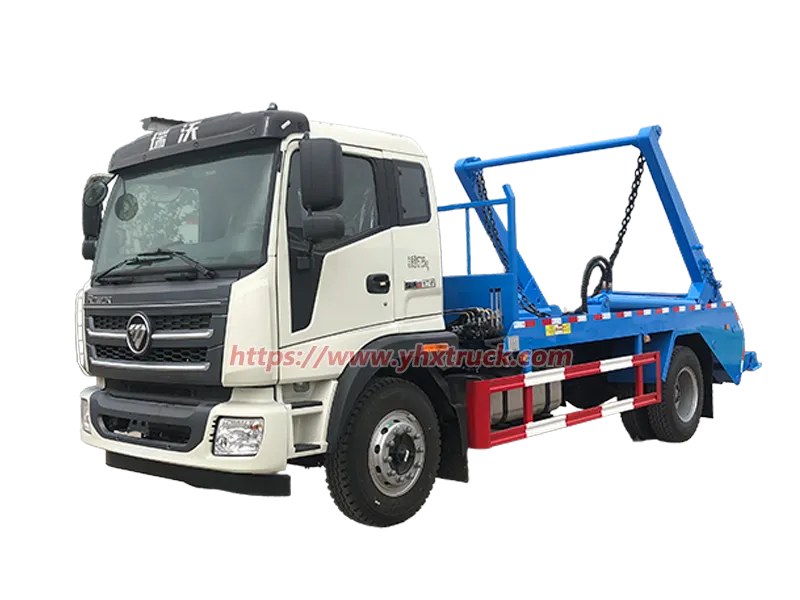

Foton Ruivo Swing Arm Skip Loader Garbage Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Hydraulic Swing Arm Truck
General	Chassis Brand	Foton Forland
	Overall Dimension(L×W×H)	Approx 7000×2400×3000mm
	GVW / Kerb Weight	11995kg / approx 5800kg
	Loading Capacity	5-8m³ / 5-8 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Sleeper Cab (Row-and-a-half) / Single-row Cab optional
	Cab Capacity	2 seats (1 driver + 1 passenger) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Foton Cummins / Yuchai (alternative optional)
	Rated Power	160-190HP/118-140kW
	Displacement	3.8-4.5L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6/8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3950mm / 2 axles (4500mm optional)
	Tyre Specification	8.25R20 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	5-8m³ / 5-8 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥8 tons, max lifting height ≥3.5m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 5-8m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

View Less

1. Product Overview

Hydraulic Swing Arm Truck (also widely known as a skip loader or roll-off truck) is a specialized sanitation vehicle designed to collect and transport waste using a hydraulically powered hook arm mechanism. Its defining feature is the ability to automatically load, unload, and detach a separate waste container (skip/roll-off bin) from the truck chassis. As a mature export-level sanitation model, Foton Ruivo Swing Arm Skip Loader Garbage Truck adopts optimized Foton Ruivo dedicated engineering chassis, balancing excellent road passability and heavy-load bearing capacity. It integrates modular hydraulic control technology, perfectly solving low-efficiency and high-labor-cost pain points of traditional waste collection vehicles, and has become mainstream sanitation equipment for global municipal environmental projects.

Core Characteristics & Key Details

Detachable Container Design

The truck chassis and waste bin are completely independent. There is no fixed connecting structure between the vehicle body and waste skip, so a single truck can serve multiple bins, enabling a continuous "truck moves, bins stay" workflow. Sanitation operators can place empty bins at scattered collection points in advance and recycle full waste bins in batches. This design drastically improves waste collection efficiency, especially for decentralized waste points or regions with variable daily waste volumes.

Hydraulic Hook Arm System

The core working component is the rear-mounted hook arm assembly. Forged with high-strength manganese steel, the whole arm structure is anti-deformation and wear-resistant. Powered by high-precision hydraulic cylinders, it performs the full cycle of grabbing, lifting, loading/unloading, and securing the waste bin stably in about 60 seconds. The matched hydraulic system adopts imported sealing accessories to prevent oil leakage; the whole operation is centralized inside the cab, which is simple and safe.

Multi-Purpose Versatility

The waste containers support diversified personalized customization to satisfy complex disposal demands. Optional configurations include sealed deodorant lids, hydraulic self-dumping capability, and corrosion-resistant coatings. Apart from daily municipal solid waste and household trash, this vehicle can also load construction debris, industrial scrap, garden litter and other bulk materials, realizing one truck for multiple purposes and maximizing client procurement benefits.

Typical Applications

It is widely used for standardized waste collection in urban streets, residential communities, factories, and towns. It also serves as an efficient short-haul transport tool for construction and renovation waste, particularly ideal for frequent shuttle operations between garbage transfer stations and dispersed collection points. Benefiting from moderate body size, it can smoothly pass narrow urban roads and community passages without traffic restrictions.

Core Advantages

1. One truck can operate with multiple separate waste containers to raise collection efficiency, cutting vehicle idle time greatly compared with ordinary garbage trucks.

2. Full hydraulic drive ensures quick loading and unloading with simple lever operation; new drivers can grasp operation essentials after short-term training.

3. Telescopic auxiliary support legs bear vertical pressure evenly during lifting procedures, keep vehicle balanced and avoid tilting accidents.

4. Sealed bins and waterproof rubber gaskets effectively prevent sewage leakage, odor diffusion and flying dust, reducing secondary environmental pollution.

5. Compact mechanical structure removes redundant transmission parts, bringing low breakdown rate and economical daily maintenance cost.

6. Widely adaptable for residential quarters, factories, towns and municipal sanitation projects, compatible with mainstream global environmental protection standards.

2. Working Principle

The overall working logic of Foton Ruivo Swing Arm Skip Loader Garbage Truck relies on chassis power output and rear hydraulic execution system. After turning on the power take-off (PTO), the Foton Ruivo original engine transmits stable power to the hydraulic gear pump, and the hydraulic pressure drives multi-way directional valves to synchronously control the swing arm and support legs.

Before loading and unloading operations, two pairs of hydraulic auxiliary support legs extend vertically to prop up the vehicle body, offset load torque and eliminate rollover risks. Subsequently, the rear hydraulic hook arm aligns and locks the hanging points of the waste bin, and automatically completes grabbing, lifting, positioning and locking actions within 60 seconds. All control buttons and hydraulic levers are installed inside the enclosed cab, isolating operators from dirty, odor-rich waste working environment.

Thanks to the fully separated design of chassis and waste bin, the truck can carry away full waste bins and leave empty bins at collection sites continuously. The circulating "bins stay, truck circulates" working mode avoids long-time on-site waiting, realizing uninterrupted waste collection and improving overall sanitation operation efficiency.

3. Daily Application Scenarios

Municipal Sanitation: Daily domestic waste collection on urban trunk roads, downtown streets, public squares and municipal service zones
Residential Community Cleaning: Regular garbage disposal for high-density residential compounds, villa zones and property communities
Construction Waste Transport: Short-distance transportation of building debris, renovation residues, concrete scraps and road maintenance waste
Industrial Park Service: Recycling of industrial leftover materials, packaging scraps and non-corrosive bulk production waste
Township Sanitation: Daily waste cleaning and transfer for suburban towns and rural centralized living zones

4. Comparison with Traditional Sanitation Trucks

Vs Integrated Garbage Trucks: Conventional integrated garbage trucks adopt fixed sealed carriage structure, which cannot separate bins from vehicle body. Sanitation teams have to stop working and wait for unloading, causing long idle time. Foton Ruivo swing arm skip loader adopts fully detachable bin design, realizing non-stop cyclic operation and improving daily waste handling capacity by nearly 35%.

Vs Ordinary Lifting Sanitation Vehicles: Most traditional waste vehicles are only equipped with simple single-point lifting structure, lacking matched hydraulic hook arm and safety locking device. They cannot adapt to diversified waste bins and face high tipping risks. Foton Ruivo model is equipped with customized rear swing arm and synchronous hydraulic stabilization system, with higher operation safety and compatibility.

Vs Manual Waste Collection: Manual garbage collection requires massive frontline labor, accompanied with germ infection, odor irritation and traffic safety hazards. This Foton Ruivo hydraulic swing arm truck supports single-person cab automatic operation, cutting manual labor cost by more than 70% and optimizing sanitation working conditions.

Hydraulic Swing Arm Truck
General	Chassis Brand	Foton Forland
	Overall Dimension(L×W×H)	Approx 7000×2400×3000mm
	GVW / Kerb Weight	11995kg / approx 5800kg
	Loading Capacity	5-8m³ / 5-8 tons
	Drive Orientation	Left-hand Drive (LHD)
Cab	Cab Type	Sleeper Cab (Row-and-a-half) / Single-row Cab optional
	Cab Capacity	2 seats (1 driver + 1 passenger) with rear sleeper berth
	Air Conditioner	Standard equipped
	Power Windows	Standard equipped
	Central Lock	Standard equipped
Engine	Fuel Type	Diesel
	Engine Brand	Foton Cummins / Yuchai (alternative optional)
	Rated Power	160-190HP/118-140kW
	Displacement	3.8-4.5L
	Emission Standard	Euro2/Euro3/Euro5/Euro6 optional
Chassis Parameter	Drive Type	4×2
	Transmission	6/8-speed manual gearbox with PTO interface
	Wheelbase/No.of axle	3950mm / 2 axles (4500mm optional)
	Tyre Specification	8.25R20 heavy-duty radial tires
	Tyre Number	6pcs + 1 spare tyre
	Max Speed	90km/h
	Paint	Standard: white cab + customized superstructure color
Superstructure	Loading Capacity	5-8m³ / 5-8 tons (customizable)
	Swing Arm System	Domestic famous brand hydraulic swing arm mechanism, single arm design
	Hydraulic System	Domestic brand hydraulic pump & valves, working pressure 16-20MPa
	Control Mode	In-cab manual lever control with safety interlocks; optional wireless remote control
	Swing Arm Performance	Max lifting weight ≥8 tons, max lifting height ≥3.5m, full loading/unloading cycle time ≤30s
	Standard Accessories	1 standard 5-8m³ garbage bin, anti-slip footstep, safety railing, hydraulic oil tank with filter, overflow protection device
	Anti-corrosion	Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts

5. Buying Guide

For global municipal purchasers, sanitation contractors and property management companies, please verify the following core configurations before purchasing Foton Ruivo swing arm skip loader garbage trucks to avoid configuration mismatch and after-sales hidden troubles:

Foton Ruivo Original Chassis: Adopt authentic Foton Ruivo engineering chassis, matched with Euro 5&Euro 6 emission diesel engine, featuring low fuel consumption, high torque and strong climbing ability. The whole vehicle adopts sandblasting anti-rust treatment to adapt to high-temperature, rainy and corrosive working environments overseas.

Standard Rear Hydraulic Swing Arm: Equip heavy-duty manganese steel rear hook arm, matched with international general hydraulic components, realizing 60-second full working cycle. All swing arm welding lines adopt secondary stress relief treatment to prevent long-term deformation.

Customizable Waste Skip Bin: Optional carbon steel or stainless steel bin material; support sealed anti-odor cover, hydraulic self-dumping, anti-corrosion paint customization. Clients can match bin volume according to local waste output and road regulations.

Safety Protection Accessories: Check complete hydraulic support legs, hydraulic anti-drop locking valve and pressure overload protection system. Standard emergency manual reset device is required to cope with sudden hydraulic failure.

Export Qualification: Confirm complete vehicle export certification, overseas after-sales spare parts supply channel and multi-language operation manual to guarantee cross-border usage validity.

6. Operation and Maintenance Tips

Standardized daily operation and periodic maintenance can stabilize hydraulic performance, prolong vehicle service life and reduce operational failure rate, which is essential for long-term sanitation fleet management:

6.1 Daily Operation Specifications

Inspect hydraulic oil level, pipeline abrasion and hook arm surface cracks before vehicle startup; strictly prohibit overloading waste bins beyond rated load
Fully stretch out hydraulic stabilizing legs before lifting bins; do not retract support legs in advance during hydraulic action
Accurately align swing arm hook with bin hanging points, forbid offset locking to avoid unilateral stress and bin falling
Operate hydraulic control levers gently, prohibit violent pulling to prevent hydraulic cylinder impact damage
Clean bin sealing grooves and sewage outlet after daily work to avoid dirt accumulation and sealing failure

6.2 Regular Maintenance Advice

Replace dedicated hydraulic oil every 12 months, clean hydraulic filter every quarter to prevent pipeline blockage
Fill lubricating grease to swing arm rotation joints every two weeks to reduce mechanical abrasion and jamming failure
Check hydraulic sealing rings and oil pipelines monthly to eliminate hidden oil leakage risks
Repair and spray anti-rust coating on swing arm and bin welding parts regularly to resist rainwater corrosion
Calibrate hydraulic lock and relief valve pressure every six months to ensure stable hydraulic output

7. Frequently Asked Questions

Q1: What are official international names of this sanitation vehicle?

A1: Its universal names include Foton Ruivo Swing Arm Skip Loader Garbage Truck, Hydraulic Swing Arm Truck, Skip Loader and Roll-off Garbage Truck.

Q2: What is the biggest difference from ordinary garbage trucks?

A2: It adopts rear-mounted independent hydraulic swing arm and fully detachable waste bin structure, realizing fast 60-second loading and unloading. It breaks the limitation of integrated carriages, with stronger working flexibility and wider waste adaptability.

Q3: Does it support single-person operation?

A3: Yes. The whole grabbing, lifting, transporting and unloading process can be finished by one driver inside the cab, without extra ground auxiliary staff, greatly cutting labor expenditure.

Q4: How to avoid secondary pollution during transportation?

A4: It can be matched with fully sealed customized bins. Equipped with waterproof gaskets and odor isolation structure, it blocks sewage leakage, dust flying and odor diffusion, fully complying with international environmental protection transportation regulations.

Q5: What safety configurations are equipped?

A5: The standard configurations include hydraulic stabilizing support legs, hydraulic anti-fall lock, pressure overload protection and emergency manual reset valve. It can effectively prevent vehicle tipping and bin falling, ensuring full-process operational safety.

Conclusion

Foton Ruivo Swing Arm Skip Loader Garbage Truck is a cost-effective hydraulic sanitation vehicle integrating waste collection, short-haul transportation and multi-scenario disposal. Centered on detachable bin design and mature hydraulic swing arm system, it solves the common defects of low efficiency, high labor cost, single usage and poor safety of traditional sanitation vehicles.

Supported by reliable Foton Ruivo original chassis, standardized international hydraulic parts and customizable waste bins, the vehicle features stable performance, low failure rate and convenient overseas after-sales maintenance. Suitable for municipal sanitation, industrial waste disposal, community cleaning and construction residue transportation projects, it is a high-quality export sanitation equipment for global environmental protection purchasers.
