Home > Products > Flatbed Truck > FAW 4×2 light Flatbed Truck

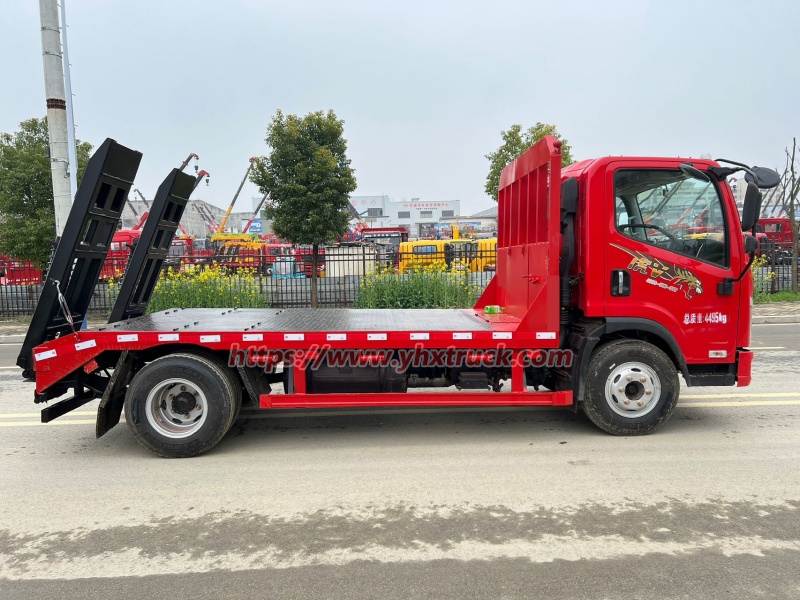

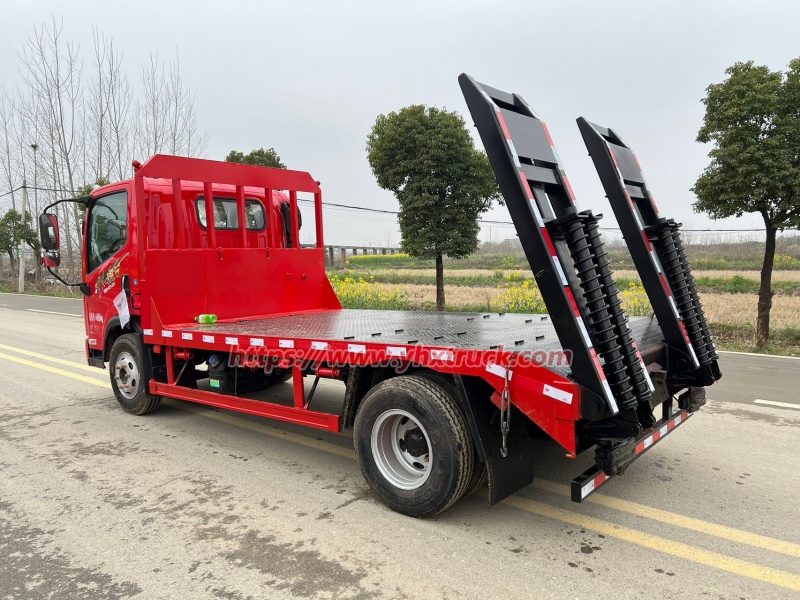

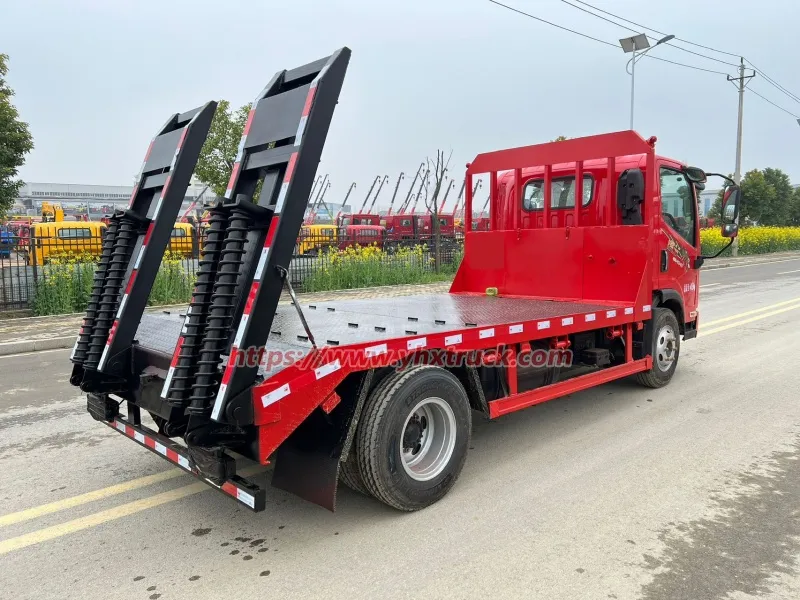

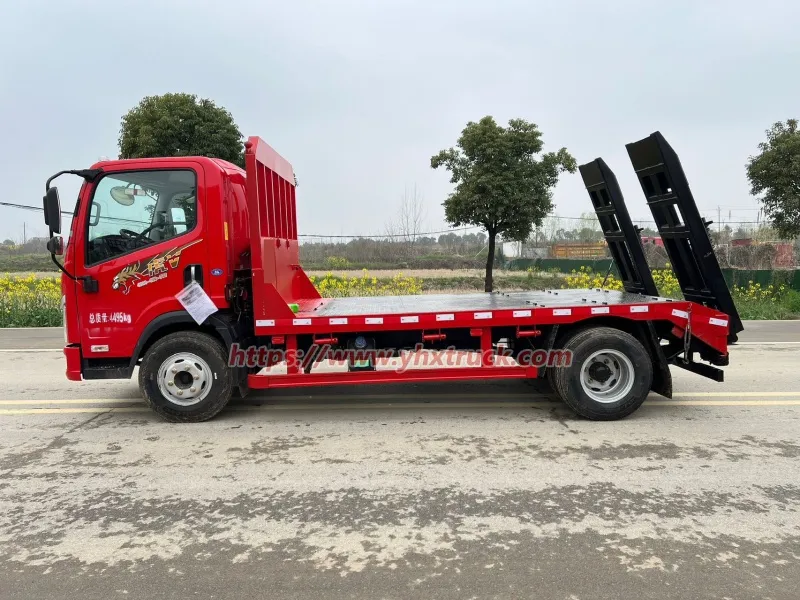

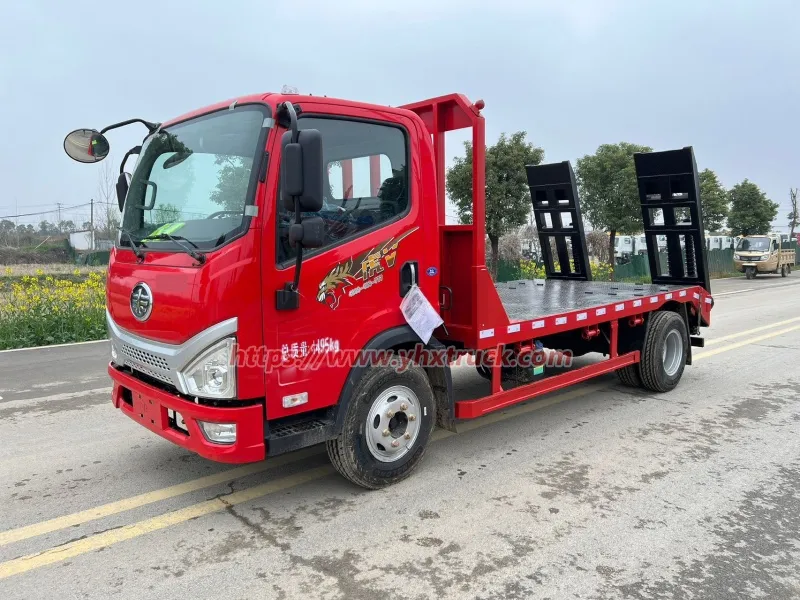

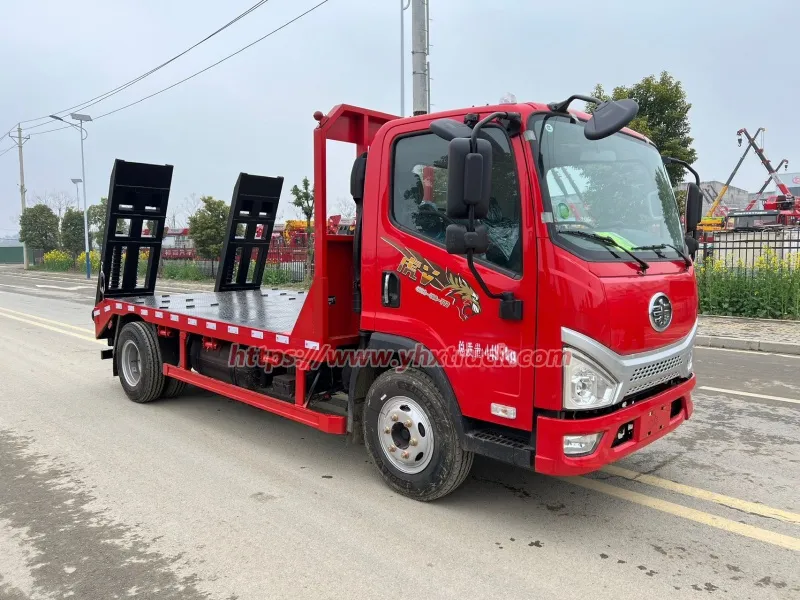

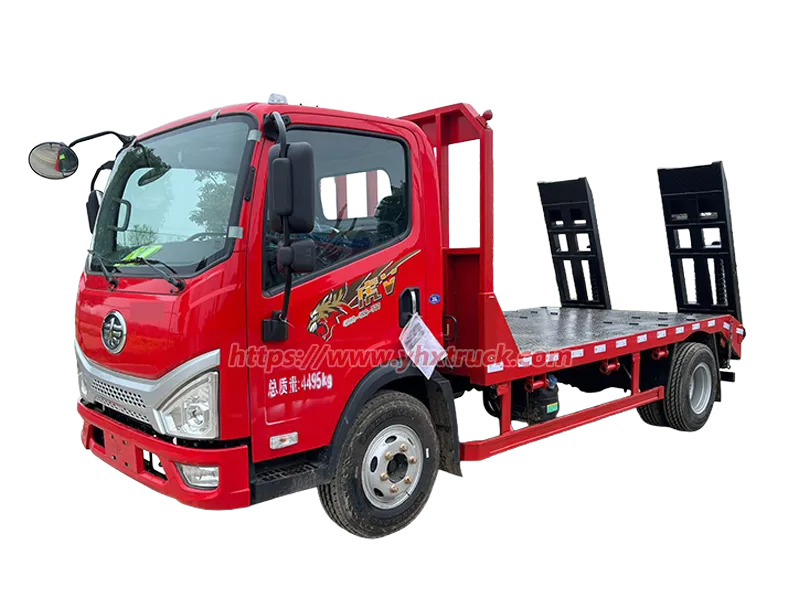

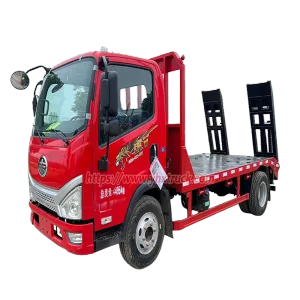

FAW 4×2 light Flatbed Truck

    FAW 4×2 light Flatbed Truck

    Contact us Inquiry
  • WhatsApp:+86-19171788596
  • FAW 4×2 light Flatbed Truck (8T )

    General

    Chassis Brand

    FAW

    Overall Dimension

    5995 X 2550 X2550 mm

    GVW / Kerb Weight

    4485kg / 1730kg

    Cab

    Cab Capacity

    2persons allowed

    Air Conditioner

    W/ air conditioner

    Engine

    Fuel Type

    Diesel

    Engine Brand

    YUNEI ENGINE

    Power

    150Hp (107 KW)

    Displacement

    2499ml

    Emission Standard

     Euro 4  Euro 5

    Chassis

    Drive Type

     left or right hand drive

    Transmission

    FAST 8JS85E Transmission

    Wheelbase/No. of axle

    3300,3600

    Tyre Specification

    7.00R16

    Tyre Number

    6tyres and 1 spare tyre

    Max Speed

    89 km/h

    Paint

    Metallic paint

    Others

     2T front steering axles & 6T heavy-duty rear axles

    Superstructure

     Capacity

    8T

    Standard Configuration 5mm patterned steel floor, 120 cross members, manually telescopic to 3m, double-spring ramp.

    Optional

     Optional configurationsThe platform adopts hydraulic telescopic and hydraulic ramp, and non-ramp version can be equipped as an option.



    View Less

FAW 4×2 light Flatbed Truck dimension: length 6.4–6.6 m, width 2.55 m; floor with 5 mm or 6 mm anti-slip patterned steel plate, reinforced by dense 100×100 square-tube cross members. Standard fitted with double-spring heavy-duty ramp; hydraulic folding ramp plus rear support legs available as option. Multiple lashing hooks arranged on deck; optional side widening and detachable side boards.

Registered rated payload: 6tons; actual legal carrying capacity: 8tons, suitable for 60~90 model small & medium-sized excavators.

FAW 4×2 light Flatbed Truck Advantages

·  Equipped with YUNNEI engine, good fuel economy, fits low-quality diesel widely used in Africa & Southeast Asia; spare parts easy to source locally, low maintenance cost.

·  Compact 4×2 chassis with small turning radius, excellent maneuverability on narrow village roads and construction sites.

·  Lower purchase cost, toll and fuel consumption vs 6×2/8×4 trucks, fast investment return for small fleet owners.

·  Reinforced double-layer chassis frame and thick patterned floor, heavy-load resistant and long service life.

·  Dual-purpose for machinery & general cargo, less vehicle idle time, stable income all year round.









FAW 4×2 light Flatbed Truck (8T )

General

Chassis Brand

FAW

Overall Dimension

5995 X 2550 X2550 mm

GVW / Kerb Weight

4485kg / 1730kg

Cab

Cab Capacity

2persons allowed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUNEI ENGINE

Power

150Hp (107 KW)

Displacement

2499ml

Emission Standard

 Euro 4  Euro 5

Chassis

Drive Type

 left or right hand drive

Transmission

FAST 8JS85E Transmission

Wheelbase/No. of axle

3300,3600

Tyre Specification

7.00R16

Tyre Number

6tyres and 1 spare tyre

Max Speed

89 km/h

Paint

Metallic paint

Others

 2T front steering axles & 6T heavy-duty rear axles

Superstructure

 Capacity

8T

Standard Configuration 5mm patterned steel floor, 120 cross members, manually telescopic to 3m, double-spring ramp.

Optional

 Optional configurationsThe platform adopts hydraulic telescopic and hydraulic ramp, and non-ramp version can be equipped as an option.



FAW 4×2 light Flatbed Truck (8T )

General

Chassis Brand

FAW

Overall Dimension

5995 X 2550 X2550 mm

GVW / Kerb Weight

4485kg / 1730kg

Cab

Cab Capacity

2persons allowed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUNEI ENGINE

Power

150Hp (107 KW)

Displacement

2499ml

Emission Standard

 Euro 4  Euro 5

Chassis

Drive Type

 left or right hand drive

Transmission

FAST 8JS85E Transmission

Wheelbase/No. of axle

3300,3600

Tyre Specification

7.00R16

Tyre Number

6tyres and 1 spare tyre

Max Speed

89 km/h

Paint

Metallic paint

Others

 2T front steering axles & 6T heavy-duty rear axles

Superstructure

 Capacity

8T

Standard Configuration 5mm patterned steel floor, 120 cross members, manually telescopic to 3m, double-spring ramp.

Optional

 Optional configurationsThe platform adopts hydraulic telescopic and hydraulic ramp, and non-ramp version can be equipped as an option.
