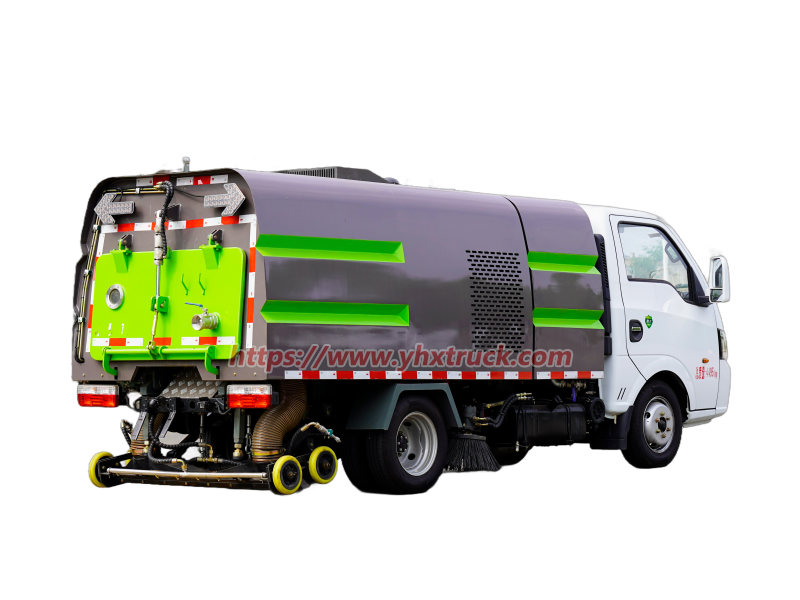

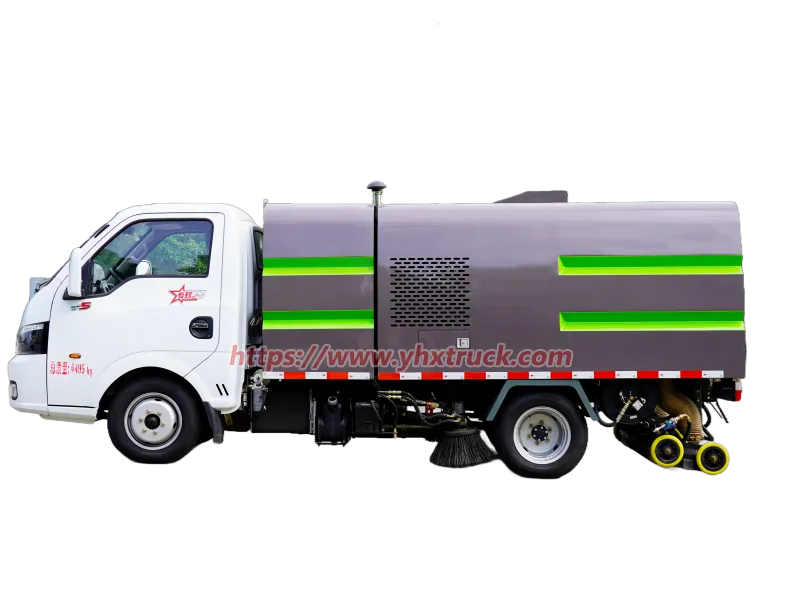

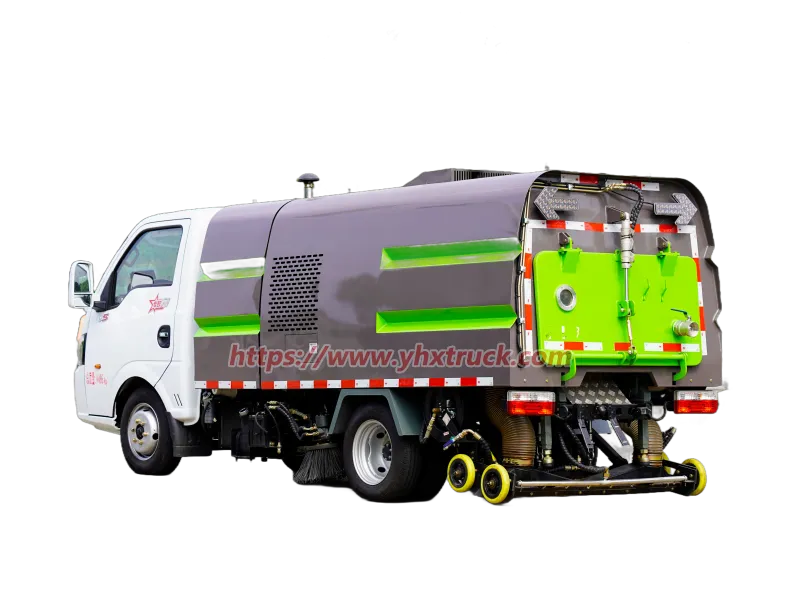

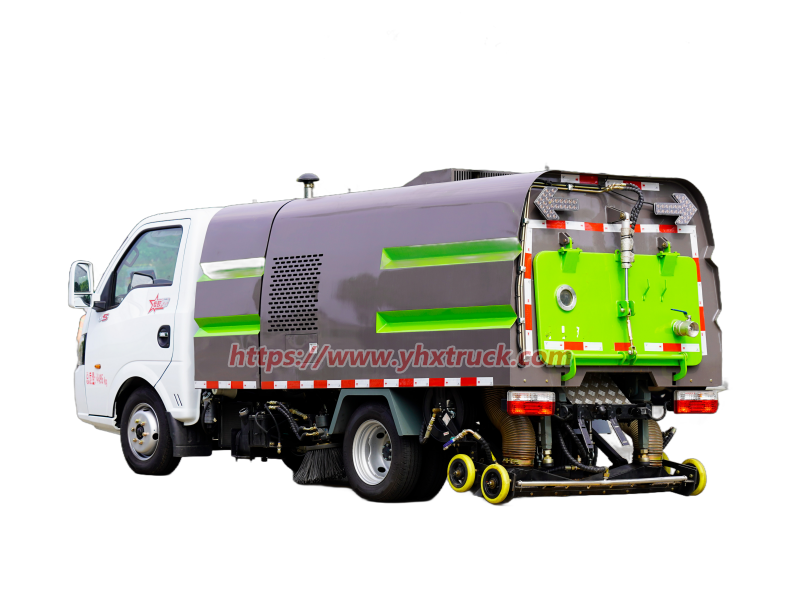

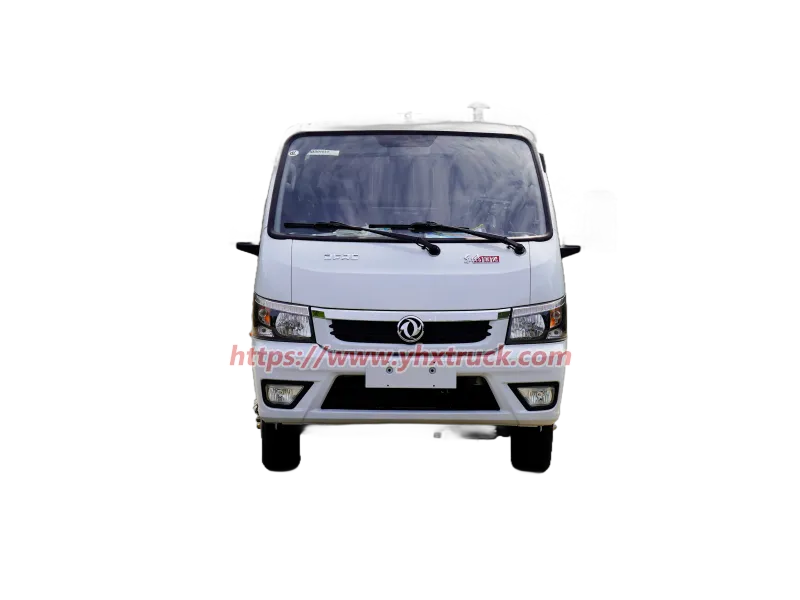

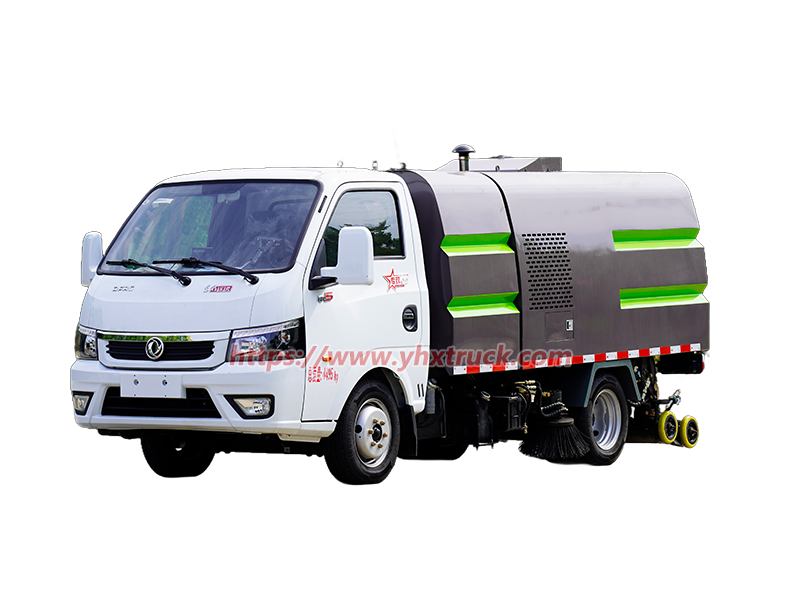

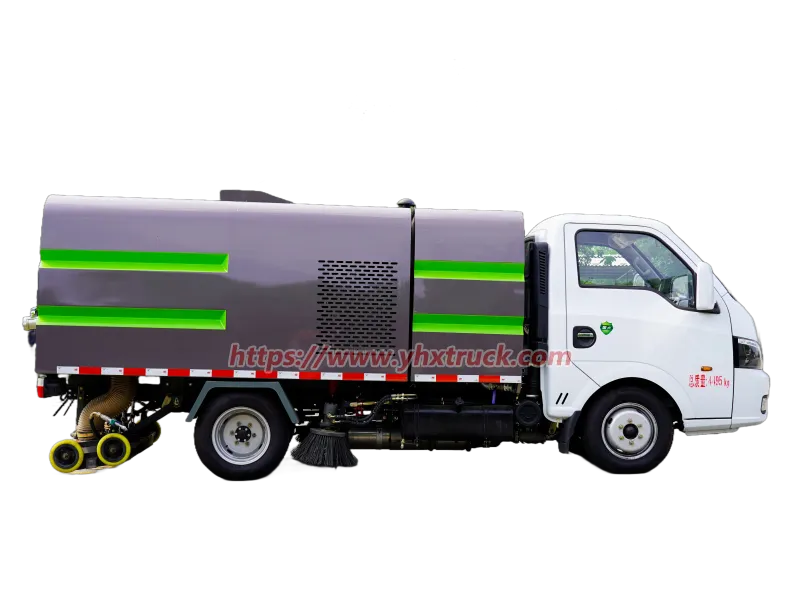

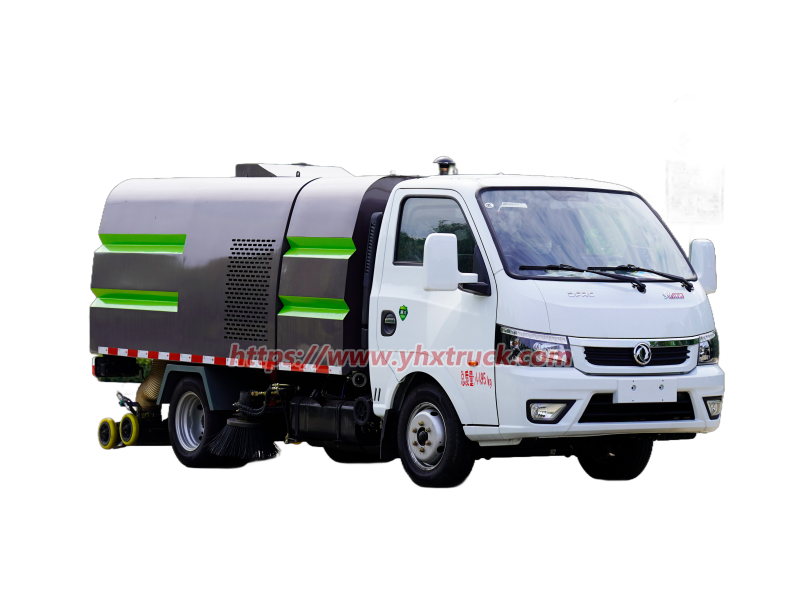

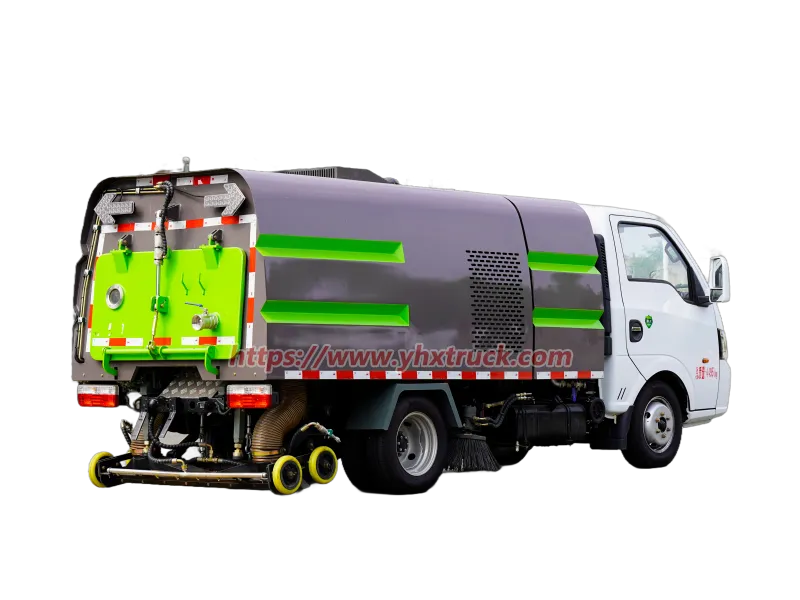

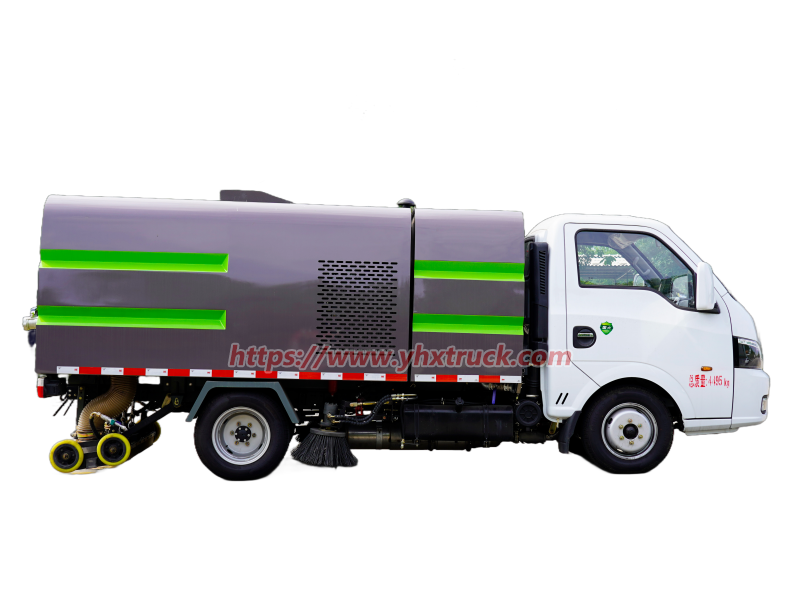

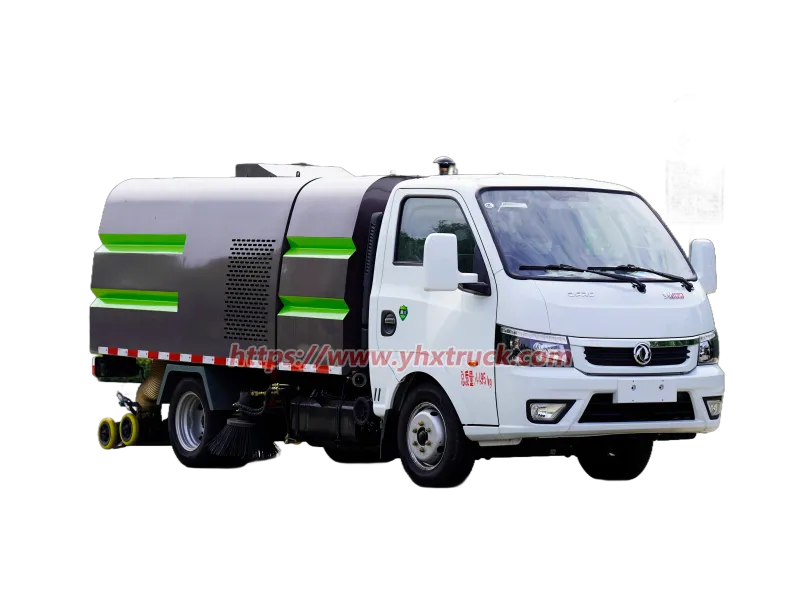

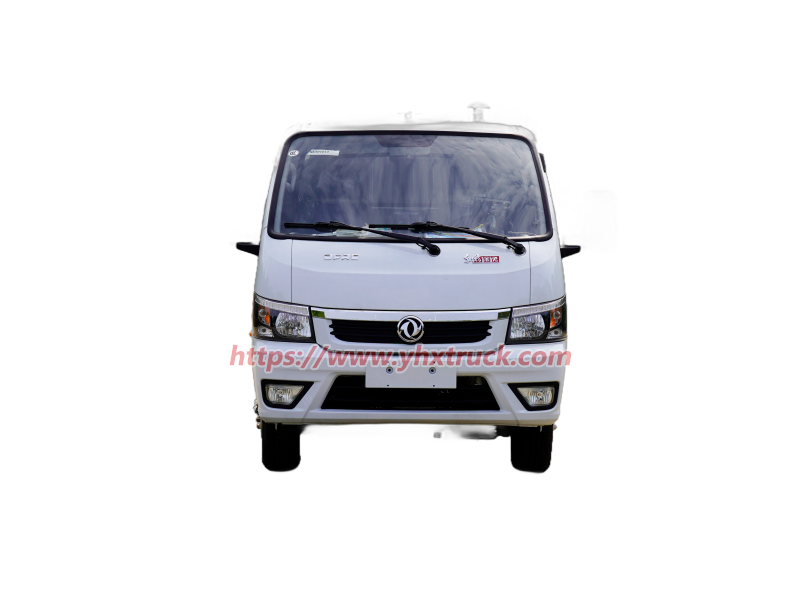

Dongfeng Tuyi Cleaning & Sweeping Vehicle Light Duty Road Cleaning Truck

WhatsApp：+86-18727988889

WhatsApp：+86-19171788596

Road Cleaning Truck
General	Chassis Brand	Dongfeng
	Overall Dimension	5210×1660×2190mm
	GVW / Kerb Weight	7000kg / 4000kg
Cab	Cab Capacity	2persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	QuanChai engine
	Power	95Ps/70kw
	Displacement	2300cc
	Emission Standard	Euro II
Chassis	Drive Type	4X2, left hand drive
	Transmission	5-speed forward & 1 reverse
	Wheelbase/No. of axle	3300 mm / 2
	Tyre Specification	7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Garbage TankCapacity	2.5cbm
Superstructure	Water Capacity	3000Liters
	Stainless steel clean water tank and stainless steel sewage garbage tank.
· Superstructurer	· Stainless steel clean water tank and stainless steel sewage garbage tank. · Two front sweeping discs and middle-mounted suction nozzle. · Haideruivo brand solenoid valve group and hydraulic cylinders. · Siemens control switches, PLC one-key intelligent control system and dual-direction operation buttons. · Sanyo drive motor. · Xiamen Nanchao maintenance-free automatic clutch. · Taiwan Xinfeng & Luoyang Beibo maintenance-free fan. · German Pinfu high-pressure water pump. · 20-meter high-pressure washing reel with supporting high-pressure water gun. · Hangzhou Weilong low-pressure water pump. · Pneumatic front flushing function. · High-pressure road edge cleaning function. · Garbage tank self-cleaning system. · Rear high-pressure spray dust suppression device. · Manual pump emergency operation system. · Water tank overflow prevention and low water level alarm device. · Sewage garbage tank overflow alarm device. · Multifunctional voice prompt system. · Right-side and rear working monitoring camera system. · Rear LED arrow warning lights.

View Less

1. Product Overview

Core Product Keywords: Dongfeng Tuyi washing and sweeping truck, 3.3CBM light duty road cleaner, Euro 6 narrow road sanitation vehicle, Dongfeng compact sanitation truck, PLC control pavement cleaning vehicle, multifunctional municipal sweeping lorry

Alternative Names: Dongfeng Tuyi Cleaning & Sweeping Vehicle, Euro 6 Light Duty Road Cleaning Truck, Compact Narrow Road Sanitation Sweeper, Dongfeng Mini High-pressure Road Washer, Urban Refined Cleaning Lorry

Brief Introduction

Dongfeng Tuyi Cleaning & Sweeping Vehicle Light Duty Road Cleaning Truck

Product Description

This Euro 6 light-duty washing and sweeping truck is built on a compact and flexible Dongfeng Tuyi chassis, specially designed for narrow road sanitation operations. It integrates road washing, mechanical sweeping and dust suppression functions in one unit, equipped with a 1000L clean water tank and a 2300L stainless steel sewage garbage tank, with a total 3.3CBM practical capacity. Fitted with a professional auxiliary power system, maintenance-free high-flow fan and high-efficiency high-pressure water pump, the truck features ultra-flexible maneuverability and stable cleaning performance, perfectly suitable for urban narrow streets, residential communities, parks, campus roads and industrial park fine cleaning work.

Core Functions

This all-in-one Dongfeng Tuyi sanitation vehicle focuses on urban refined sanitation, especially targeting cramped and complex road conditions that large sanitation trucks cannot access. It realizes integrated high-pressure washing, mechanical sweeping, curb edge cleaning and floating dust suppression, covering full-process automatic pavement cleaning. It solves long-standing cleaning dead corners of urban back streets and residential lanes, matching high-standard refined environmental protection requirements.

Adopting an independent professional auxiliary power system, the cleaning functional components will not consume chassis driving power, ensuring steady driving speed and consistent cleaning effect during continuous operation. Different from ordinary sweepers, it adopts middle suction nozzle structure, cooperating with built-in atomization system to achieve omnidirectional dust suppression.

It is equipped with mini split anticorrosive tank body, separating clean water and sewage storage to avoid secondary water pollution. Supported by intelligent PLC dual-direction one-key control system, operators can finish all cleaning operations easily without professional training, greatly lowering labor operation threshold.

Product Advantages

1. All-in-one Multifunctional Cleaning This Dongfeng Tuyi sanitation truck integrates high-pressure road washing, mechanical sweeping, curb cleaning and floating dust suppression. It supports three core working modes: full washing & sweeping, pure sweeping and low-pressure flushing, with a cleaning rate over 90%. It fully meets the refined cleaning demands of municipal narrow roads, residential areas and industrial zones.

2. Reliable Core Configuration & Stable Output Equipped with a dedicated professional auxiliary engine, matched with a high-flow maintenance-free fan and premium high-pressure water pump, the vehicle delivers strong suction power and stable high-pressure washing performance. It effectively removes road dust, sediment and light stubborn stains, adapting to frequent and fine cleaning operations in complex narrow road scenarios.

3. Compact & Lightweight Body Design Adopting a scientific mini split tank structure with a total 3.3CBM volume, the lightweight body complies with light-duty chassis load standards and blue-plate road traffic regulations. Featuring a short wheelbase and flexible turning radius, it easily passes narrow lanes and community roads. The stainless steel sewage tank supports hydraulic tipping discharge, with liquid level protection and self-cleaning functions to ensure smooth daily operation.

4. Low Operating Cost & Zero Secondary Pollution The optimized lightweight brush structure reduces daily wear and long-term maintenance costs. The height-adjustable middle suction nozzle and built-in atomization spray system effectively suppress flying dust during operation. No water accumulation or secondary pollution is left on site, achieving eco-friendly and clean construction.

5. Intelligent Operation & Wide Applicability Featured with a full hydraulic system and intelligent PLC one-key control system with dual-direction operation buttons, all cleaning procedures are simple and efficient to operate. With compact body, flexible movement, low failure rate and easy maintenance, this washing and sweeping truck is widely used for standardized refined sanitation work on urban back streets, communities, squares, park roads and industrial parks.

Structural Features

1. Original Dongfeng Tuyi lightweight chassis, short wheelbase design, ultra-small turning radius, outstanding trafficability for narrow roads 2. Mini split stainless steel tank, 1000L clean water tank + 2300L sewage tank, anticorrosive and rust-proof, long service life 3. Middle-mounted height-adjustable suction nozzle, no cleaning dead angle, matched with internal dust suppression atomization pipeline 4. Full hydraulic linkage system, stable discharge action, hydraulic tipping sewage unloading without leakage 5. Upgraded PLC dual-direction control panel, reversible operation buttons, suitable for left-hand and right-hand driving operation 6. Lightweight wear-resistant sweeping brush, reduce fuel consumption and daily spare parts cost

Technical Parameters

Item	Specification
Vehicle Brand	Dongfeng (Tuyi)
Emission Standard	Euro 6
Total Effective Volume	3.3CBM (1000L Water Tank + 2300L Sewage Tank)
Main Engine	Dongfeng Original Diesel Engine
Auxiliary Engine	Dedicated Sanitation Auxiliary Engine
Cleaning Supporting Parts	High-flow Maintenance-free Fan + High-efficiency High-pressure Water Pump
Cleaning Modes	Full Washing & Sweeping, Pure Sweeping, Low-pressure Flushing
Comprehensive Cleaning Rate	≥90%
Discharge Mode	Hydraulic Tipping Discharge + Tank Self-cleaning
Control System	Intelligent PLC One-key Control (Dual-direction Buttons)
Optional Configuration	LHD/RHD, Custom Painting, Adjustable Cleaning Pressure

2. Working Principle

The full operating system of 3.3CBM Dongfeng Tuyi Cleaning & Sweeping Vehicle consists of four linkage modules: Dongfeng Tuyi lightweight chassis driving system, independent sanitation auxiliary power system, hydraulic cleaning execution system and PLC intelligent control system.

After vehicle ignition, the original Dongfeng main chassis provides traveling power, while the dedicated auxiliary engine independently supplies power for all cleaning accessories. This separated power design avoids power shunting, guarantees stable driving speed and lasting cleaning efficiency during long-hour refined cleaning.

Operators switch working modes via dual-direction PLC control panel according to road conditions. Under full washing & sweeping mode, the high-pressure water pump extracts clean water from the 1000L water tank to rinse pavement and curb stains; the optimized lightweight sweeping brush gathers road dust and sediment, then the high-flow fan generates negative pressure, and the height-adjustable middle suction nozzle absorbs all sewage and sundries into the sealed 2300L stainless steel sewage tank. Under pure sweeping mode, the water supply system stops operation to save water consumption, only finishing dry dust collection. Under low-pressure flushing mode, the atomization system sprays fine water mist to eliminate floating dust efficiently.

Built-in atomization structure cooperates with middle suction nozzle to block flying dust completely and avoid secondary pollution. After daily operation, the hydraulic system pushes the sewage tank to tip and discharge waste materials. Meanwhile, the tank self-cleaning function activates automatically to wash internal sediment, realizing full-automatic, low-carbon and eco-friendly cleaning circulation.

3. Daily Application Scenarios

Municipal Narrow Road Sanitation: Urban back streets, branch lanes, sidewalks, narrow downtown roads daily washing, sweeping and curb stain removal
Residential Property Sanitation: High-density residential community internal roads, residential plazas, garage passages, green belt surrounding pavement cleaning
Campus Scenarios: Primary and secondary school internal roads, university campus lanes, campus square refined environmental cleaning
Public Leisure Venues: Urban parks, botanical gardens, cultural scenic areas narrow pedestrian roads daily maintenance
Industrial Park Cleaning: Small and medium-sized industrial parks, logistics zones internal narrow passages, factory perimeter road dedusting and washing








4. Comparison with Traditional Sanitation Vehicles

Vs Heavy-duty Washing & Sweeping Trucks: Large sanitation trucks have bulky body, large turning radius and traffic restrictions on urban narrow roads, unable to enter communities and campuses. This Dongfeng Tuyi lightweight truck owns flexible steering and blue-plate accessibility, covering all cramped cleaning scenarios with lower fuel cost.

Vs Ordinary Mini Road Sweepers: Most small sweepers only support dry sweeping, lacking high-pressure washing function, and cannot clear road bonded stains. This Dongfeng Tuyi vehicle integrates washing, sweeping and dust suppression, equipped with sealed sewage storage tank to prevent sewage leakage.

Vs CAN-bus Control Sanitation Trucks: Traditional CAN bus control system has complicated operation steps, high learning cost for workers. This truck adopts upgraded PLC dual-direction one-key control, simpler logic, lower failure rate, more suitable for long-term repetitive sanitation work.

Vs Modified Refitted Cleaning Vehicles: Post-refitted sanitation trucks have mismatched tank volume and unstable dust suction effect, without liquid level protection and self-cleaning function. This factory-integrated Dongfeng Tuyi vehicle adopts matched mini split tank, complete safety configuration and stable overall performance.

Road Cleaning Truck
General	Chassis Brand	Dongfeng
	Overall Dimension	5210×1660×2190mm
	GVW / Kerb Weight	7000kg / 4000kg
Cab	Cab Capacity	2persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	QuanChai engine
	Power	95Ps/70kw
	Displacement	2300cc
	Emission Standard	Euro II
Chassis	Drive Type	4X2, left hand drive
	Transmission	5-speed forward & 1 reverse
	Wheelbase/No. of axle	3300 mm / 2
	Tyre Specification	7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Garbage TankCapacity	2.5cbm
Superstructure	Water Capacity	3000Liters
	Stainless steel clean water tank and stainless steel sewage garbage tank.
· Superstructurer	· Stainless steel clean water tank and stainless steel sewage garbage tank. · Two front sweeping discs and middle-mounted suction nozzle. · Haideruivo brand solenoid valve group and hydraulic cylinders. · Siemens control switches, PLC one-key intelligent control system and dual-direction operation buttons. · Sanyo drive motor. · Xiamen Nanchao maintenance-free automatic clutch. · Taiwan Xinfeng & Luoyang Beibo maintenance-free fan. · German Pinfu high-pressure water pump. · 20-meter high-pressure washing reel with supporting high-pressure water gun. · Hangzhou Weilong low-pressure water pump. · Pneumatic front flushing function. · High-pressure road edge cleaning function. · Garbage tank self-cleaning system. · Rear high-pressure spray dust suppression device. · Manual pump emergency operation system. · Water tank overflow prevention and low water level alarm device. · Sewage garbage tank overflow alarm device. · Multifunctional voice prompt system. · Right-side and rear working monitoring camera system. · Rear LED arrow warning lights.

5. Buying Guide

For overseas municipal sanitation bureaus, property management groups, campus logistics departments, industrial park operators and environmental protection contractors, confirm core configurations before cross-border procurement:

Genuine Dongfeng Tuyi Light-duty Chassis: Adopt original mass-produced Dongfeng Tuyi chassis, official Euro 6 emission certification, complete export customs clearance documents, flexible lightweight design, global spare parts supply guarantee.

Standard 3.3CBM Split Tank Configuration: Standard 1000L clean water tank + 2300L anticorrosive stainless steel sewage tank, equipped with liquid level overflow protection and automatic tank self-cleaning system, avoid operation failure and environmental leakage risk.

Specialized Sanitation Supporting Parts: Dedicated independent auxiliary engine, maintenance-free fan and high-efficiency imported high-pressure water pump, durable core components, low overseas after-sales maintenance difficulty.

Customized Export Service: Optional LHD/RHD steering adaptation, customized body color and spraying logo; provide full set of inspection, emission and bidding certificates, support government sanitation procurement projects.

6. Operation and Maintenance Tips

6.1 Daily Operation Specifications

Check Dongfeng Tuyi chassis running condition and auxiliary engine oil level before startup, verify sewage tank liquid level protection device works normally
Test PLC dual-direction control buttons, pre-run high-pressure water pump and suction fan to confirm synchronous linkage
Fill clean water reasonably according to cleaning distance, avoid overloading or insufficient water volume affecting working efficiency
Forbid absorbing large hard gravel and viscous industrial sludge to prevent middle suction nozzle and water pump blockage
Slow driving speed while passing narrow lanes and campus passages, prevent vehicle scratching and missing cleaning area
Finish sewage discharging and start tank self-cleaning procedure after daily work to reduce internal dirt adhesion

6.2 Regular Maintenance Advice

Inspect lightweight sweeping brush abrasion every two weeks, replace worn brush pieces moderately to cut long-term operating cost
Clean high-pressure water pipeline and atomization nozzle filter monthly to prevent blockage and dust suppression failure
Calibrate PLC intelligent control system quarterly to ensure sensitive one-key mode switching
Check hydraulic tipping sealing parts regularly to avoid sewage leakage during discharging
Maintain main engine and sanitation auxiliary engine separately following Dongfeng official maintenance manuals
Clean sewage tank sediment regularly to extend stainless steel tank service life

7. Frequently Asked Questions

Q1: Standard export product name

A1: Dongfeng Tuyi 3.3CBM Cleaning & Sweeping Vehicle, Euro 6 Light Duty Road Cleaning Truck, Compact Narrow Road Municipal Sanitation Sweeper

Q2: What is the total tank capacity configuration?

A2: It adopts scientific mini split tank structure, total 3.3CBM practical capacity, including 1000L independent clean water tank and 2300L sealed stainless steel sewage garbage tank.

Q3: What is the difference between PLC control and ordinary CAN bus control?

A3: This vehicle adopts upgraded PLC dual-direction control with reversible operation buttons, simpler operation logic, lower failure rate and stronger environmental adaptability, more friendly for novice operators, compared with complicated CAN bus system.

Q4: What is the biggest applicable advantage of this truck?

A4: Ultra-compact lightweight body and flexible turning radius, compliant with blue-plate traffic rules. It can enter narrow urban lanes, closed campuses and residential communities that heavy sanitation trucks cannot reach, solving refined cleaning dead corners.

Q5: Is the vehicle qualified for global export?

A5: Yes. The whole vehicle complies with official Euro 6 emission standard, we provide complete export certification, emission test report and customs clearance documents, suitable for Asia, Europe, Middle East and African sanitation procurement.

Conclusion

3.3CBM Dongfeng Tuyi Light Duty Cleaning & Sweeping Vehicle is an economical and practical Euro 6 export-grade sanitation vehicle, specially customized for urban narrow-road refined cleaning scenarios. Built on mature and reliable Dongfeng Tuyi lightweight chassis, the vehicle meets international emission and traffic regulations, breaking the traffic limitation of large sanitation trucks.

Integrating road washing, mechanical sweeping and dust suppression functions, equipped with dedicated auxiliary power and anticorrosive split tank, this sanitation truck reaches over 90% cleaning rate. The optimized lightweight brush and PLC dual-direction intelligent control greatly reduce daily operation and maintenance cost, with zero secondary dust pollution during construction. Covering municipal back streets, residential communities, campuses and industrial parks, this flexible, easy-operated and emission-compliant Dongfeng Tuyi sweeper is the preferred cost-effective sanitation equipment for overseas refined urban environmental governance projects.
